Elko

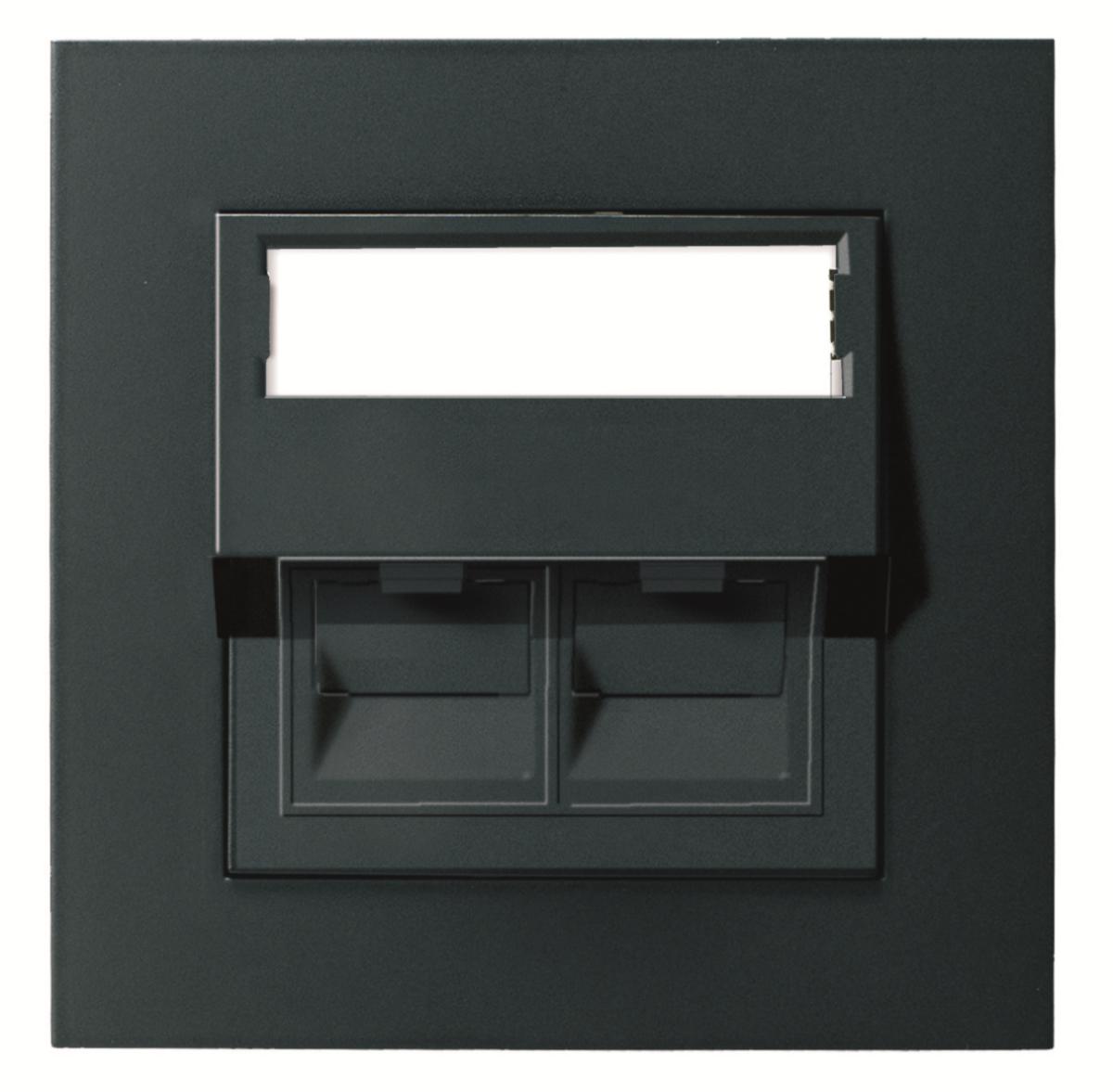

Modular socket angled TL UTP C6 Plus, Elko
SOCKET 1X8 UTP C6 TL SV PLUS 5567
Article number: Suppl. article no:
5105380
EKO05567
to see price and stock
Modular Output TL UTP C6 in complete output kits consisting of unshielded modular jacket TCS ToolLess, straight centre plate and frame. Simple, tool-less contacting. Can be contacted in accordance with 568A or 568B. Jacket snaps directly in the centre plate. The modular outlet has been designed and developed in accordance with SS-EN 50173 series, and is part of the warranty system ELKO TCS. Assembly depth 30 mm.
- Article number: 5105380
- Suppl. article no: EKO05567
- Ean no: 7020160556707
- Material class QR3100
Technical data
- Packagin Size: 1 PCS/5 PCS/25 PCS
- Product series: Plus
- Suitable for number of connectors: 1
- Type of connector: RJ45 8(8)
- With buses/couplings: Yes
- Category: 6
- Colour: Black
- Outlet direction: Inclined
- Shielded buses: No
- Compatible with third-party covers: Yes
- With dust cover: Yes
- Colour coding: Yes
- With label space: Yes
- Separate strain relief: No
- Degree of protection (IP): IP20
- Type of fastening: Engage (snap)
- Shielded housing: No
- Surface mounting: No
- REACH Date: 2022-08-09
- Type: EKO05567
- REACH Information obligation: No
