Elko

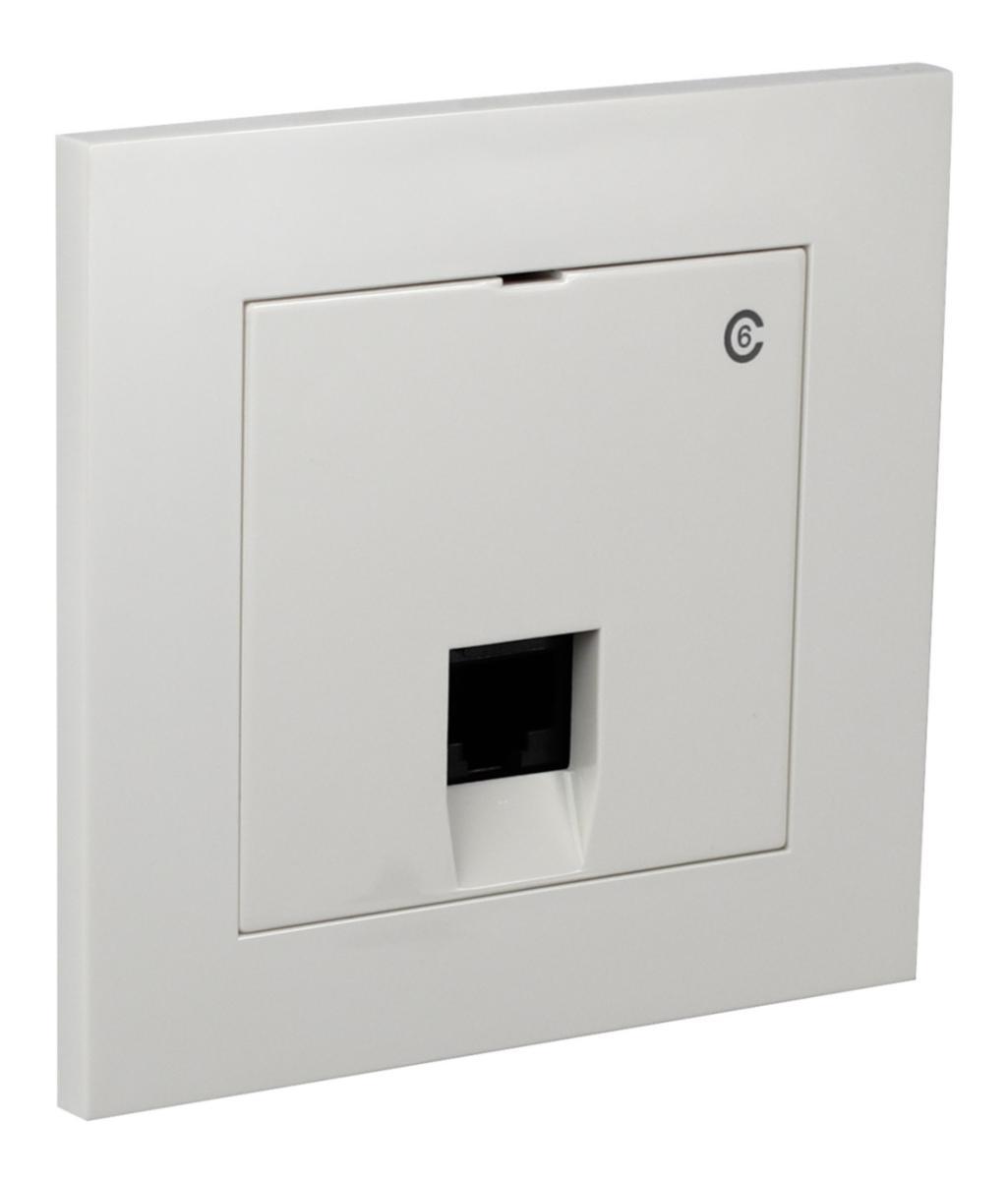

Modular socket straight UTP C6 Plus, Elko
PLUS 1XRJ45/UTP/KAT.6 F PW RECESSED
Article number: Suppl. article no:
5105323
EKO04817
to see price and stock
Complete modular sockets UTP C6 in the Plus series. Connection of the leads is by slotted contacts type LSA. The modular outlet has been developed and designed in accordance with SS-EN 50173 series and is part of the warranty system ELKO TCS C6. Suitable for device boxes with fixed screw distance of 60mm and together with ELKO’s combination frames. With external mounting, use ELKO’s extension frames. Assembly depth unshielded 17 mm.
- Article number: 5105323
- Suppl. article no: EKO04817
- Ean no: 7020160481702
- Material class QR3100
Technical data
- Packagin Size: 1 PCS/50 PCS
- Product series: RS
- Suitable for number of connectors: 1
- Type of connector: RJ45 8(8)
- With buses/couplings: Yes
- Category: 6
- Colour: White
- Outlet direction: Straight
- RAL-number: 9010
- Shielded buses: No
- Compatible with third-party covers: Yes
- With dust cover: No
- Colour coding: Yes
- Floor box/subfloor mounted: Yes
- Duct installation: Yes
- With label space: Yes
- Mounting method shielding connection: Screw
- Separate strain relief: No
- Separate earthing connection: Yes
- Degree of protection (IP): IP20
- Type of fastening: Screwing
- Shielded housing: No
- Surface mounting: No
- Device width: 86 mm
- Device height: 86 mm
- Device depth: 17 mm
- Flush-mounted installation: Yes
- With terminal resistor: No
- Connection type: LSA
- REACH Date: 2022-08-09
- Type: EKO04817
- REACH Information obligation: No
