Schneider Electric

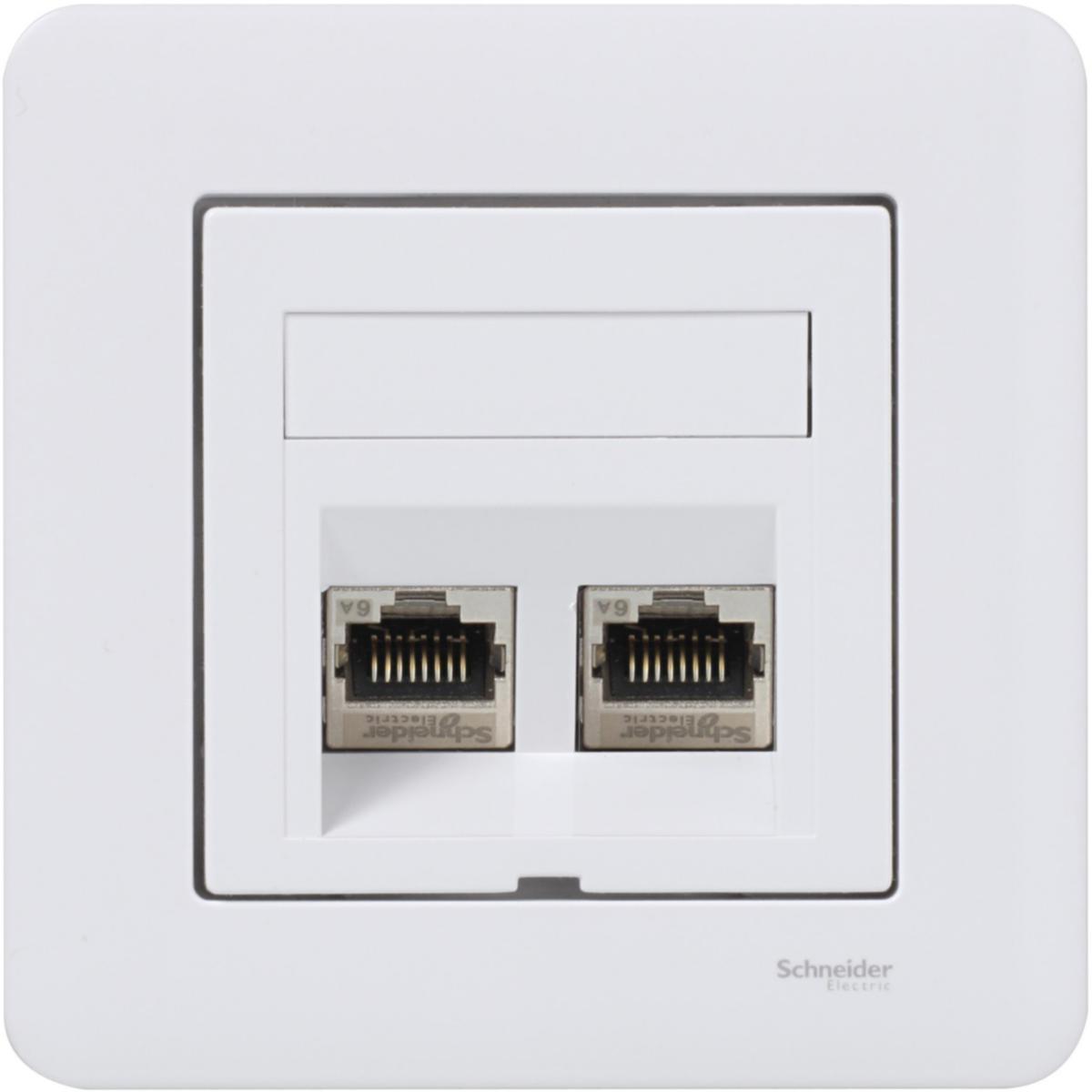

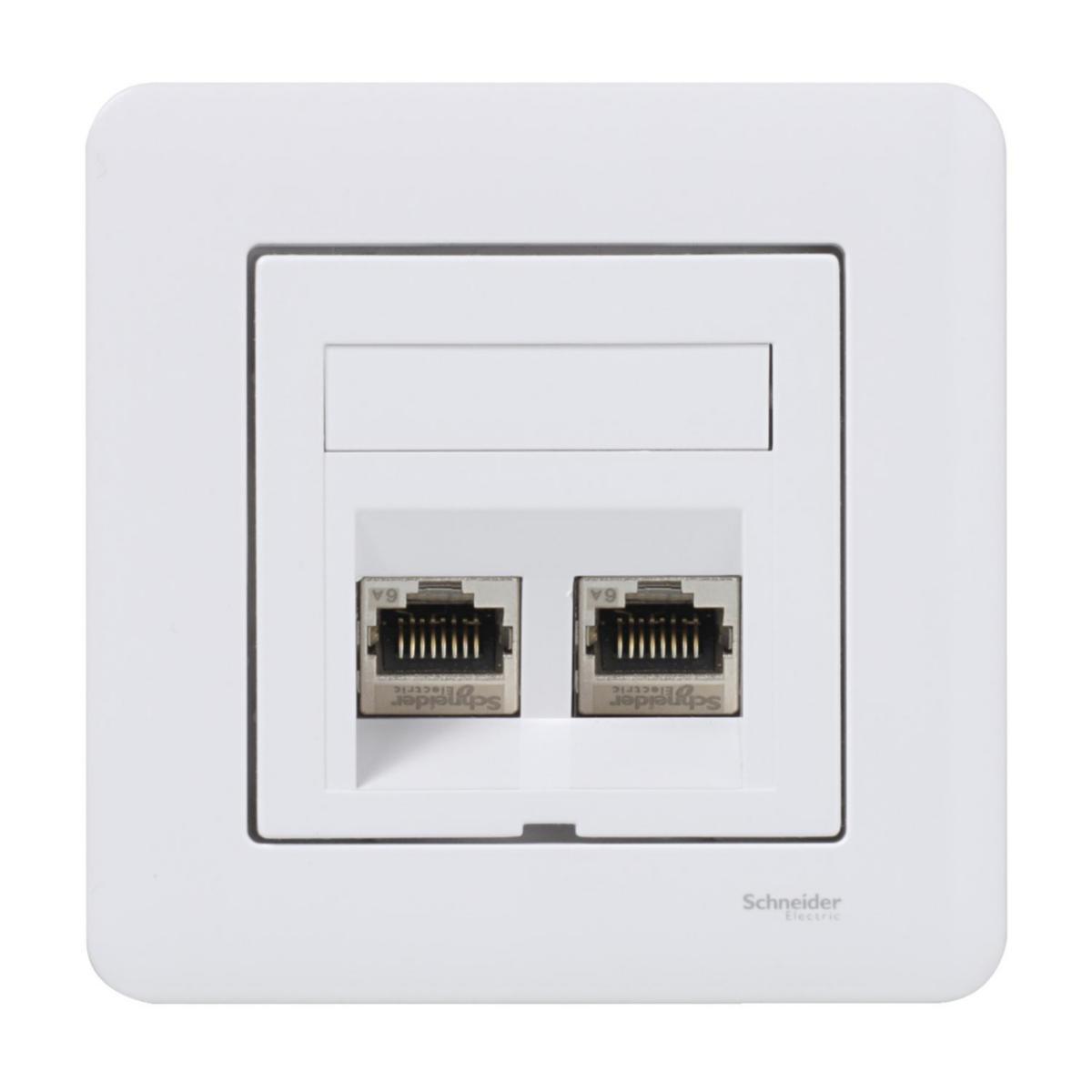

Complete module socket Exxact 2xC6A STP, Schneider
MOD-PL EXX RAM 2XK6ASTP VI WH WDE002438 VINKLAD
Article number: Suppl. article no:
5102699
WDE002438
to see price and stock
Data output Exxact Cat 6A STP in straight or curved design, with or without frame. The connection kit contains 2 pcs Kat 6A STP S-One modular jack, 60 pcs plate support frame for apparatus box c / c 1 mm, 1 pcs white flat / straight centre plate with dust traps or 1 pcs white curved centre plate.
- Article number: 5102699
- Suppl. article no: WDE002438
- Ean no: 3606480910401
- Material class QR3000
Technical data
- Product series: Actassi
- Suitable for number of connectors: 2
- Type of connector: Other
- With buses/couplings: Yes
- Category: 6
- Colour: White
- Assembly arrangement: Basic element with full cover plate
- Outlet direction: Inclined
- Shielded buses: No
- Compatible with third-party covers: Yes
- With dust cover: No
- Colour coding: Yes
- Floor box/subfloor mounted: No
- Duct installation: Yes
- With label space: Yes
- Mechanical coding: No
- Mounting method shielding connection: None
- Separate strain relief: No
- Separate earthing connection: No
- Degree of protection (IP): IP20
- Type of fastening: Screwing
- Shielded housing: No
- Surface mounting: No
- Device width: 86 mm
- Device height: 86 mm
- Device depth: 35 mm
- Connection type: Other
- REACH Date: 2022-07-20
- Type: WDE002438
- REACH Information obligation: No
