AhlsellProductsElectricTelecoms, Data, Security 50-6351 Network material for dataComplete sockets with module socketConnection kits with modular socket
Schneider Electric

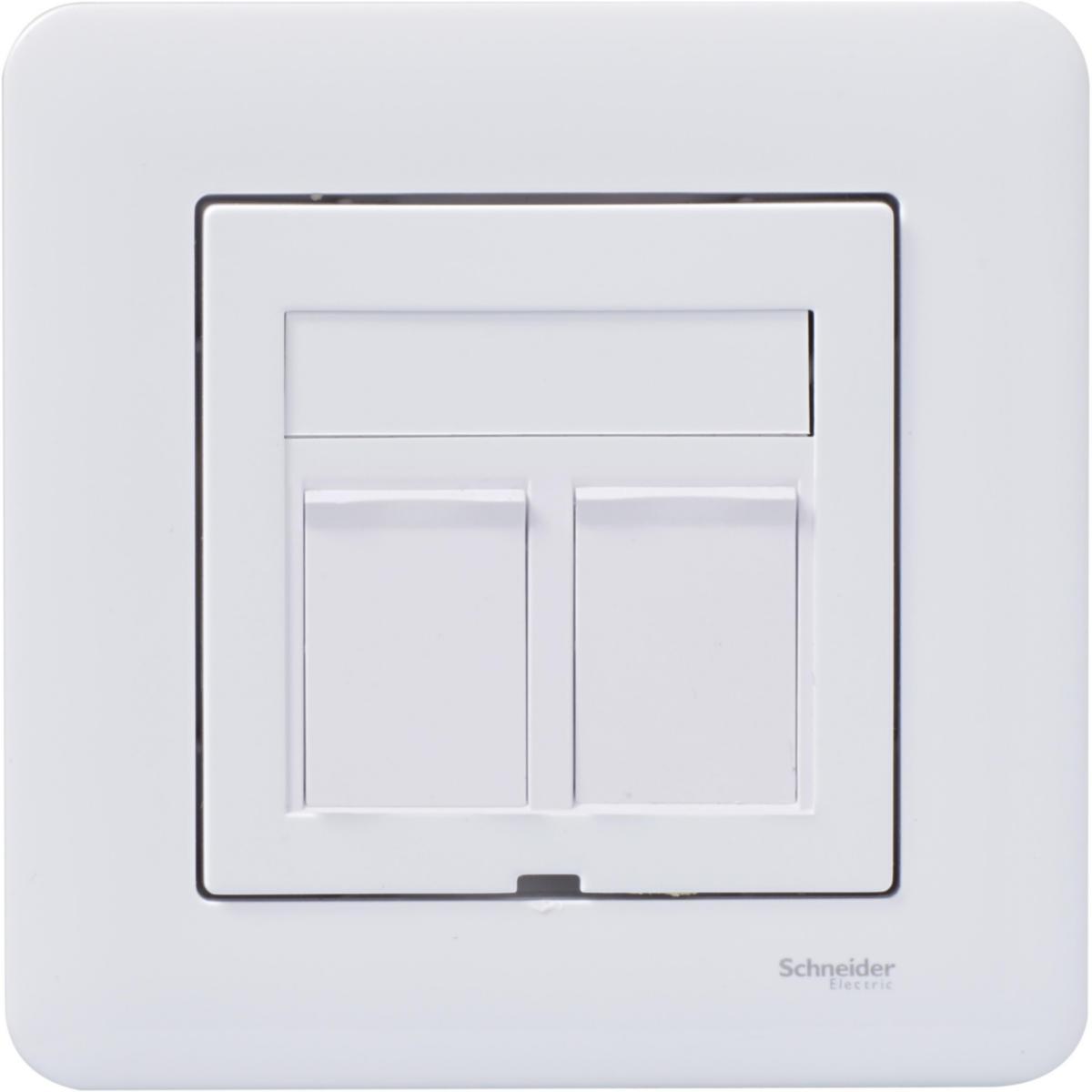

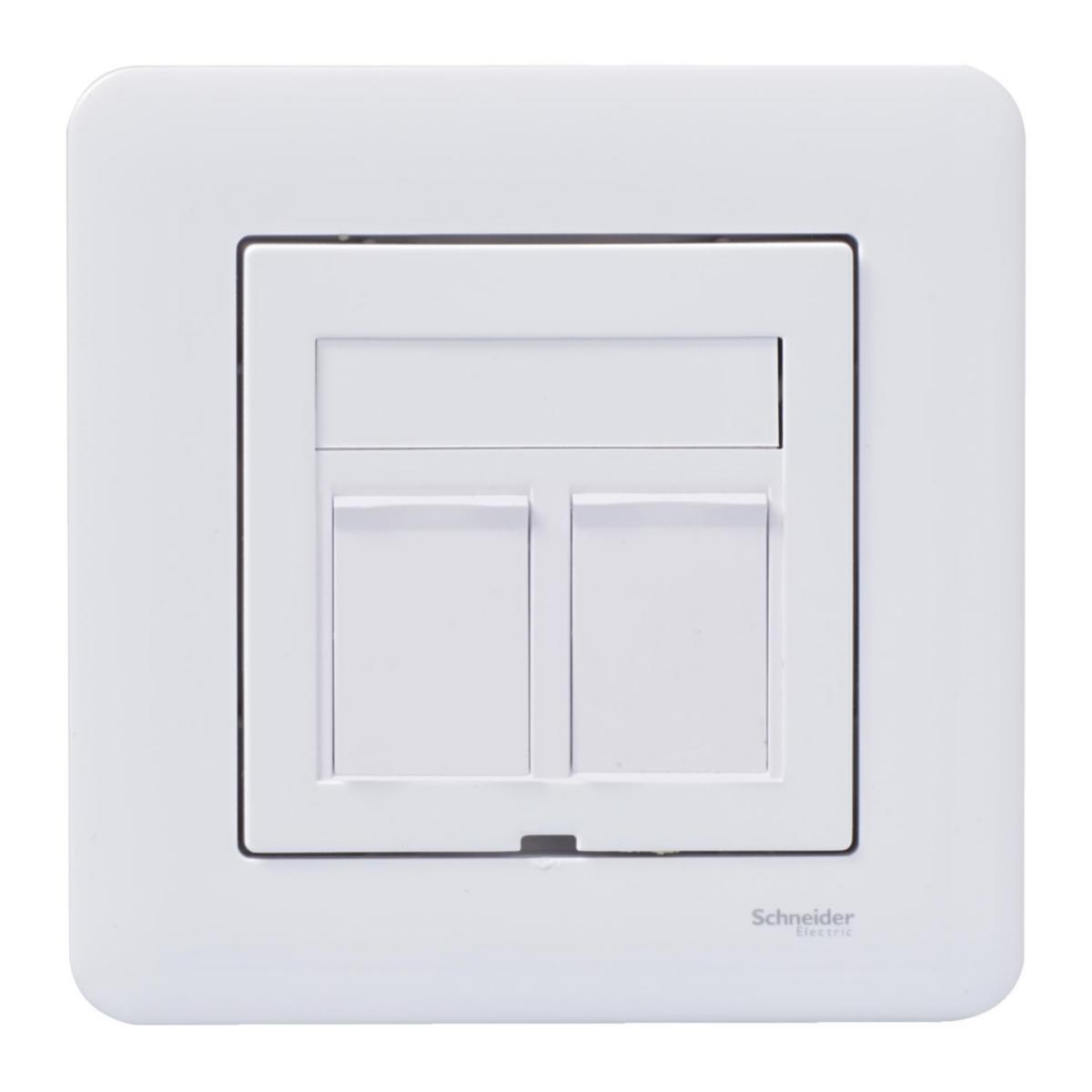

Complete module socket Exxact 2xC6 UTP, Schneider
MOD-PL EXXA RAM 2XK6PLP PL WH WDE002424 RAK
Article number: Suppl. article no:
5102696
WDE002424
to see price and stock
Data output Exxact Cat 6 UTP in straight or curved design, with or without frame. The connection kit contains 2 pcs Kat 6 UTP S-One modular jack, 1 pcs plate support frame for apparatus box c / c 60 mm, 1 pcs white flat / straight centre plate with dust traps or 1 pcs white curved centre plate.
- Article number: 5102696
- Suppl. article no: WDE002424
- Ean no: 3606480910333
- Material class QR3000
Technical data
- Packagin Size: 1 PCS/5 PCS/60 PCS
- Type: WDE002424
- Product series: Actassi
- Suitable for number of connectors: 2
- Type of connector: RJ45 8(4)
- With buses/couplings: Yes
- Category: 6
- Colour: White
- Assembly arrangement: Basic element with full cover plate
- Outlet direction: Straight
- Shielded buses: No
- Compatible with third-party covers: Yes
- With dust cover: Yes
- Colour coding: Yes
- Floor box/subfloor mounted: No
- Duct installation: Yes
- With label space: Yes
- Mechanical coding: No
- Mounting method shielding connection: None
- Separate strain relief: No
- Separate earthing connection: No
- Degree of protection (IP): IP20
- Type of fastening: Screwing
- Shielded housing: No
- Surface mounting: No
- Device width: 86 mm
- Device height: 86 mm
- Device depth: 35 mm
- Connection type: Other
- REACH Date: 2022-07-20
- Design: With frame, straight
- REACH Information obligation: No
