Schneider Electric
Modular socket Exxact with modular jack S-One
C-PLATE ANGLED S1/KEYST C6 PLP WDE002428
Article number: Suppl. article no:
5102692
WDE002428
to see price and stock

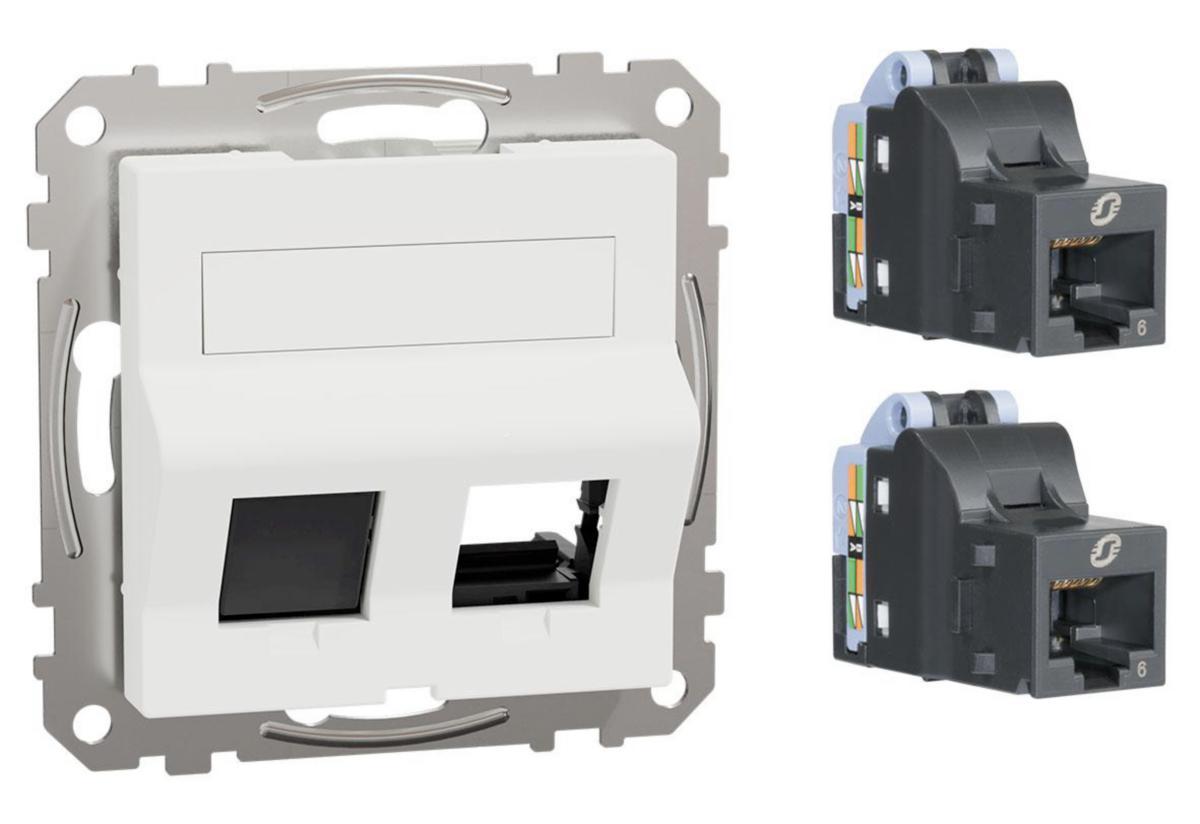

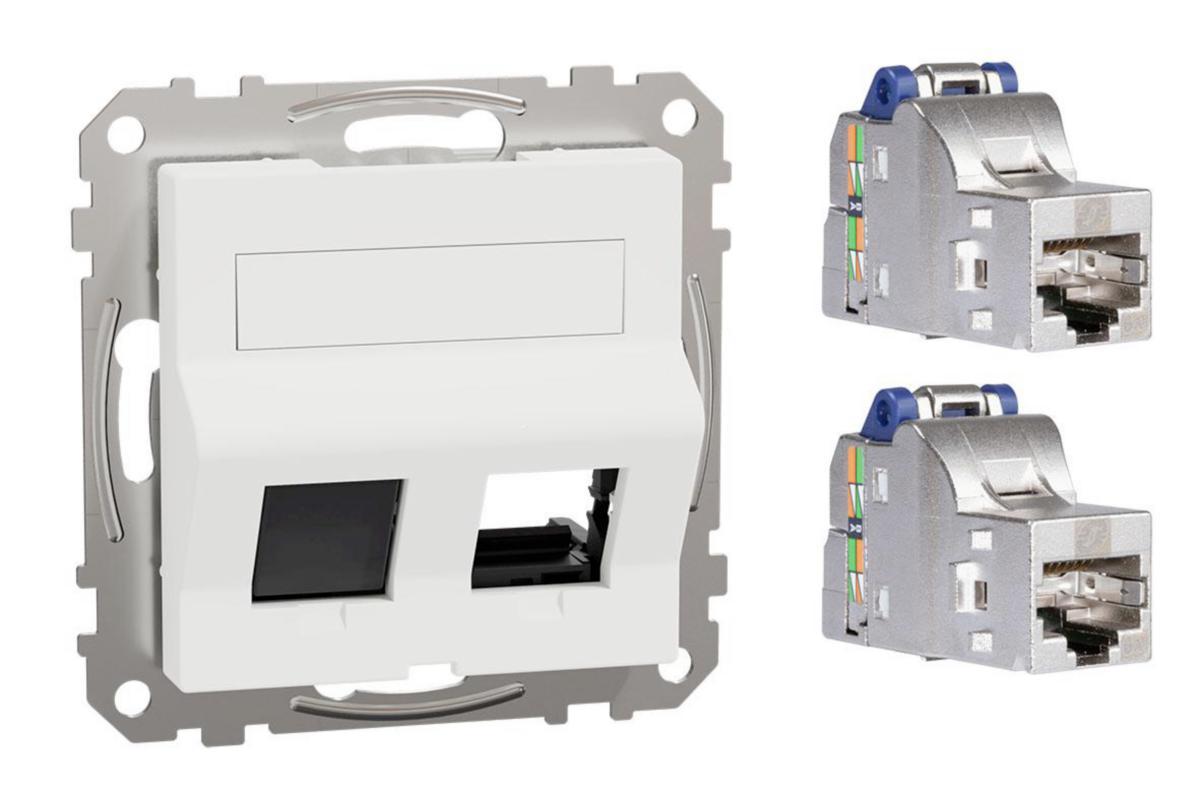

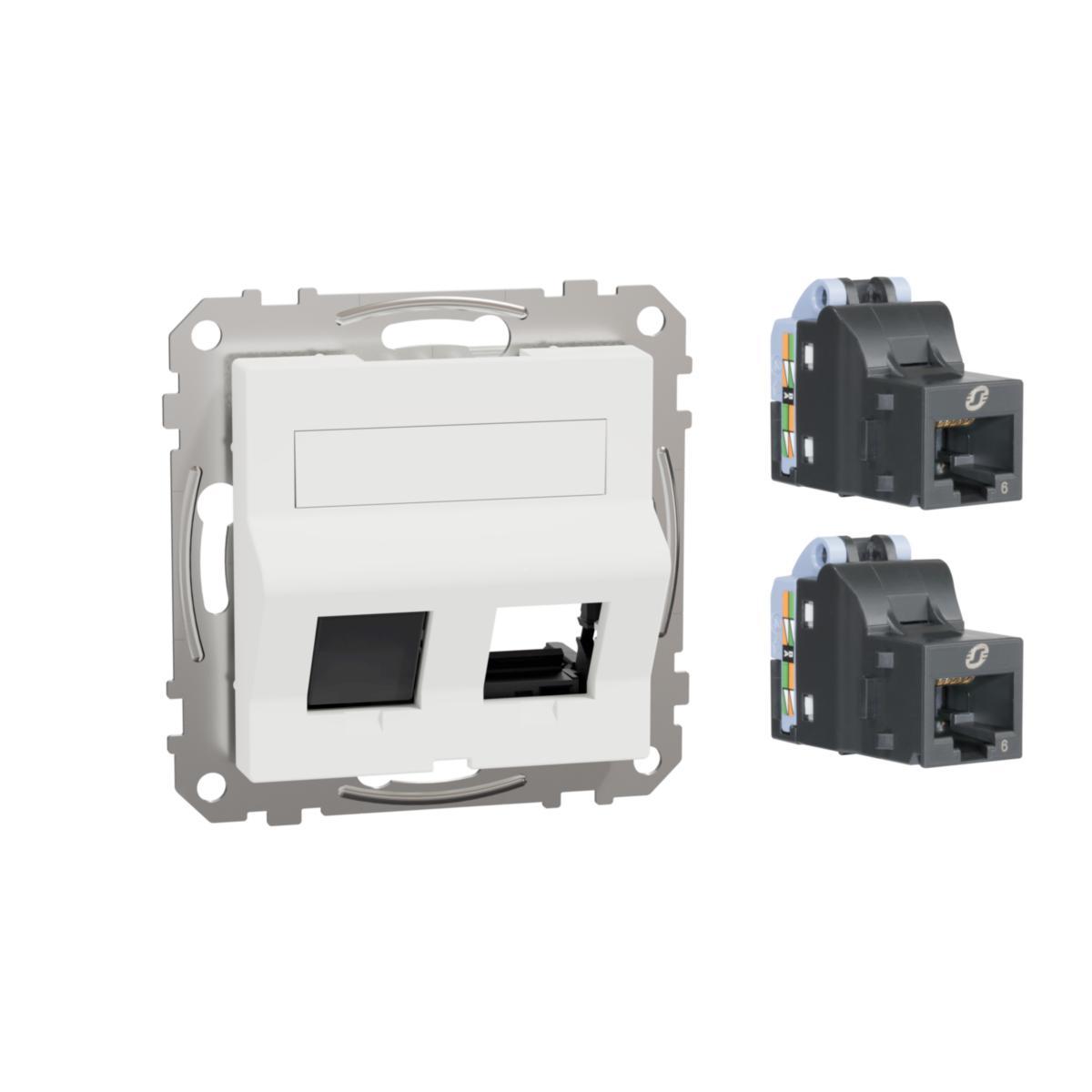

Angled center plate with 2x Actassi S-One DPM modular jack. Mounting in device box cc 60mm or surface-mounted in box minmum 33mm for Kat 6 UTP and preferably 47mm for STP. Adjustable nameplate with three sides; glossy, text and color coding. Supplemented with Exxact frame.
- Article number: 5102692
- Suppl. article no: WDE002428
- Ean no: 3606480910340
- Material class QR3000
Technical data
- Packagin Size: 1 ST/12 ST
- Suitable for number of connectors: 2
- Type of connector: 2x RJ45 8(8)
- With buses/couplings: Yes
- Category: 6
- Colour: White
- Assembly arrangement: Central cover plate
- Outlet direction: Inclined
- RAL-number: 9003
- Shielded buses: No
- Compatible with third-party covers: Yes
- With dust cover: No
- Colour coding: Yes
- Floor box/subfloor mounted: No
- Duct installation: No
- With label space: Yes
- Mechanical coding: No
- Mounting method shielding connection: None
- Separate strain relief: No
- Separate earthing connection: No
- Degree of protection (IP): IP20
- Type of fastening: Screwing
- Shielded housing: No
- Surface mounting: No
- Device width: 55 mm
- Device height: 55 mm
- Device depth: 20 mm
- Connection type: Insulation displacement connector
- REACH Date: 2022-07-20
- REACH Information obligation: No
