ABB

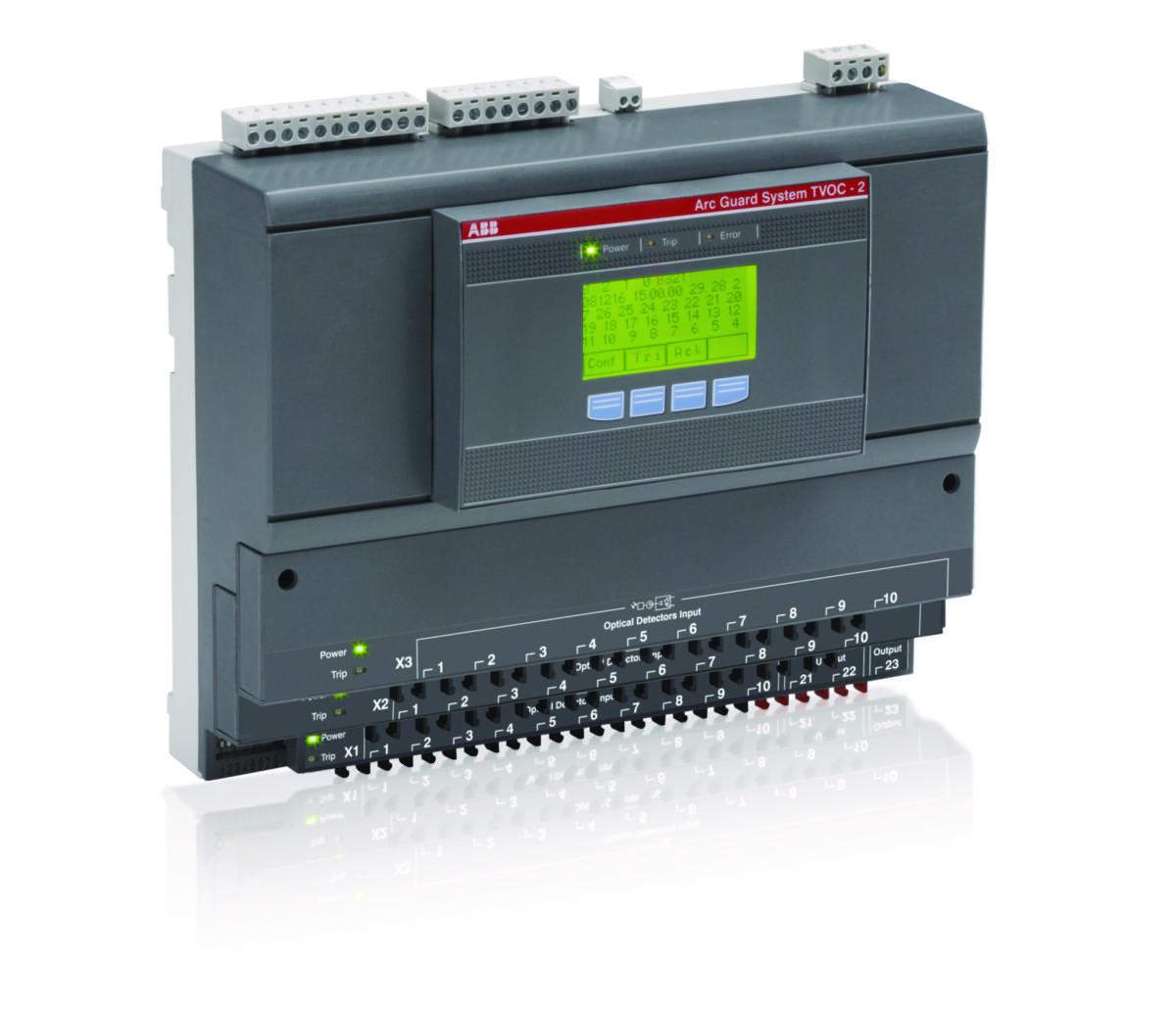

Arc detector type TVOC-2
ARC MONITOR TVOC-2-240
Article number: Suppl. article no:
2801705
1SFA664001R1001
to see price and stock
The electric arc guard gives extra protection for scaffolding in case of an electric arc short circuit. It ensures that the main circuit breaker trips fast in order to minimise the damages. With TVOC-2 we have combined experience from previous models and also added several functions. TVOC-2 is classified up to SIL 2 and can be extended in order to be able to handle 30 x detector inputs. The display can be installed on the electric arc guard or in the door of the compartment. For more information, see www.abb.se/lagspanning.
- Article number: 2801705
- Suppl. article no: 1SFA664001R1001
- Ean no: 7320500382172
- Replaces art.nbr: 2801700
- Material class QM890A
Technical data
- Type: TVOC-2
- Mounting method: Surface mounting
- Width: 210 mm
- Depth: 80 mm
- Height: 230 mm
- Number of inputs: 12
- Number of contacts as normally open contact: 3
- Number of contacts as change-over contact: 3
- Rated control supply voltage AC 50 Hz: 100-240 V
- Rated control supply voltage AC 60 Hz: 100-240 V
- Rated control supply voltage DC: 100-240 V
- Voltage type for actuating: AC/DC
- Type of electric connection: Screw connection
- REACH Date: 2023-01-18
- Number of switch outputs: 1
- REACH Information obligation: No
