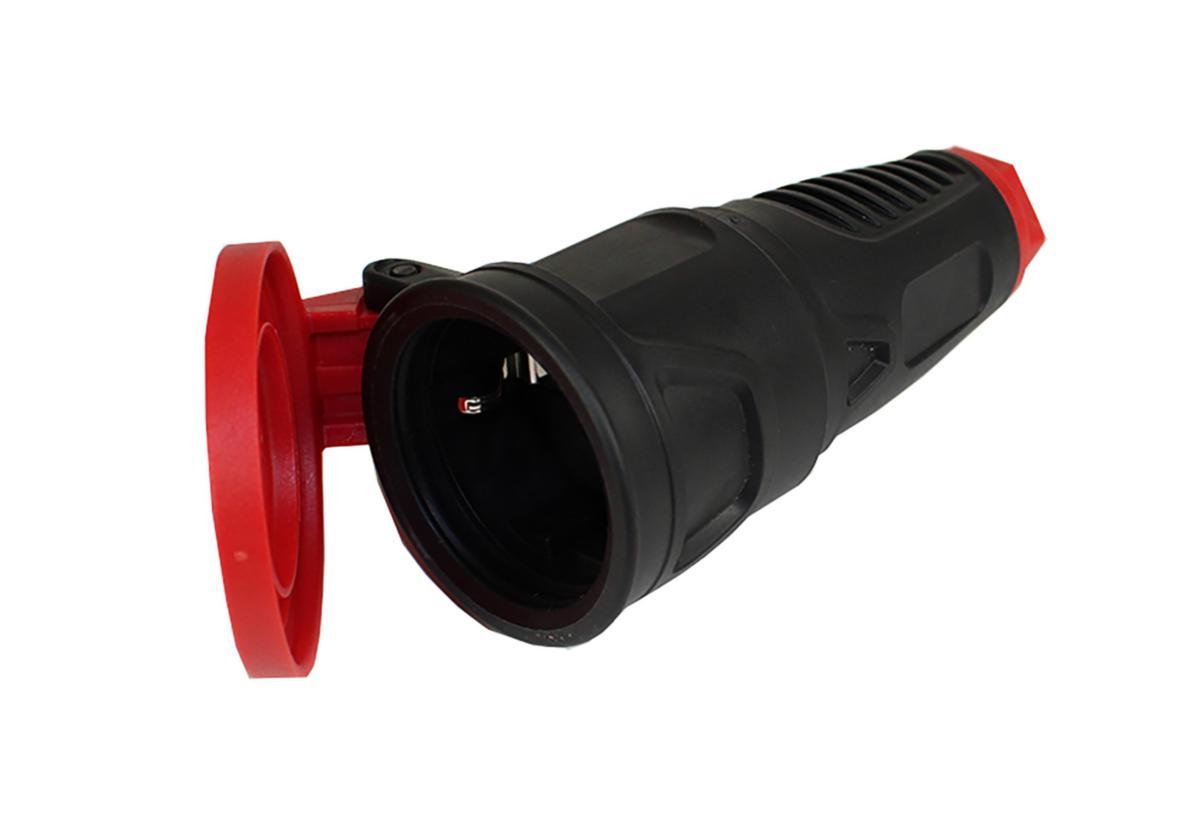

Joint socket Solid, 16A
CONNECTOR 16A 3P R W LID IP54 CRWL – 216
Article number: Suppl. article no:
2405261
109739
to see price and stock
Joint socket Solid that is available to choose with or without a lid and is a tough and durable range that can withstand most, even being overtaken by some construction vehicle. Splice terminal 16A has cable clamp which is open for faster handling and easier mounting. Screw connection +/- Ph2.
- Article number: 2405261
- Suppl. article no: 109739
- Ean no: 7331185191843
- Replaces art.nbr: 2403005
- Material class QJ0800
Technical data
- Packagin Size: 1 ST/1280 ST/1280 ST
- Design: Rubber (TPE)
- Connection system: Screwed terminal
- Number of poles: 3
- Identification colour: Black
- IEC-amperage: 16 A
- Degree of protection (IP): IP54
- Clock hour position: 0 h
- Material: Rubber
- Military model: No
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Insert direction: Straight
- Amperage according to UL/CSA (for UL-version): 20 A
- RAL-number: 9005
- Cable entry: Other
- REACH Date: 2021-06-15
- REACH Information obligation: No
