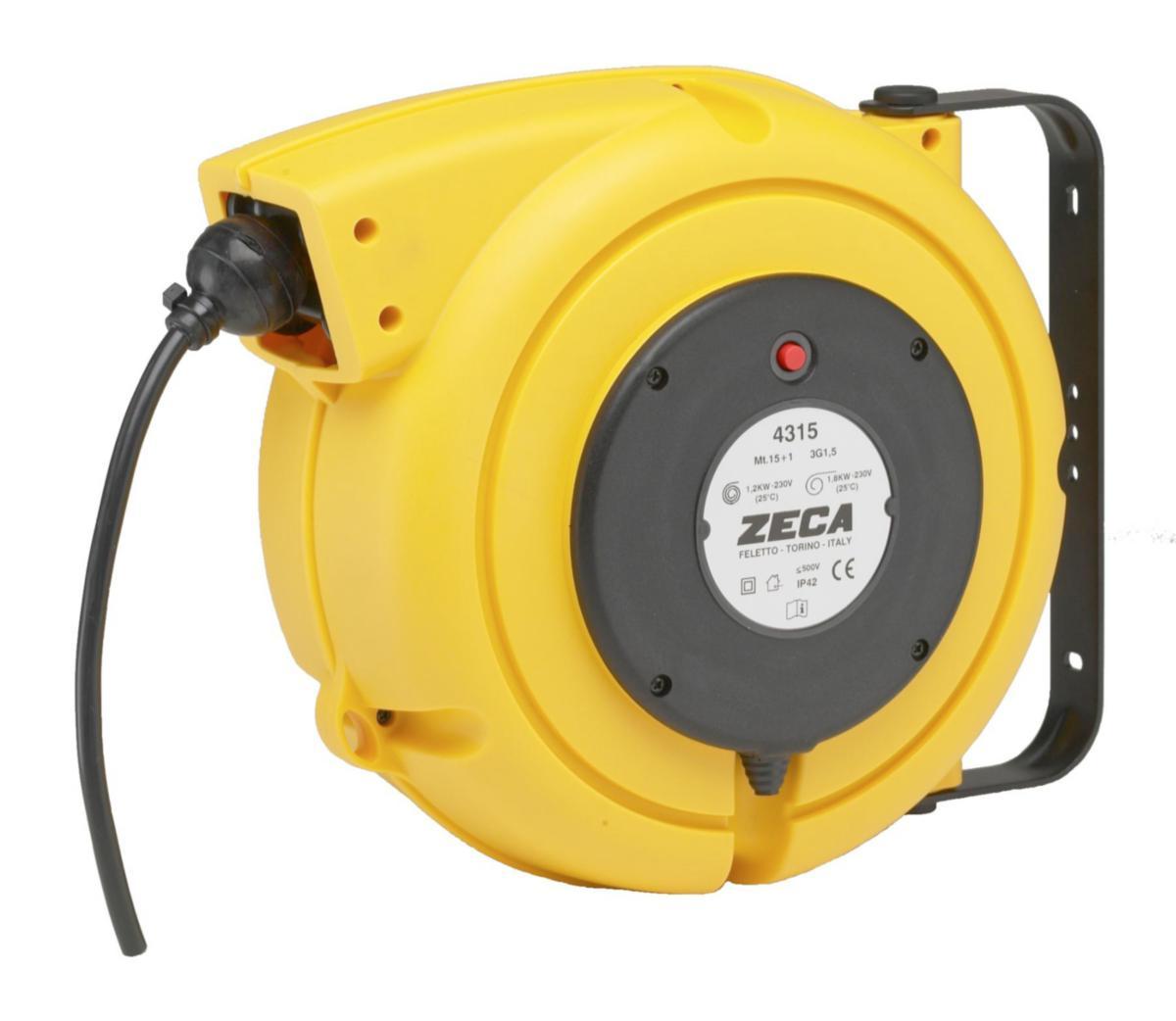

Cable reel Series 4000
SPRING OPERATED CABLE REEL 0
Article number: Suppl. article no:
2403573
1928053
to see price and stock
Hood of impact resistant plastic with suspension bracket that allows 180° pivoting when mounted on a wall and 310° when mounted on a profile or beam. Encapsulation class IP42.. Automatic locking of the cable every 50 cm. Rewinding via a short pull. The rewinding function can easily be disconnected by the user if constant rewinding is desired.
The reels are available with cable H07RN-F from 2 to 5 conductors and areas 1.0 to 2.5 mm² and lengths up to 13 metres. Max voltage 750V.
Reels with 2 and 3 wires are equipped with resettable overload protection.
Size: 190x310x360 mm
The reels are available with cable H07RN-F from 2 to 5 conductors and areas 1.0 to 2.5 mm² and lengths up to 13 metres. Max voltage 750V.
Reels with 2 and 3 wires are equipped with resettable overload protection.
Size: 190x310x360 mm
- Article number: 2403573
- Suppl. article no: 1928053
- Material class QJ150A
Technical data
- Packagin Size: 1 ST/28 ST/28 ST
- Type: 4315 RNF
- Cable length: 10 m
- Cable assembly: H07RN-F
- Number of cores: 3
- Core cross section: 1.5 mm²
- Rolled in: 1200 W
- Rolled out: 1800 W
