Garo

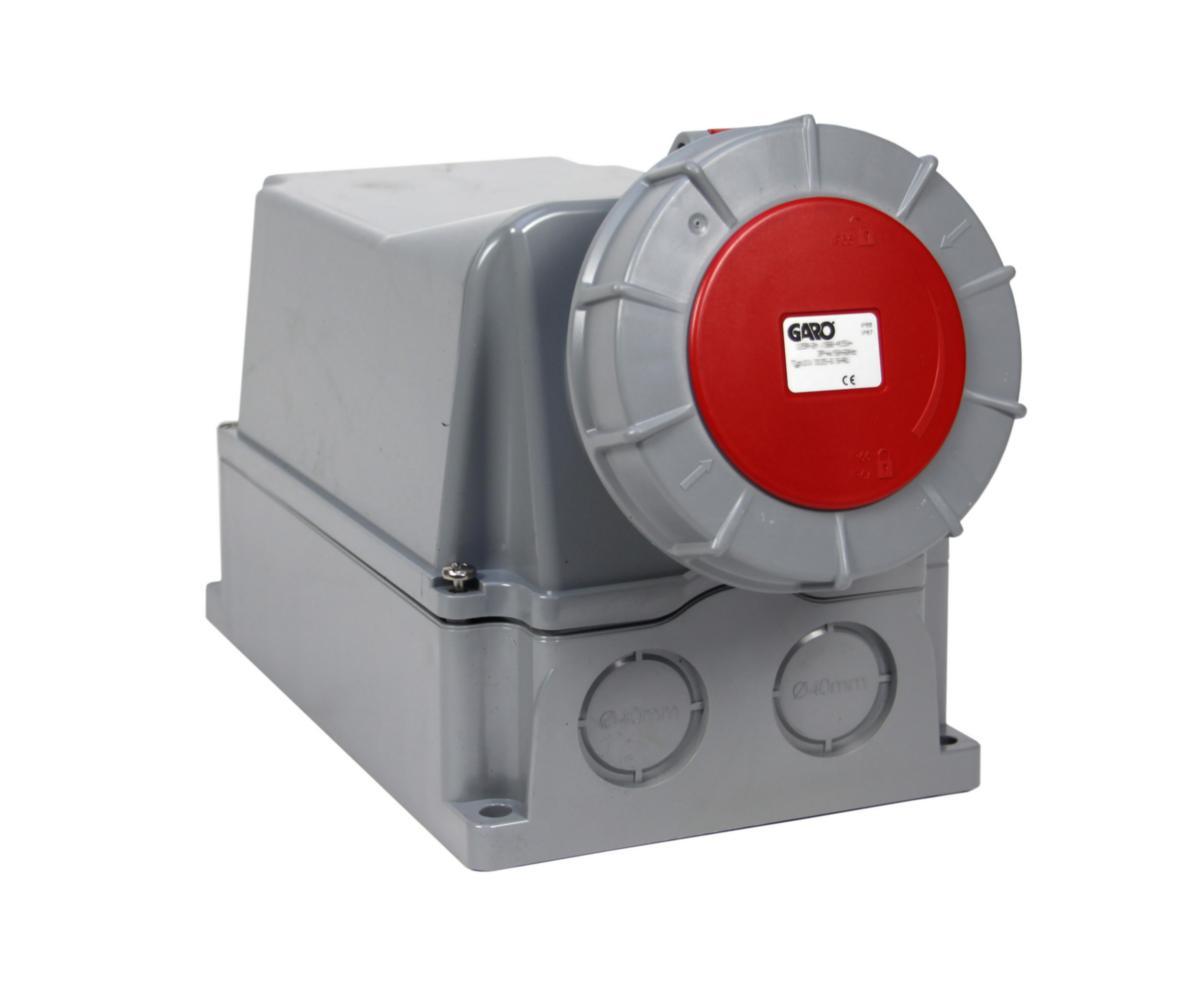

Wall socket Basic type UIV+RU 125A Waterproof
WALL SOCKET 4125-6+ RU IP67 UIV 4125–6 S + RU
Article number: Suppl. article no:
2424886
2424886
to see price and stock
For wall mounting with cable connection options from the bottom and top sides. Rotating bottom. With pilot pin. Connection terminal block 5x50 mm² Cu included.
Connectable wire area 5x50 mm² to the block. Flex-cable 16-50 mm² and solid cable 16-70 mm²
Protection class IP67.
Connectable wire area 5x50 mm² to the block. Flex-cable 16-50 mm² and solid cable 16-70 mm²
Protection class IP67.
- Article number: 2424886
- Suppl. article no: 2424886
- Ean no: 7331185085630
- Material class QJ3400
Technical data
- Type: UIV 4125-6 S+RU
- Identification colour: Red
- Number of poles: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Clock hour position: 6 h
- IEC-amperage: 125 A
- Amperage according to UL/CSA (for UL-version): 0 A
- Degree of protection (IP): IP67
- Connection system: Screwed terminal
- Cable entry: Other
- Material: Plastic
- Military model: No
- Model: Surface mounted
- RAL-number: 3000
- Type of fastening: Inner lying mounting
- Insulated mounting: Yes
- REACH Date: 2021-06-15
- REACH Information obligation: No
