Garo

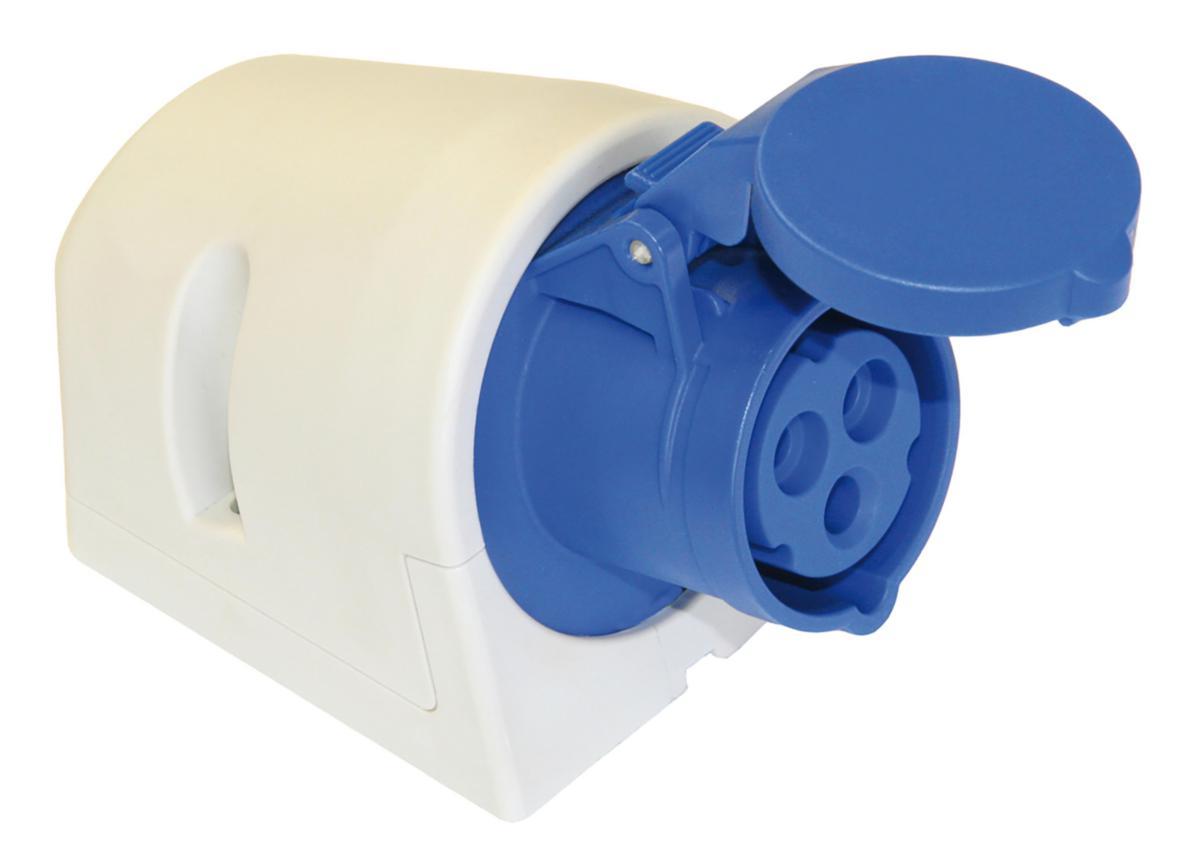

Wall socket Basic type UI+RU 16A
WALL MOUNTED SOCKET UI+RU 16A UI 216-6 S + RU
Article number: Suppl. article no:
2424774
2424774
to see price and stock
For wall and machine mounting with cable connection options from the top and bottom, 41x52 mm. Connectable wire area 1-2.5 mm² Solid cable 1-4 mm². Comes with sealed lead-in nipple.
- Article number: 2424774
- Suppl. article no: 2424774
- Ean no: 7331185083919
- Replaces art.nbr: 1946306
- Material class QJ3400
Technical data
- Packagin Size: 1 ST/10 ST
- Type: UI 216-6 S+RU
- Identification colour: Blue
- Number of poles: 3
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Clock hour position: 6 h
- IEC-amperage: 16 A
- Amperage according to UL/CSA (for UL-version): 20 A
- Degree of protection (IP): IP44
- Connection system: Screwed terminal
- Cable entry: Other
- Material: Plastic
- Military model: No
- Model: Surface mounted
- RAL-number: 5017
- Type of fastening: Inner lying mounting
- Insulated mounting: Yes
- REACH Date: 2021-06-15
- REACH Information obligation: No
