Garo

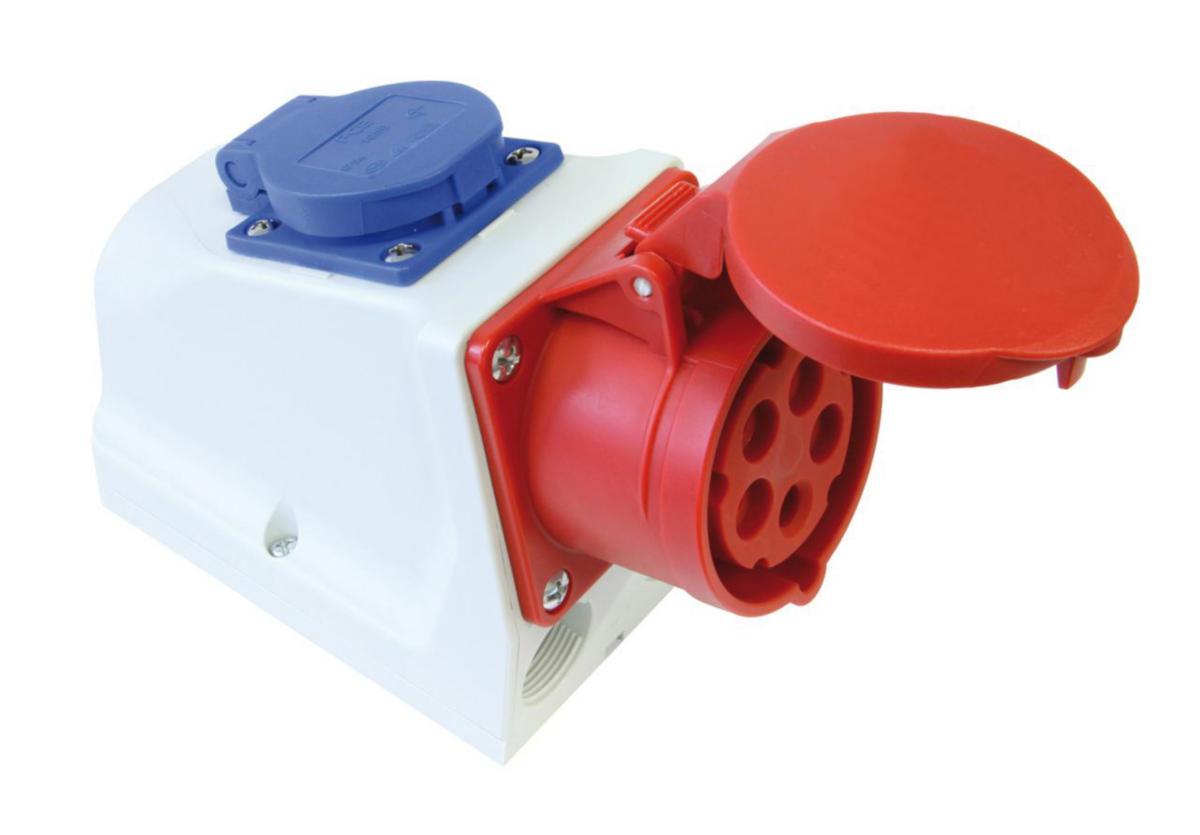

Wall socket Basic type UI+RU/UIF with Schuko 16A
WLL MOUNT. SOCK. UI+RU/UIF 16 UI 416-6 S+ RU/UIF
Article number: Suppl. article no:
2424763
2424763
to see price and stock
For wall and machine mounting with cable connection options from the top and bottom, 41 x 52 mm. If the wall outlet is mounted outdoors or if it is likely that it will be used to supply movable equipment outdoors, it shall be preceded by an all-pole earth fault breaker with maximum 30 mA rated tripping current.
Connectable wire area:
16A: 1-2,5 mm² and 1-4 for solid cable
32A: 2.5-6 mm² and 2.5-10 for solid cable
Supplied with a membrane nipple.
Connectable wire area:
16A: 1-2,5 mm² and 1-4 for solid cable
32A: 2.5-6 mm² and 2.5-10 for solid cable
Supplied with a membrane nipple.
- Article number: 2424763
- Suppl. article no: 2424763
- Ean no: 7331185084435
- Replaces art.nbr: 1946346
- Material class QJ3400
Technical data
- Packagin Size: 1 ST/5 ST
- Type: UI 416-6 S+RU/UIF
- Identification colour: Red
- Number of poles: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Clock hour position: 6 h
- IEC-amperage: 16 A
- Amperage according to UL/CSA (for UL-version): 20 A
- Degree of protection (IP): IP44
- Connection system: Screwed terminal
- Cable entry: Other
- Material: Plastic
- Military model: No
- Model: Surface mounted
- RAL-number: 3000
- Type of fastening: Inner lying mounting
- Insulated mounting: Yes
- REACH Date: 2021-06-15
- REACH Information obligation: No
