ABB

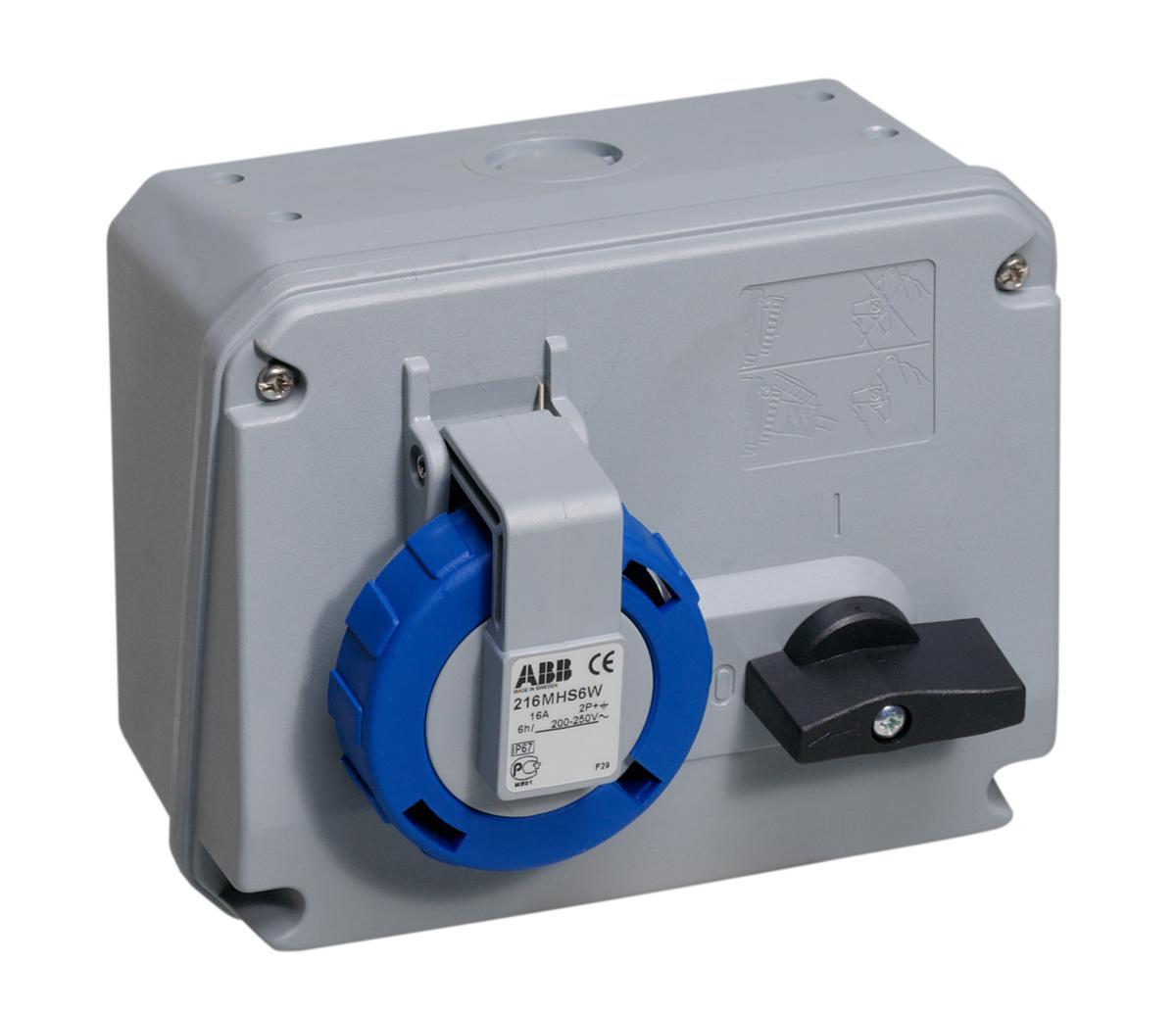

Blocked wall socket, IP 67, 16-63 A, ABB
WALL OUTLET 16A IP67 216MHS6W BLOCKED T
Article number: Suppl. article no:
2416894
2CMA167801R1000
to see price and stock
AC frequency 50-60Hz. Mechanical sealing with 3-pole switch. Meets the demands of ELSÄK-FS 1994:7 part 2, blocked socket. Flanges and screw fittings are ordered separately (see list 25 respectively list 14).
Splash-proof design, housing of PBT with breakout openings at the top and the bottom. Horizontal socket. The housing is fitted with knock-out openings for fastening holes suitable for flange FL 13 or breakout openings for screw fittings 28.3 or 37. With counterhold nuts at the top and threaded entrance holes Pr28.3 at the bottom for 16-32.
Splash-proof design, housing of PBT with breakout openings at the top and the bottom. Horizontal socket. The housing is fitted with knock-out openings for fastening holes suitable for flange FL 13 or breakout openings for screw fittings 28.3 or 37. With counterhold nuts at the top and threaded entrance holes Pr28.3 at the bottom for 16-32.
- Article number: 2416894
- Suppl. article no: 2CMA167801R1000
- Ean no: 7392696678018
- Material class QJ310B
Technical data
- Identification colour: Blue
- Number of poles: 3
- Voltage according to EN 60309-2: 200-250 V (50+60 Hz) blue
- Clock hour position: 6 h
- IEC-amperage: 16 A
- Degree of protection (IP): IP67
- Connection system: Screwed terminal
- Cable entry: Other
- Material: Plastic
- Military model: No
- Model: Surface mounted
- RAL-number: 7001
- Type of fastening: Inner lying mounting
- Insulated mounting: Yes
- REACH Date: 2021-04-30
- REACH Information obligation: No
- Alternating current: 50/60 Hz
