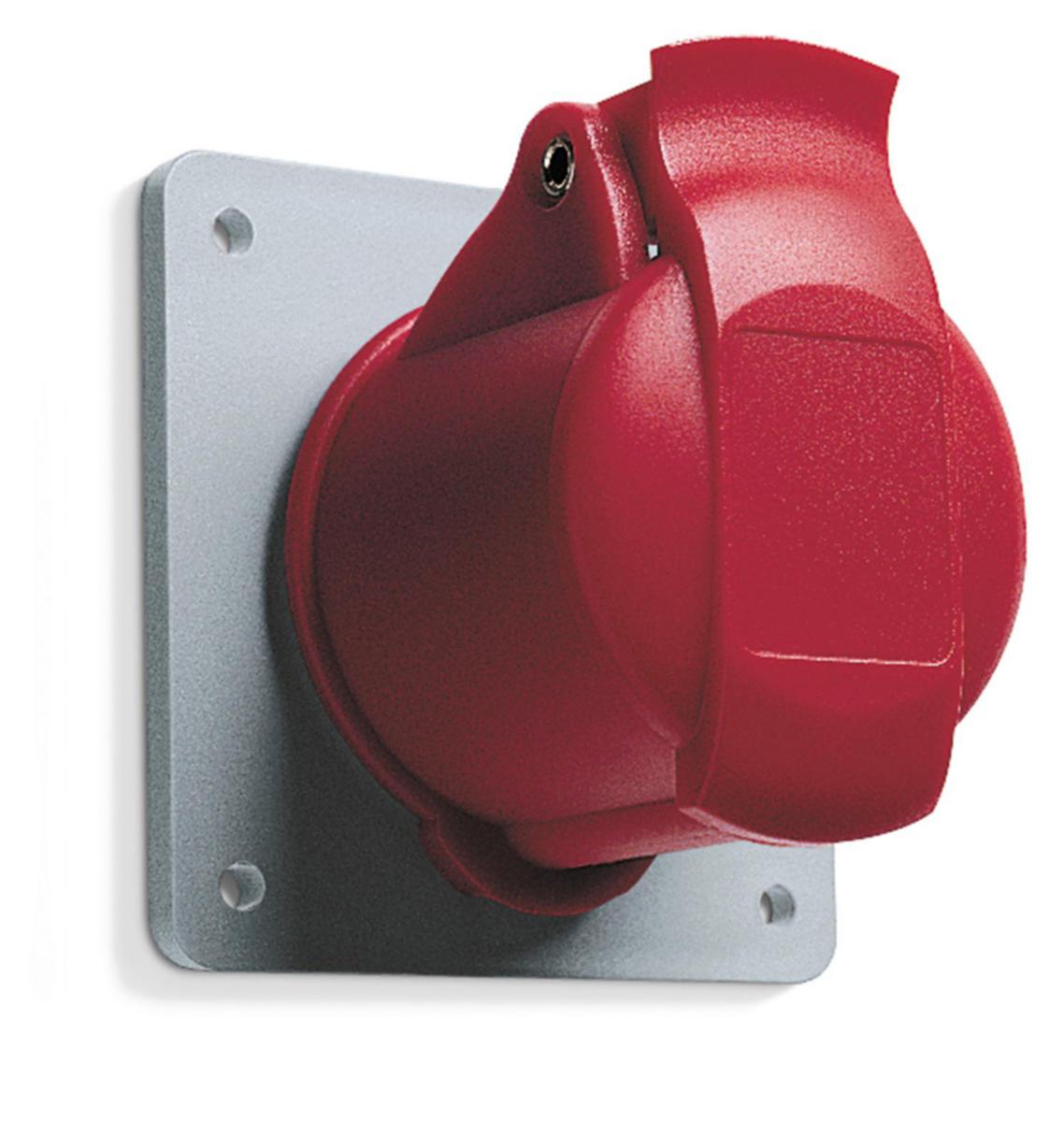

Wall socket for panel mounting, type RU, IP44
416RU6 STRAIGHT FLANGE
Article number: Suppl. article no:
2416633
2CMA193187R1000
to see price and stock
Straight common flange, fastening holes distance 60-61 mm. Splash-proof design, housing of robust thermoplastic housing. Packing for retained protection class, see Accessories.
- Article number: 2416633
- Suppl. article no: 2CMA193187R1000
- Ean no: 7392696931878
- Material class QJ3100
Technical data
- Packagin Size: 1 ST/10 ST
- Type: 416RU6
- IEC-amperage: 16 A
- Identification colour: Red
- Number of poles: 5
- Clock hour position: 6 h
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Degree of protection (IP): IP44
- Flange size horizontal: 75 mm
- Flange size vertical: 75 mm
- Drill hole distance horizontal: 61 mm
- Drill hole distance vertical: 61 mm
- Insert direction: Straight
- Material: Plastic
- Connection system: Screwed terminal
- Military model: No
- Amperage according to UL/CSA (for UL-version): 16 A
- RAL-number: 7001
- REACH Date: 2021-04-30
- REACH Information obligation: No
