Amphenol

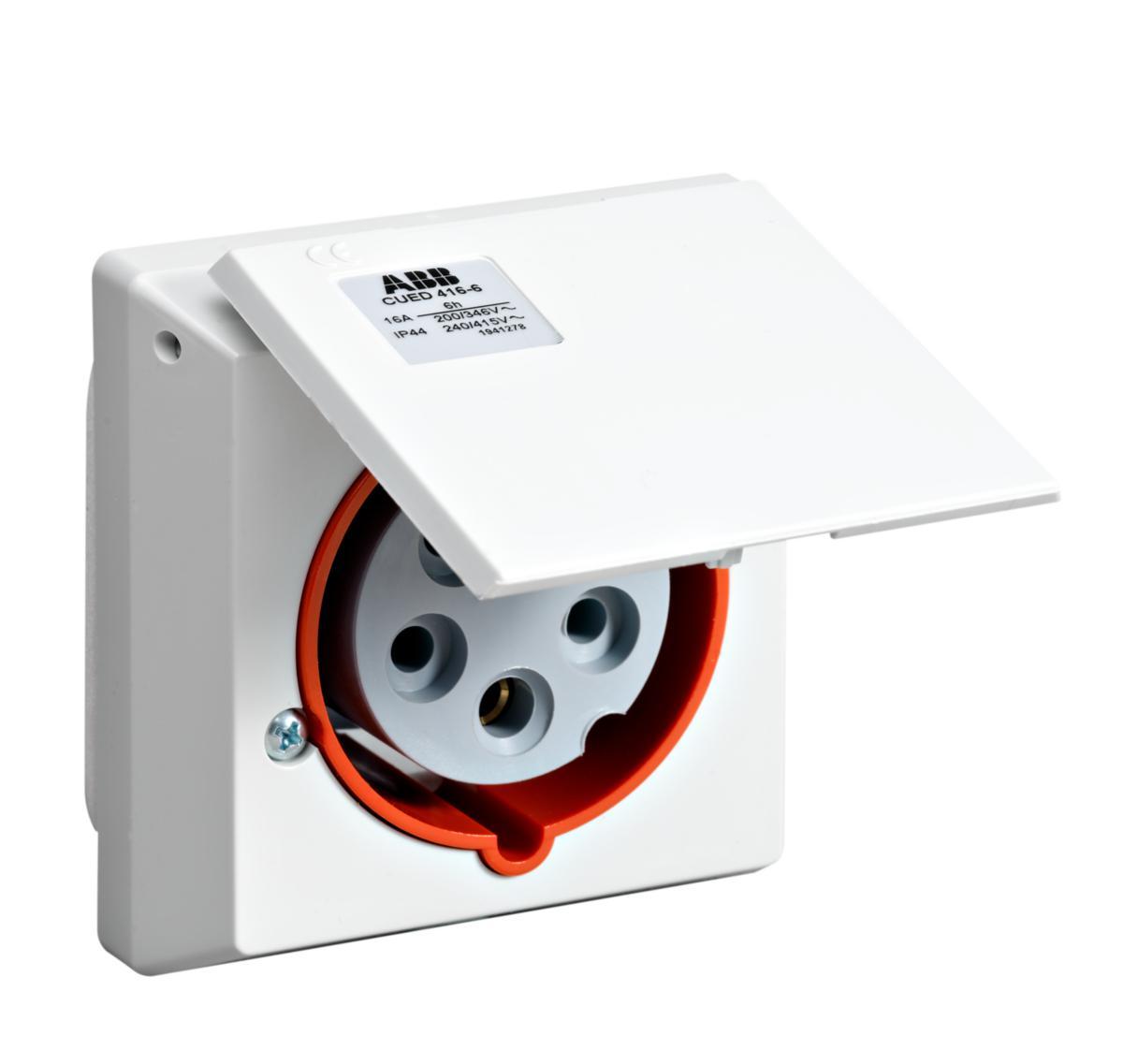

Wall socket CUED, for wall box
CUED 416-6 0
Article number: Suppl. article no:
2416013
2CMA178699R1000
to see price and stock
Wall outlet for recessed mounting, 6 o'clock for earth pin, rated current 16A, IP44, frequency 50-60 Hz. Casing: thermoplastic. Connectable area 1.5-4 sq.mm.
- Article number: 2416013
- Suppl. article no: 2CMA178699R1000
- Ean no: 7392696786997
- Material class QJ3100
Technical data
- Packagin Size: 1 ST/10 ST
- Design: 3-pole + neutral + earth
- Colour: White
- Nominal current: 16 A
- Nominal voltage: 400 V
- IEC-amperage: 16 A
- RAL-number: 9001
- Number of poles: 5
- Clock hour position: 6 h
- REACH Date: 2021-04-30
- Number of terminals + J: 3
- Configuration: Closed cover
- Construction type: Wall mounted socket
- Type: CUED 416-6
- Current supply: Other
- Identification colour: Red
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- REACH Information obligation: No
