Amphenol
Wall socket, IP44
463BS6 0
Article number: Suppl. article no:
2417207
2CMA167566R1000
to see price and stock

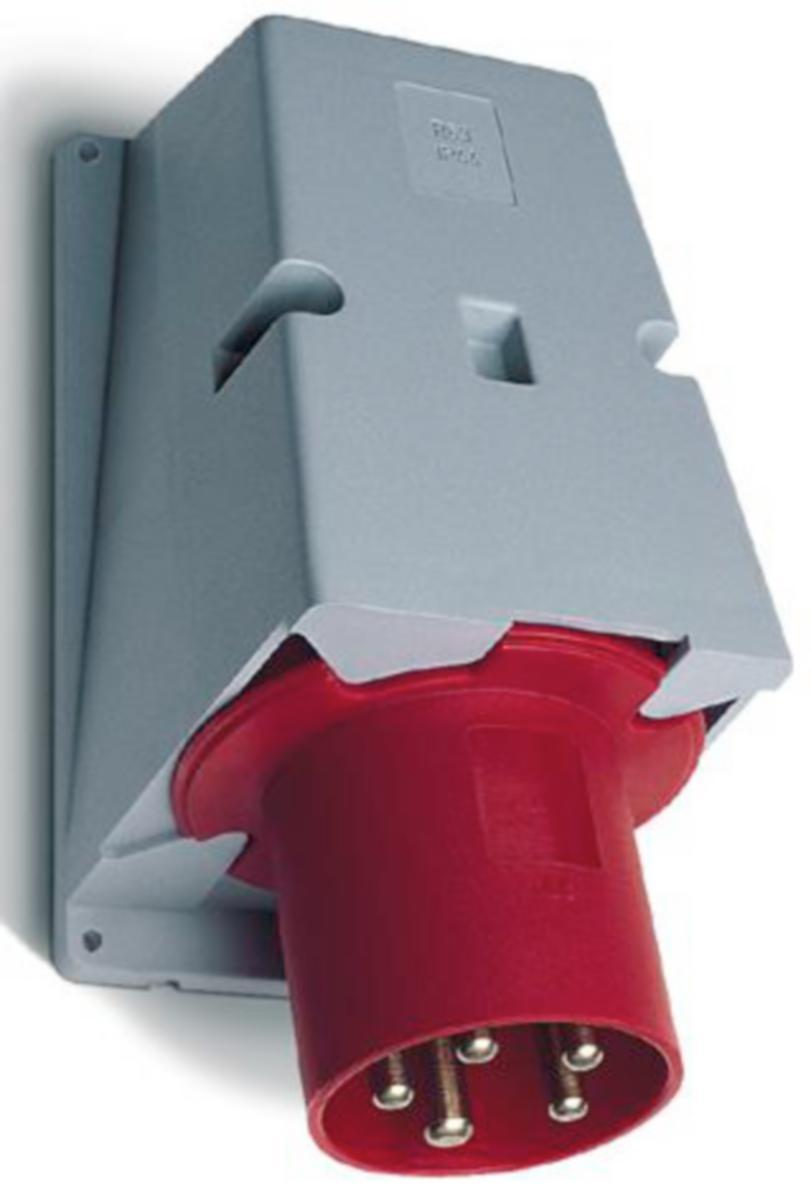

Surface intake for demanding environment. 16–125 A. IEC 60309-1, -2. Surface-mounted thermoplastic polyester (PBT) outlet that withstands harsh environments. Waterproof version (IP67) 16–125 A and flush-proof version (IP44) 63 A. The flush-proof sockets 63 A have M32-threaded cable entry on the upper side and cable entry with break plate on the back. The waterproof designs have a cable entry 25–50 mm on the upper side.
- Article number: 2417207
- Suppl. article no: 2CMA167566R1000
- Ean no: 7392696675666
- Material class QJ3100
Technical data
- Packagin Size: 1 ST/10 ST/10 ST
- Type: 463BS6
- Amperage according to UL/CSA (for UL-version): 63 A
- IEC-amperage: 63 A
- Identification colour: Red
- Number of poles: 5
- Clock hour position: 6 h
- Degree of protection (IP): IP44
- Voltage according to EN 60309-2: 380-415 V (50+60 Hz) red
- Insert direction: Angled
- Construction type: Surface mounted device plug
- Connection system: Screwed terminal
- Phase inverter: No
- Material: Plastic
- Military model: No
- RAL-number: 7001
- REACH Date: 2021-04-30
- REACH Information obligation: No
