AhlsellProductsElectricPanels and fuses 20-2424 Temporary power, output posts, construction panelsIEC/CEE devicesWall inlet
Amphenol

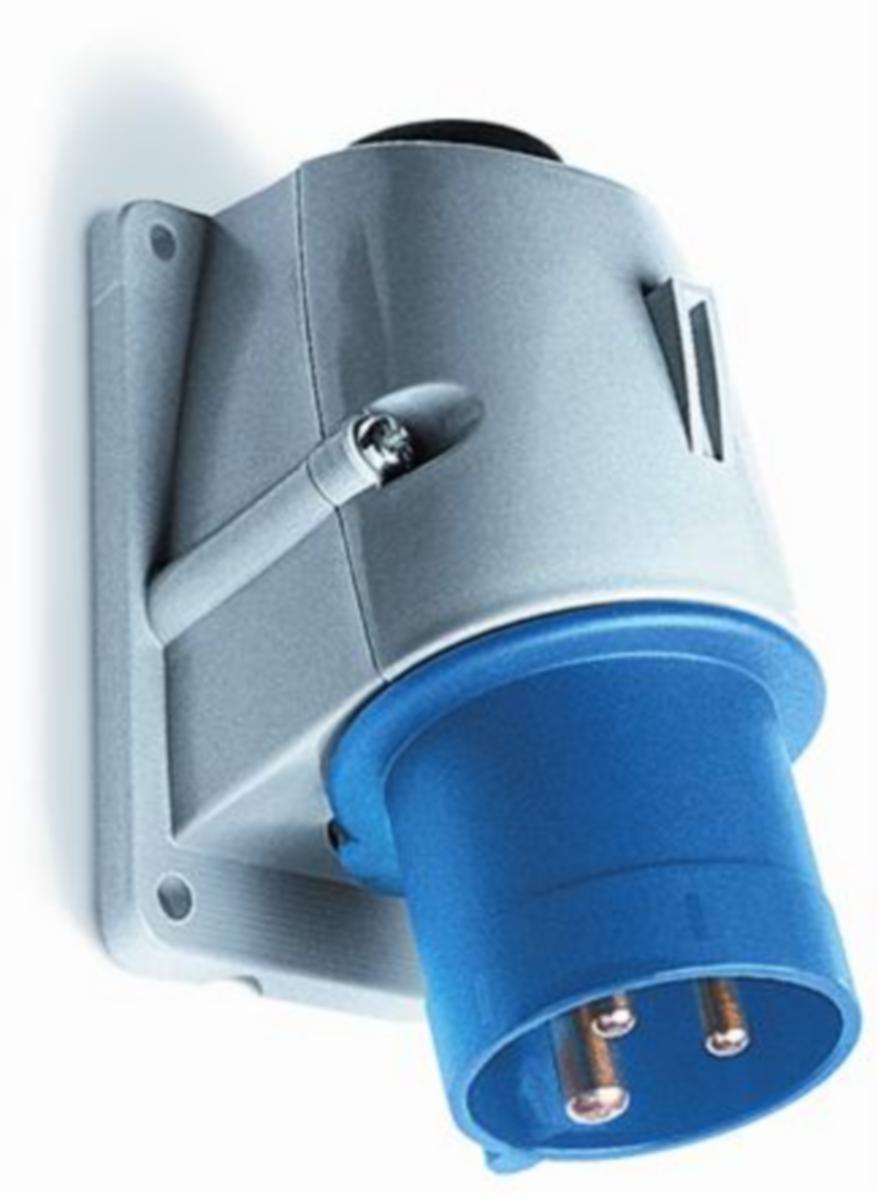

Wall inlet, IP44, 16A, ABB
216BS6 0
Article number: Suppl. article no:
2417162
2CMA193290R1000
to see price and stock
Surface mounting. Housing of robust thermoplastic with cable seals consisting of restriction nipples and thread inserts Pr 22,5 för 16 A, Pr 28,3 för 32 A. M20 för 16 A, m"5 för 32 A on demand. Extra installation-friendly and user-friendly design.
- Article number: 2417162
- Suppl. article no: 2CMA193290R1000
- Ean no: 7392696932905
- Material class QJ3100
Technical data
- Packagin Size: 1 ST/10 ST
- Type: 216BS6
- Amperage according to UL/CSA (for UL-version): 16 A
- IEC-amperage: 16 A
- Identification colour: Blue
- Number of poles: 3
- Clock hour position: 6 h
- Degree of protection (IP): IP44
- Voltage according to EN 60309-2: 200-250 V (50+60 Hz) blue
- Insert direction: Angled
- Construction type: Surface mounted device plug
- Connection system: Screwed terminal
- Phase inverter: No
- Material: Plastic
- Military model: No
- RAL-number: 7001
- REACH Date: 2021-04-30
- REACH Information obligation: No
