Garo

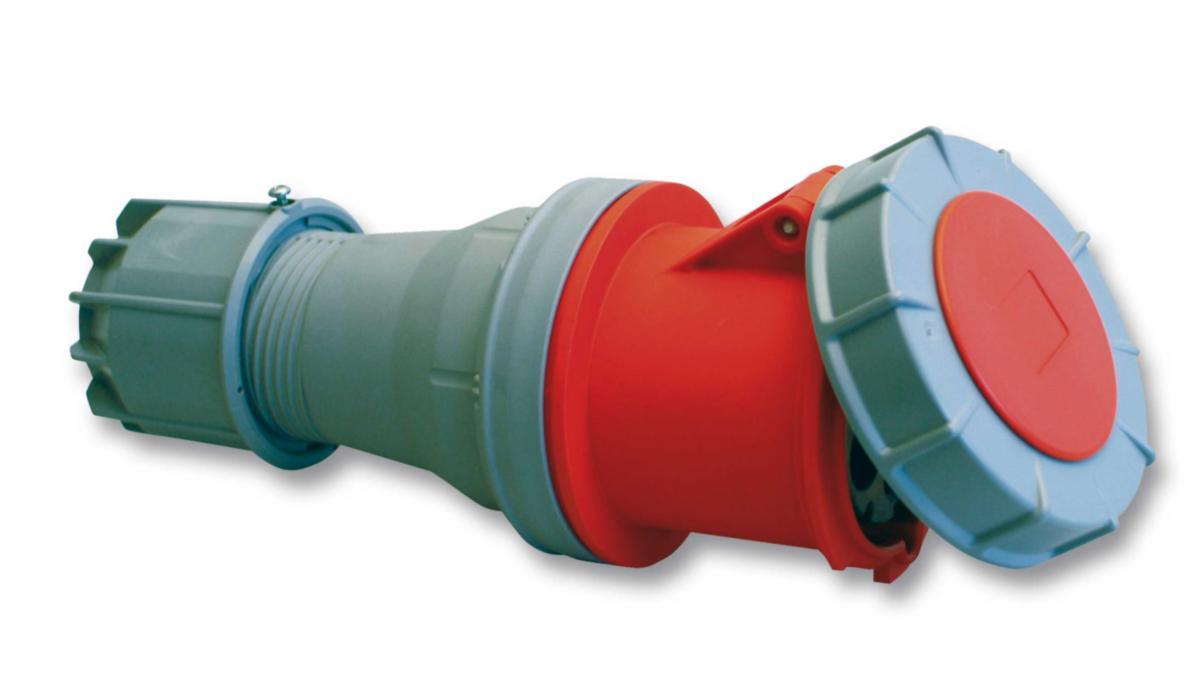

Coupler socket Basic 63A Waterproof
CONNECTORS 63A WT EN 463-6 S
Article number: Suppl. article no:
2424738
2424738
to see price and stock
Waterproof design
Connectable wire area 6-16 mm².
Protection class IP67
Connectable wire area 6-16 mm².
Protection class IP67
- Article number: 2424738
- Suppl. article no: 2424738
- Ean no: 7331185083643
- Material class QJ3400
Technical data
- Packagin Size: 1 ST/2 ST/2 ST
- Type: SV 463-6 S
- IEC-amperage: 63 A
- Amperage according to UL/CSA (for UL-version): 0 A
- Identification colour: Red
- Number of poles: 5
- Clock hour position: 6 h
- Degree of protection (IP): IP67
- Insert direction: Straight
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Connection system: Screwed terminal
- Military model: No
- Material: Plastic
- Cable entry: Other
- REACH Date: 2021-06-15
- REACH Information obligation: No
