Amphenol

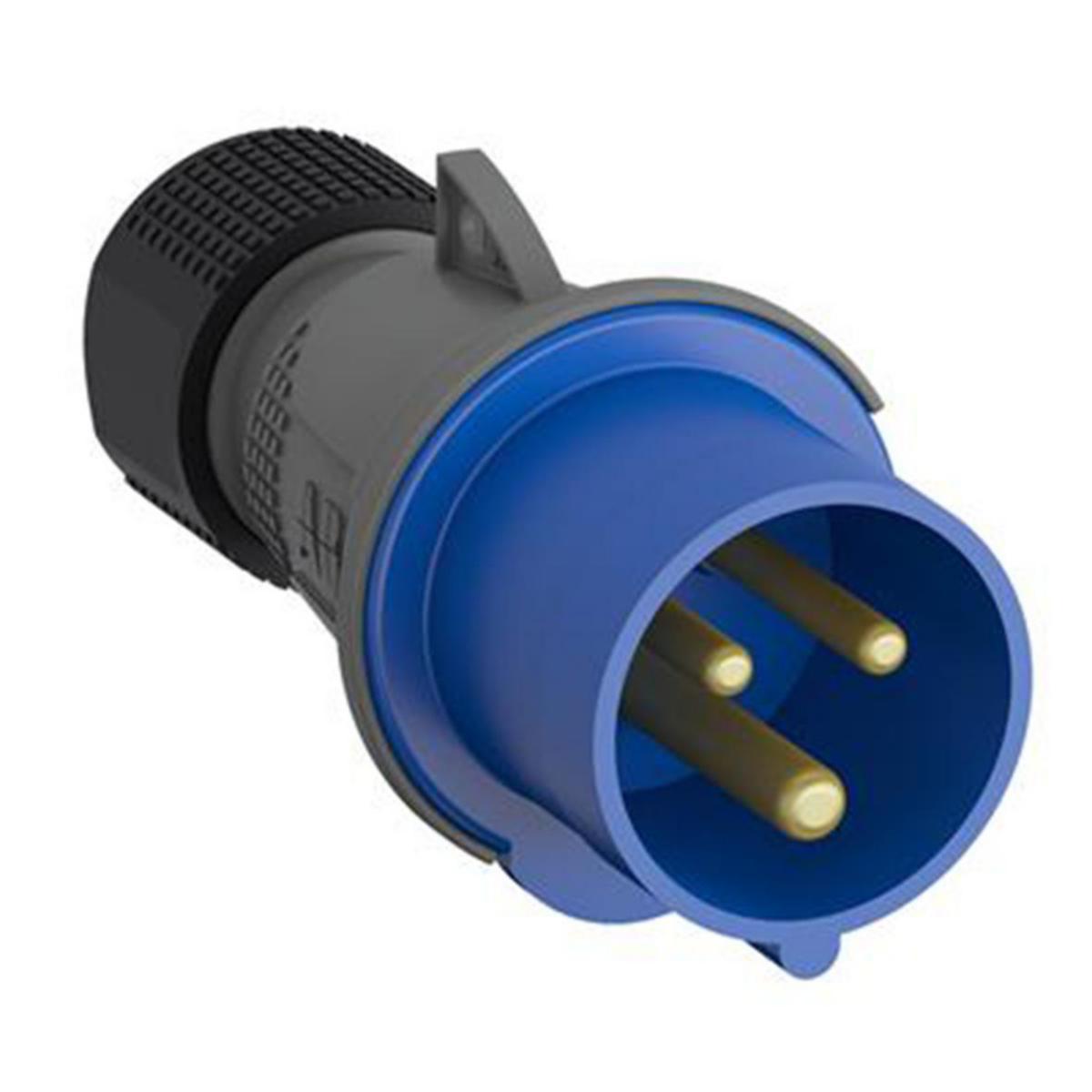

Attachment plug CEE 32A, IP44 CEE
232EP6 2CMA101975R1000
Article number: Suppl. article no:
2416172
2CMA101975R1000
to see price and stock
Plugs of IP44 with full functionality and ergonomic design. Easy & Safe plugs have a combined cable insertion and cable relief, which allows easy loading of the relief with the insertion nut. The clear terminal markings makes installation easy. Brass terminal parts provide a reliable connection. PA6- Plastic is used to give the devices excellent electrical properties meets quality and safety requirements.
- Article number: 2416172
- Suppl. article no: 2CMA101975R1000
- Ean no: 7392696019750
- Material class QJ3100
Technical data
- Packagin Size: 1 ST/10 ST
- Type: 232P6
- IEC-amperage: 32 A
- Identification colour: Blue
- Number of poles: 3
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Degree of protection (IP): IP44
- Clock hour position: 6 h
- Insert direction: Straight
- Connection system: Screwed terminal
- Phase inverter: No
- Cable entry: Gland nut
- Material: Plastic
- Military model: No
- RAL-number: 7012
- Contact material: CuZn
- Surface treatment contacts: Untreated
- REACH Date: 2021-04-30
- REACH Information obligation: No
