Garo

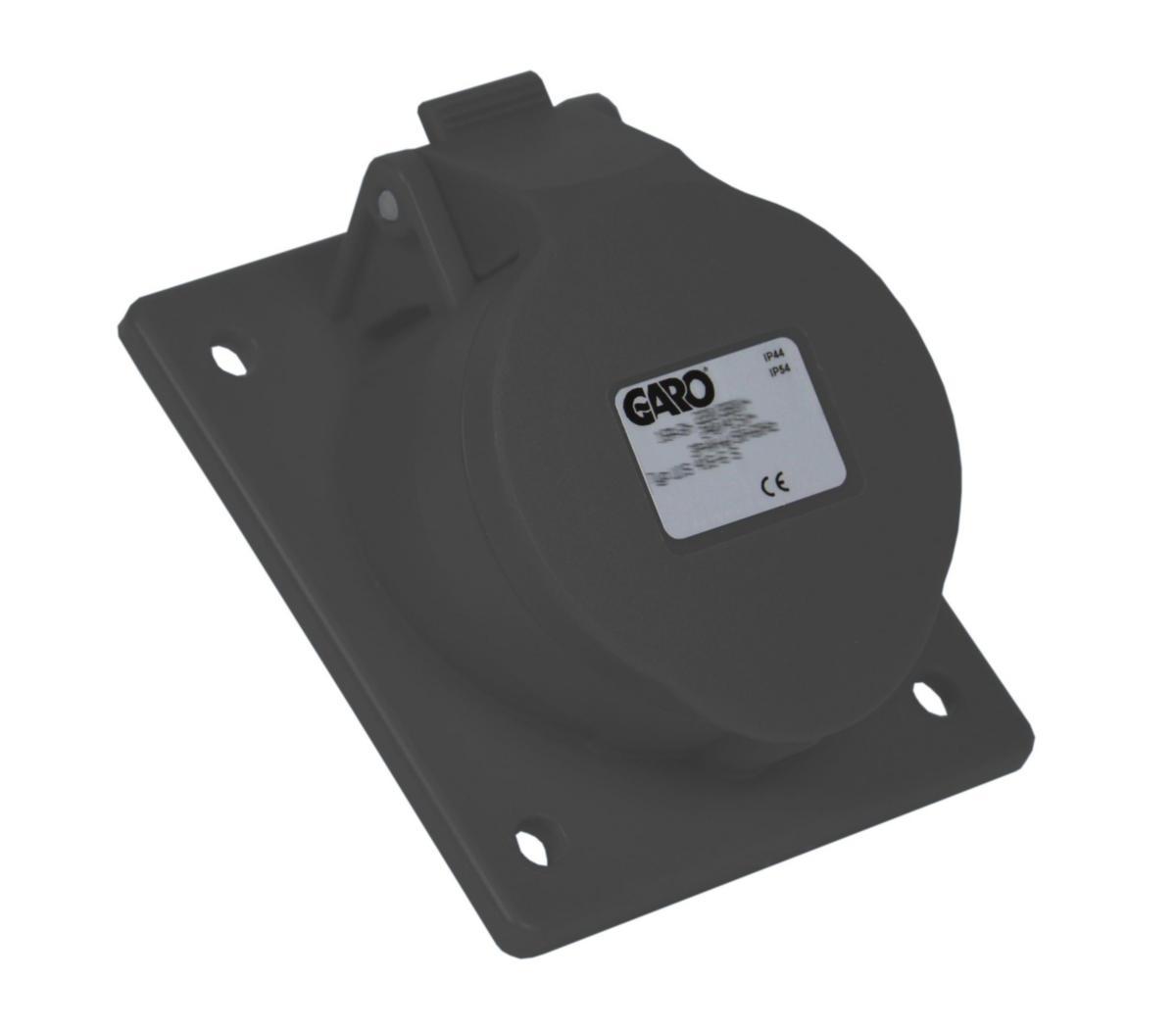

Panel socket quick type UIS with oblique attaching plate 32A, without screw
FLANGED SOCKET UIS SLOP 32A TT UIS 432-7 Q
Article number: Suppl. article no:
2425609
2425609
Normally in stock
to view the store status of the store
to see price and stock
Screwless socket for panel mounting and for 32 A with quick release connection.
Fastening plate dimensions 80x80 mm.
Connectable wire area 2.5-6 mm² and 2.5-10 mm² for solid cable.
Protection class IP44.
Fastening plate dimensions 80x80 mm.
Connectable wire area 2.5-6 mm² and 2.5-10 mm² for solid cable.
Protection class IP44.
- Article number: 2425609
- Suppl. article no: 2425609
- Ean no: 7331185088365
- Material class QJ3400
Technical data
- Packagin Size: 1 ST/10 ST
- Type: UIS 432-7 Q
- IEC-amperage: 32 A
- Identification colour: Black
- Number of poles: 5
- Clock hour position: 7 h
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Degree of protection (IP): IP44
- Flange size horizontal: 70 mm
- Flange size vertical: 70 mm
- Drill hole distance horizontal: 5.5 mm
- Drill hole distance vertical: 5.5 mm
- Insert direction: Angled
- Material: Plastic
- Connection system: Screwless terminal
- Military model: No
- Amperage according to UL/CSA (for UL-version): 30 A
- Cable entry: Other
- Rated voltage: 480-500 V
- RAL-number: 9005
- Contact material: CuZn
- Surface coating contacts: Untreated
- Rated frequency: 50-60 Hz
- REACH Date: 2021-06-15
- Colour code: 7/Black
- Clock time: 7/Black
- REACH Information obligation: No
You may also like
Amphenol
416RAU6 ANGULAR FLANGE
Wall socket for panel mounting, type RAU, IP44
Art. no.: 2416650
Elit

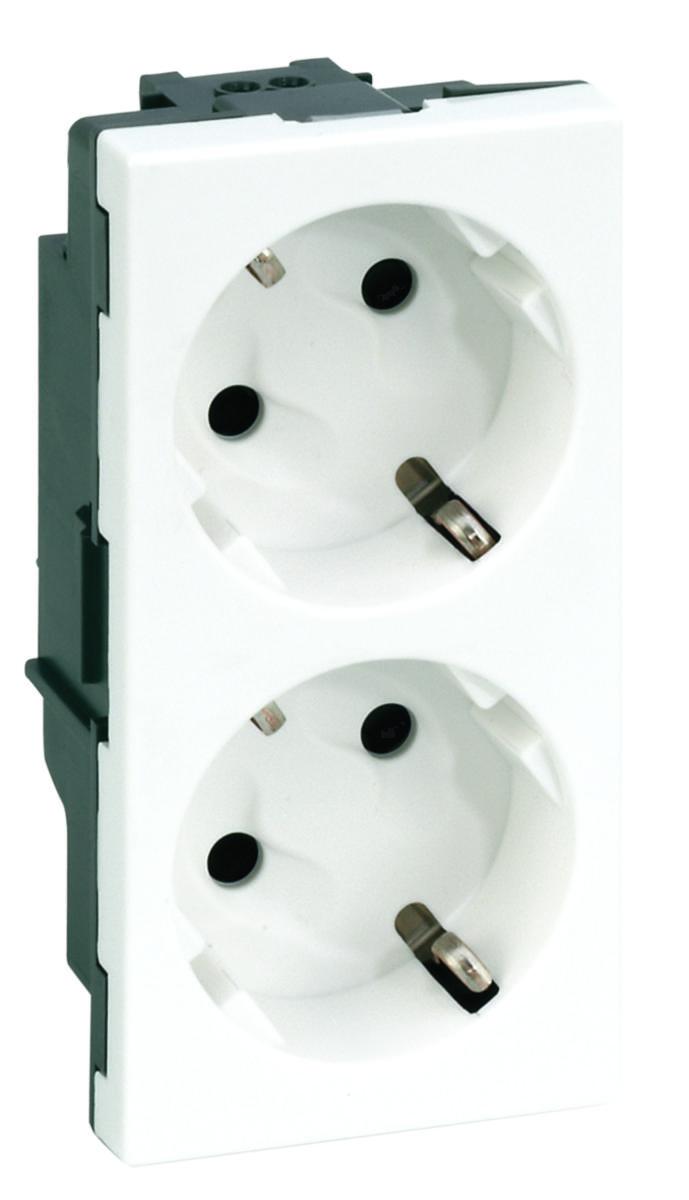

DOUBLE POWER SOCKET 16A 250V
