Garo

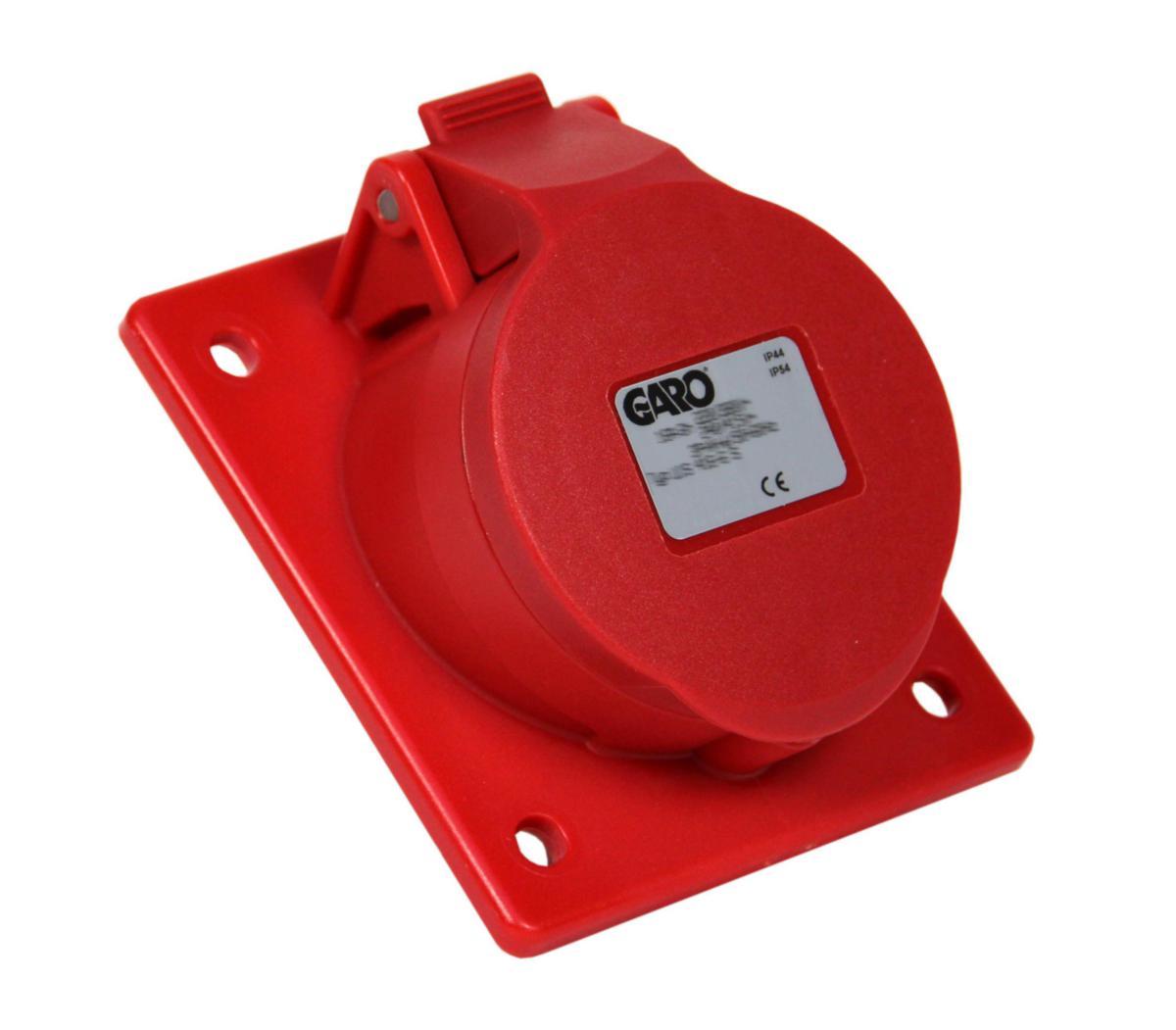

Panel socket Basic type UIS 16A with oblique attaching plate
FLANGED SOCKET UIS SLOPING 16A UIS 416-6 SEC
Article number: Suppl. article no:
2425035
2425035
to see price and stock
For panel mounting. Fastening plate dimensions: 70x70 mm for 3 and 4-pole devices. 80x80 mm for 5-pole devices
Connectable wire area 1-2.5 mm² and 1-4 mm² for solid cable.
Protection class IP44.
Connectable wire area 1-2.5 mm² and 1-4 mm² for solid cable.
Protection class IP44.
- Article number: 2425035
- Suppl. article no: 2425035
- Ean no: 7331185087559
- Material class QJ3400
Technical data
- Packagin Size: 1 ST/10 ST/10 ST
- IEC-amperage: 16 A
- Identification colour: Red
- Number of poles: 5
- Clock hour position: 6 h
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Degree of protection (IP): IP44
- Flange size horizontal: 80 mm
- Flange size vertical: 97 mm
- Drill hole distance horizontal: 60 mm
- Drill hole distance vertical: 73 mm
- Insert direction: Angled
- Material: Plastic
- Connection system: Screwed terminal
- Military model: No
- REACH Date: 2021-06-15
- REACH Information obligation: No
