Garo

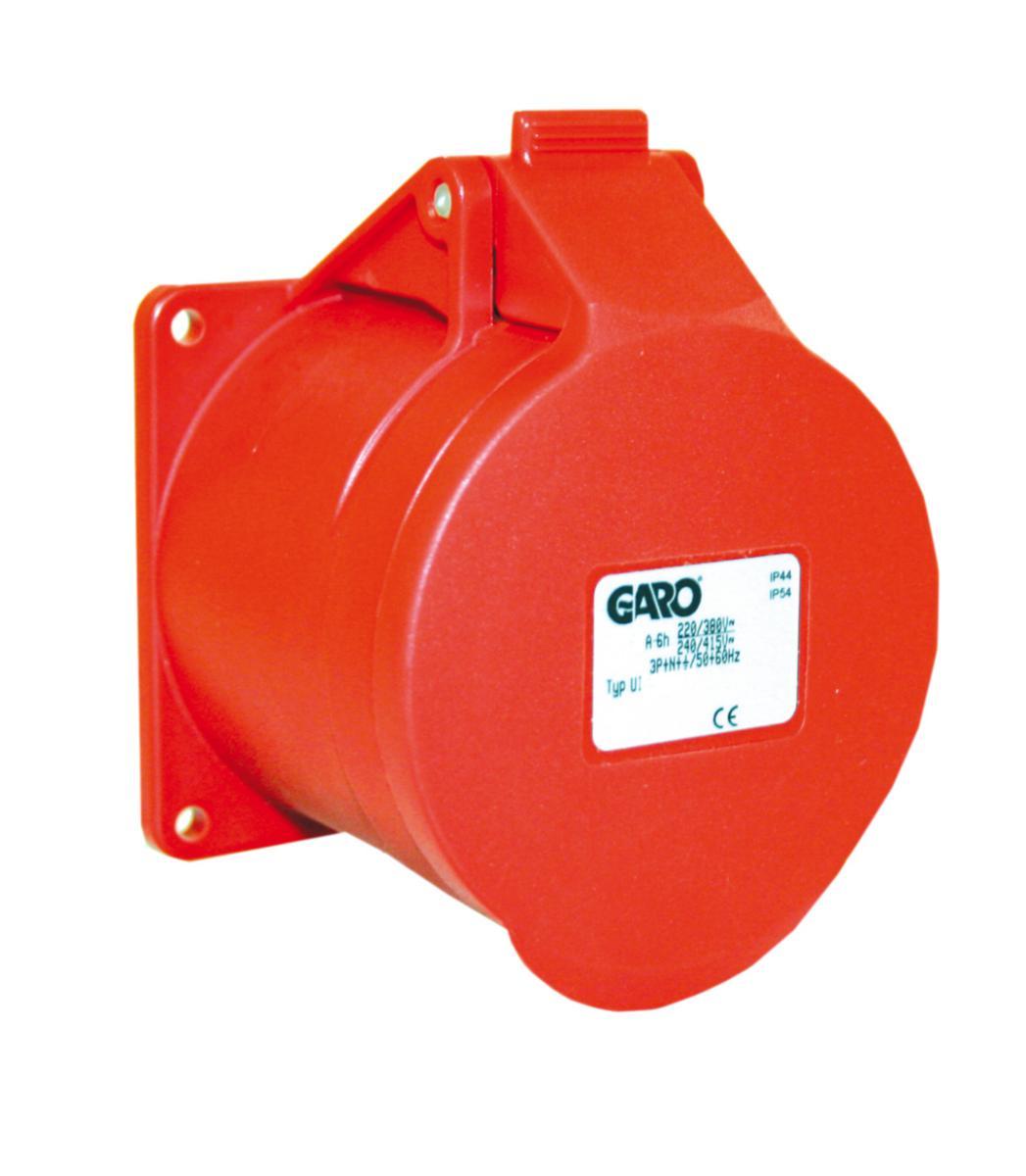

Panel socket Basic type UI 16A with straight attaching plate
FLANGED SOCKET UI STRAIGHT 16A UI 416–6 S
Article number: Suppl. article no:
2424909
2424909
to see price and stock
For panel mounting. Fastening plate dimensions 70x70 mm
Connectable wire area 1-2 mm². Solid cable 1-4 mm².
Protection class IP44.
Connectable wire area 1-2 mm². Solid cable 1-4 mm².
Protection class IP44.
- Article number: 2424909
- Suppl. article no: 2424909
- Ean no: 7331185085869
- Material class QJ3400
Technical data
- Packagin Size: 1 ST/10 ST
- IEC-amperage: 16 A
- Identification colour: Red
- Number of poles: 5
- Clock hour position: 6 h
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Degree of protection (IP): IP44
- Flange size horizontal: 70 mm
- Flange size vertical: 70 mm
- Drill hole distance horizontal: 60 mm
- Drill hole distance vertical: 60 mm
- Insert direction: Straight
- Material: Plastic
- Connection system: Screwed terminal
- Military model: No
- REACH Date: 2021-06-15
- REACH Information obligation: No
