AhlsellProductsElectricPanels and fuses 20-2424 Temporary power, output posts, construction panelsIEC/CEE devicesPanel socket
Garo

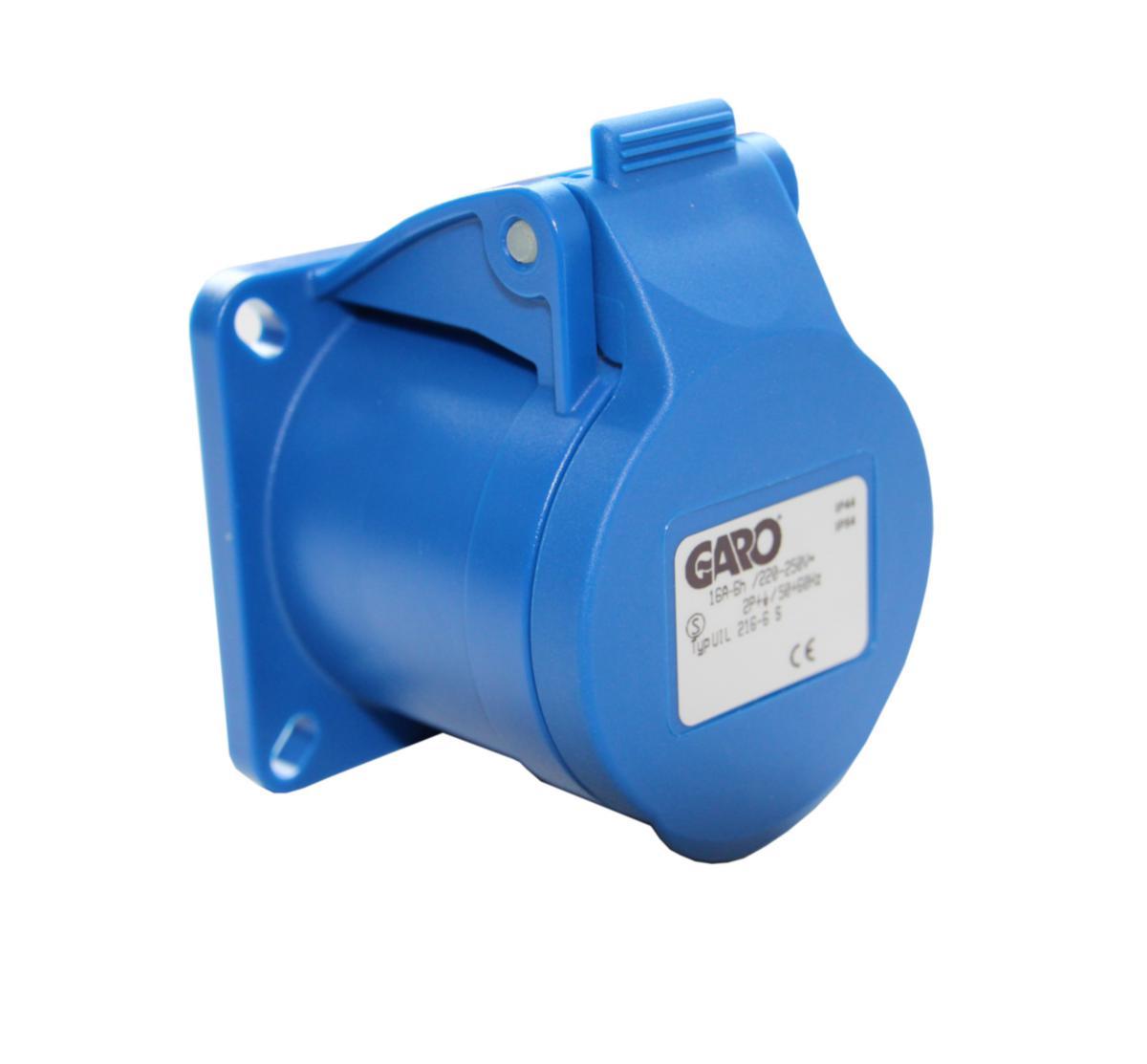

Panel socket Basic type UIL 16A with small straight attaching plate
FLANGED SOCK. UIL STRAIGHT 16A UIL 216-6 SEC
Article number: Suppl. article no:
2424890
2424890
to see price and stock
For panel mounting. Fastening plate dimensions 57x57 mm
Protection class IP44.
Connectable wire area 1-2.5 mm² Solid cable 1-4 mm².
Protection class IP44.
Connectable wire area 1-2.5 mm² Solid cable 1-4 mm².
- Article number: 2424890
- Suppl. article no: 2424890
- Ean no: 7331185085678
- Material class QJ3400
Technical data
- Packagin Size: 1 ST/10 ST
- IEC-amperage: 16 A
- Identification colour: Blue
- Number of poles: 3
- Clock hour position: 6 h
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Degree of protection (IP): IP44
- Flange size horizontal: 57 mm
- Flange size vertical: 57 mm
- Drill hole distance horizontal: 46 mm
- Drill hole distance vertical: 46 mm
- Insert direction: Straight
- Material: Plastic
- Connection system: Screwed terminal
- Military model: No
- REACH Date: 2021-06-15
- REACH Information obligation: No
