Garo

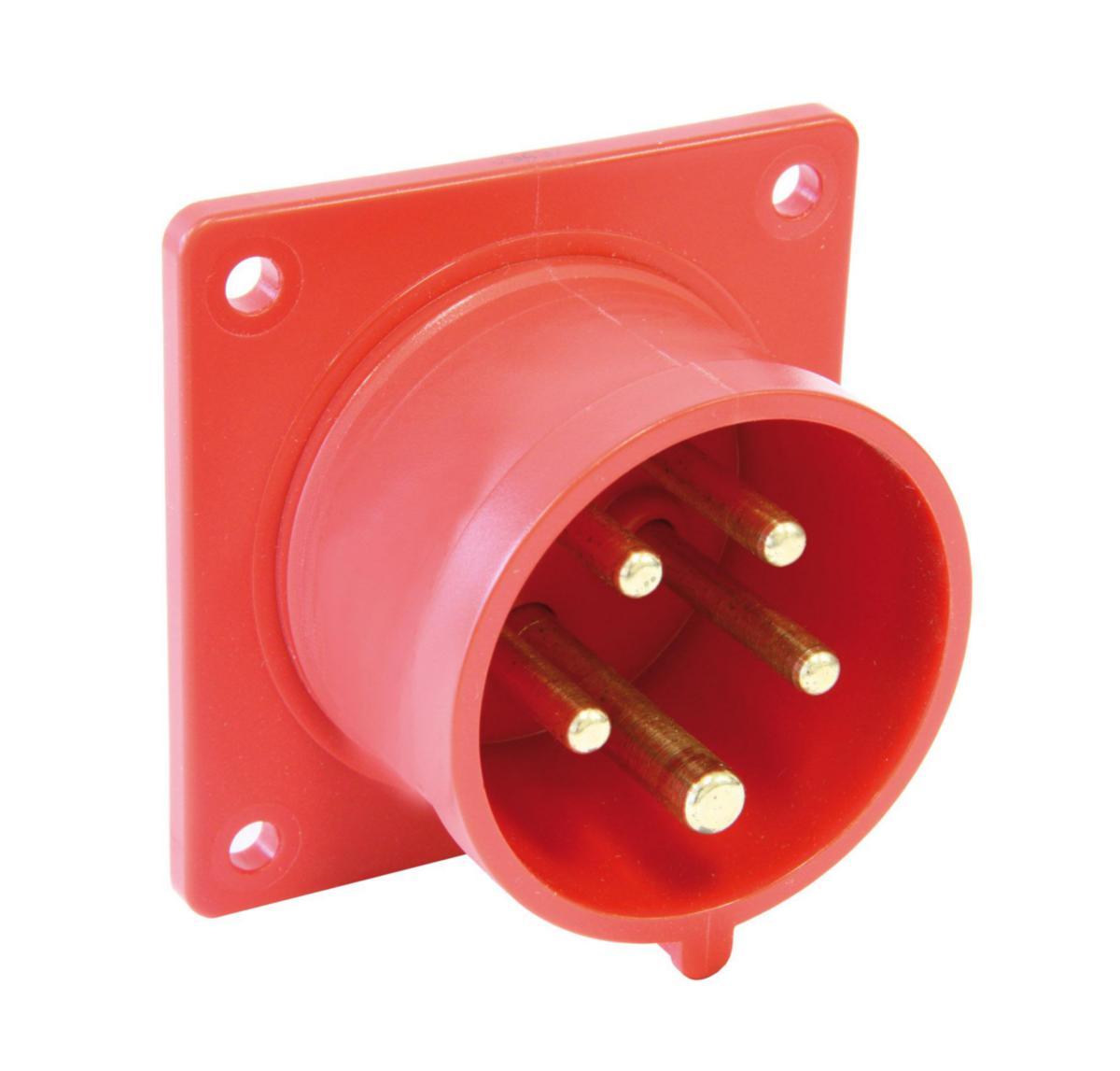

Panel intake Basic type II with straight attaching plate 16A
FLANGED PLUG STRAIGHT II 16A II 416–6 S
Article number: Suppl. article no:
2425298
2425298
to see price and stock
For panel mounting.
Connectable wire area 1.5-4 mm².
Protection class IP44.
Connectable wire area 1.5-4 mm².
Protection class IP44.
- Article number: 2425298
- Suppl. article no: 2425298
- Ean no: 7331185090764
- Material class QJ3400
Technical data
- Packagin Size: 1 ST/10 ST
- Type: II 416-6 S
- IEC-amperage: 16 A
- Identification colour: Red
- Number of poles: 5
- Clock hour position: 6 h
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Degree of protection (IP): IP44
- Flange size horizontal: 70 mm
- Flange size vertical: 70 mm
- Drill hole distance horizontal: 60 mm
- Drill hole distance vertical: 60 mm
- Insert direction: Straight
- Material: Plastic
- Connection system: Screwed terminal
- Military model: No
- Amperage according to UL/CSA (for UL-version): 20 A
- Cable entry: Other
- Rated voltage: 230-400 V
- RAL-number: 3000
- Rated frequency: 50-60 Hz
- REACH Date: 2021-06-15
- REACH Information obligation: No
- Clock time: 6/Red
- Colour code: 6/Red
