Garo

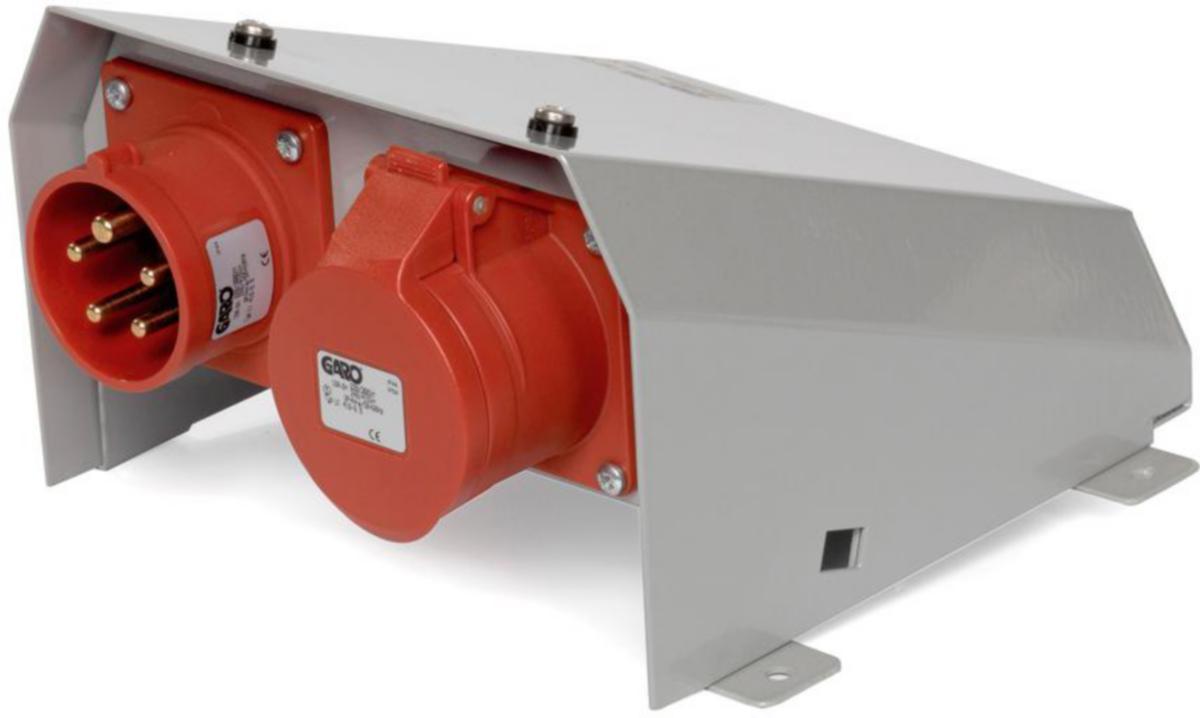

Shed connection box GBA, 4-Pole 16/32 A
INLETBOX MODULAR UNIT 16A GBA 416–6
Article number: Suppl. article no:
2469038
2469038
to see price and stock
Connection box for e.g. supply to sheds, made in aluminium-zinc plate and powder coated. Mounted with inlets and outlets and with 10mm² cross connection block. On the back there is a threaded hole with TET bushing Ø28 mm. Supplied with TET nipple 14-20.
- Article number: 2469038
- Suppl. article no: 2469038
- Ean no: 7331185078885
- Material class QJ6100
Technical data
- Packagin Size: 1 ST/32 ST/32 ST
- Type: GBA 416-6
- Model: Group distributor cabinet
- Rated voltage: 230/400 V
- Rated current: 16 A
- Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): 0
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of socket outlets with protective contact CEE 7/3 (type F): 0
- Number of poles main switch: 0
- Number of earth leakage switches 10 mA: 0
- Number of earth leakage switches 30 mA: 0
- Number of earth leakage switches 300 mA: 0
- Connected load: 11 kVA
- Number of meter panels: 0
- Number of miniature circuit breakers (MCB): 0
- Housing material: Sheet steel
- Width: 208 mm
- Depth: 204 mm
- Height: 137 mm
- Degree of protection (IP): IP44
- Main switch: None
- Main switch rated current: 0 A
- Number of socket outlets Swiss standard type 23: 0
- Number of socket outlets Swiss standard type 15: 0
- Number of socket outlets Swiss standard type 25: 0
- Number of socket outlets Swiss standard type 13: 0
- REACH Date: 2021-06-15
- REACH Information obligation: No
