Garo

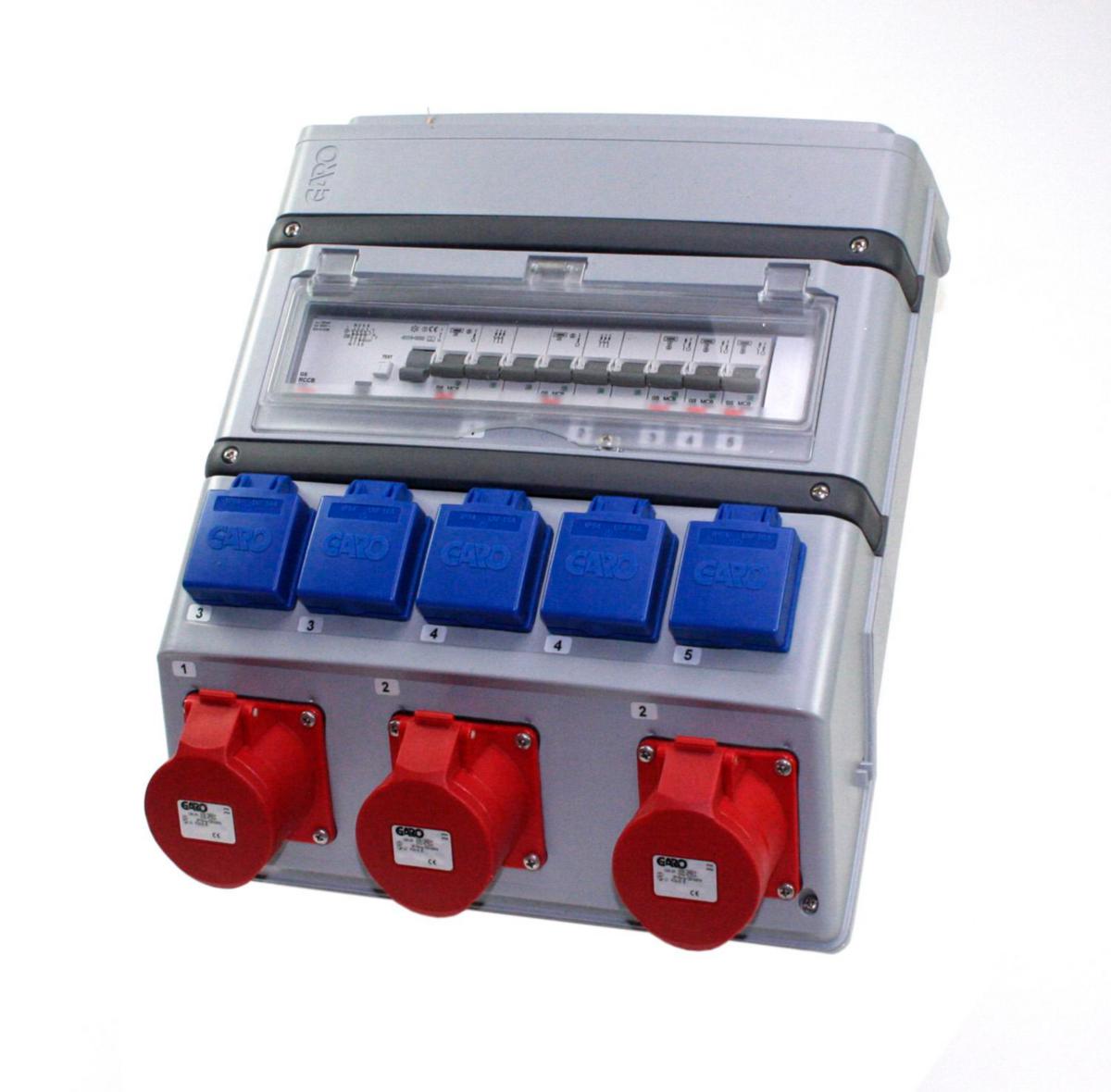

Socket box G-BOX-JFB
OUTLETBOX G-BOX 00305-RCCB 0
Article number: Suppl. article no:
2468802
2468802
to see price and stock
GARO socket box, G-box fitting according to the characteristics below. All G-boxes are fitted with terminals for connecting Cu 2 // 35mm². For Al cable connection, max. 1 // 50mm², pressure washer is used between Al and Cu cables. The plastic material in the G-box is in an environmentally friendly and chemical-resistant design.
- Article number: 2468802
- Suppl. article no: 2468802
- Ean no: 7331185045474
- Material class QJ4300
Technical data
- Type: G-BOX
- Design: IEC-Output 3pc 16A
- CEE socket outlet 16 A: 3x16A5p400V
- CEE socket outlet 32 A: None
- CEE socket outlet 63 A: None
- CEE socket outlet 125 A: None
- Number of socket outlets with protective contact CEE 7/3 (type F): 5
- Other fixtures and/or empty locations: 0
- Earth leakage switch: Earth leakage switch with IFN 30 mA (standard)
- Degree of protection (IP): IP44
- Housing material: Plastic
- Protection: Other
- Number of miniature circuit breakers (MCB): 5
- Power supply/connection possibility: Other
- Type of mains connection: Other
- Handling: Wall mounting

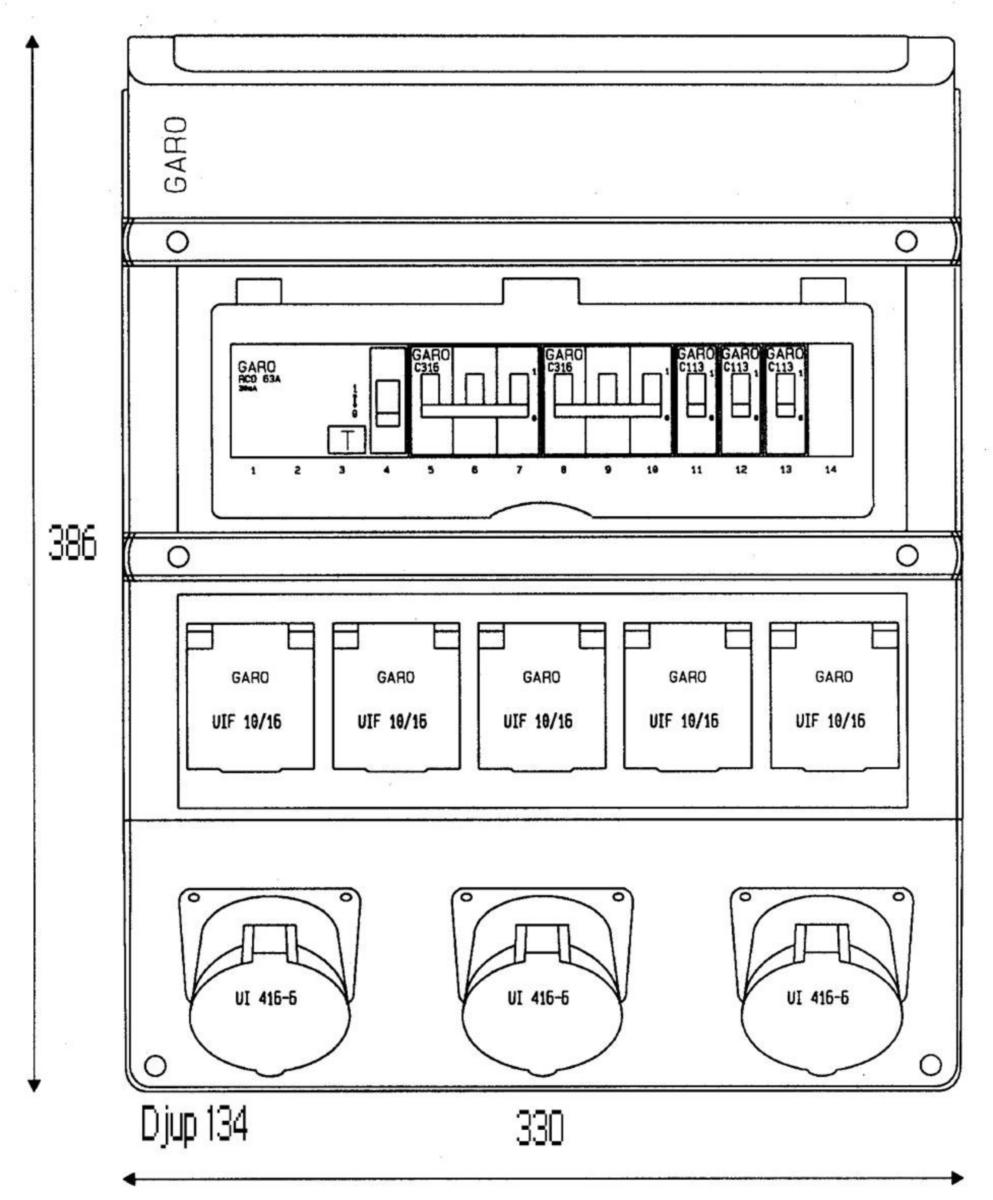

- Width: 330 mm
- Depth: 134 mm
- Height: 386 mm
- Colour: Grey
- Cable length: 0 m
- Military model: No
- Number of socket outlets Swiss standard type 15: 0
- Number of socket outlets Swiss standard type 23: 0
- Number of socket outlets Swiss standard type 13: 0
- REACH Date: 2021-06-15
- REACH Information obligation: No
- Number of socket outlets Swiss standard type 25: 0
