El-Björn
Socket distribution unit 16A
SOCKET OUTLET CABINET 0
Article number: Suppl. article no:
2467111
16 CA03 FI
to see price and stock

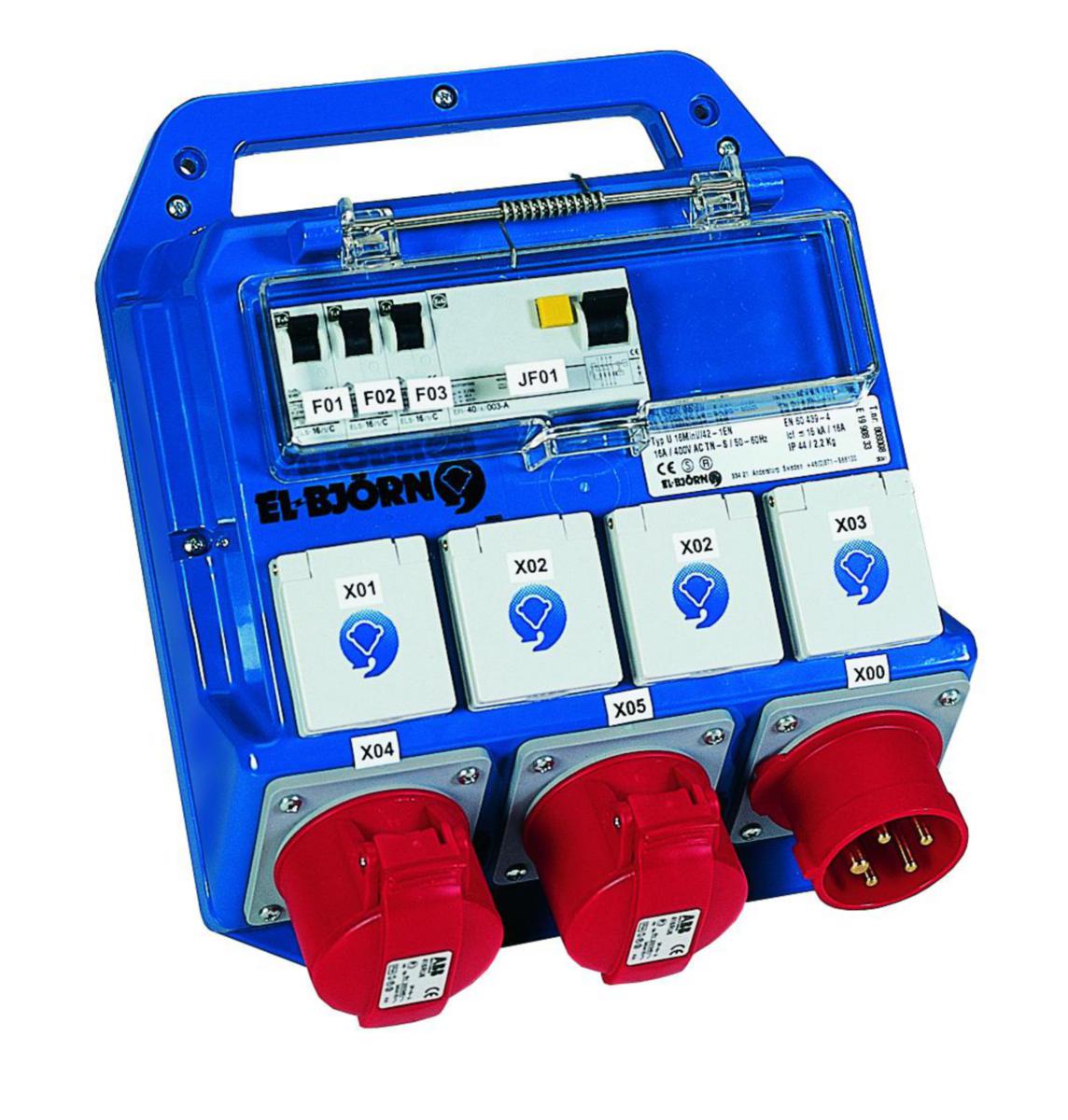

Smaller portable connection panel suitable for work on smaller building sites, renovation, refurbishment and extension work, etc. All sockets are protected by earth fault breakers of 30 mA. Made of impact resistant thermoplastic with self-closing safety cover of clear plastic. Fitted with a carrying handle and fastening holes. The sockets are protected with a miniature circuit breaker with C-characteristic. With the following socket types:
Incoming 5-pole/400V 16A CEE 416-6 1 pc.
Outgoing 2-pole/230V 16A Schuko Type F 4 pcs.
Outgoing 5-pole/400V 16A CEE 416-6 2 pcs.
Incoming 5-pole/400V 16A CEE 416-6 1 pc.
Outgoing 2-pole/230V 16A Schuko Type F 4 pcs.
Outgoing 5-pole/400V 16A CEE 416-6 2 pcs.
- Article number: 2467111
- Suppl. article no: 16 CA03 FI
- Ean no: 7392274671110
- Material class QJ6500
Technical data
- Packagin Size: 1 ST/48 ST/48 ST
- Type: U 16Mini//42-1 EN SEFI
- Design: Short circuit resistance lcf 17 kA
- Rated current: 16 A
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 2
- Number of socket outlets with protective contact CEE 7/3 (type F): 4
- Number of earth leakage switches 30 mA: 1
- Width: 270 mm
- Depth: 110 mm
- Height: 310 mm
- Degree of protection (IP): IP44
