Garo
Main distribution board 25A
TEMP POW MET UNIT 25A RCCB ZSF GB 25/00/01103-10
Article number: Suppl. article no:
2469016
2469016
to see price and stock
To shop with us, you need a registered company and a customer number.

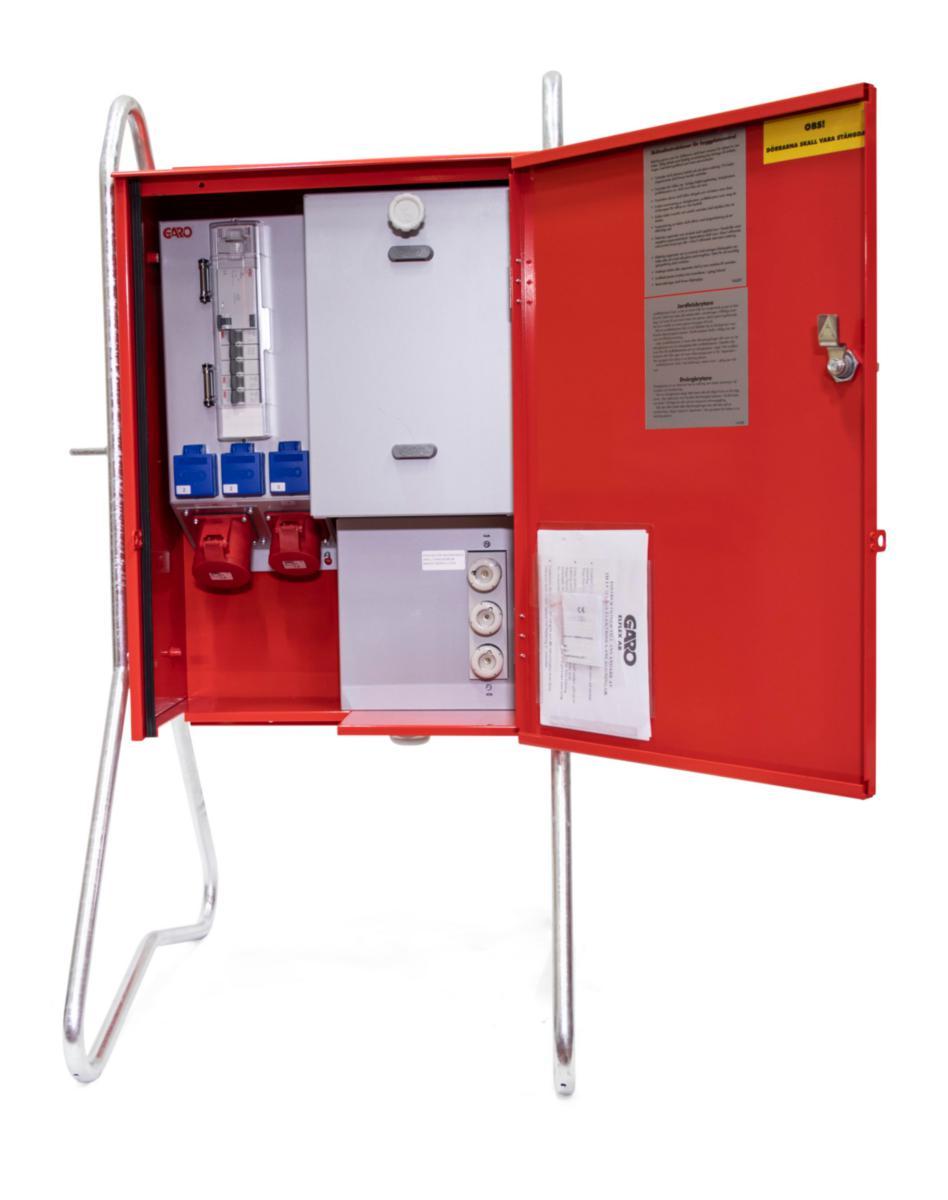

Main control panel 25A (HC25) is normally used in the construction of detached houses, villas, etc. The control panel is equipped with sockets 13-32A which are preceded by earth fault circuit breakers and circuit breakers. Equipped with hot-dip galvanized stand and lockable door.
- Article number: 2469016
- Suppl. article no: 2469016
- Ean no: 7331185078762
- Material class QJ6100
Technical data
- Type: ZSF GB 25/00/01103-10
- Model: Mobile end-distributor
- Rated voltage: 230/400 V
- Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): 0
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of socket outlets with protective contact CEE 7/3 (type F): 3
- Rated current: 25 A
- Number of poles main switch: 3
- Number of earth leakage switches 10 mA: 0
- Number of earth leakage switches 30 mA: 1
- Number of earth leakage switches 300 mA: 0
- Connected load: 17.3 kVA
- Number of meter panels: 1
- Number of miniature circuit breakers (MCB): 3
- Housing material: Sheet steel
- Width: 525 mm
- Depth: 650 mm
- Height: 1100 mm
- Degree of protection (IP): IP44
- Main switch: None
- Main switch rated current: 35 A
- Number of socket outlets Swiss standard type 15: 0
- Number of socket outlets Swiss standard type 23: 0
- Number of socket outlets Swiss standard type 13: 0
- REACH Date: 2021-06-15
- REACH Information obligation: No
- Number of socket outlets Swiss standard type 25: 0
