Garo

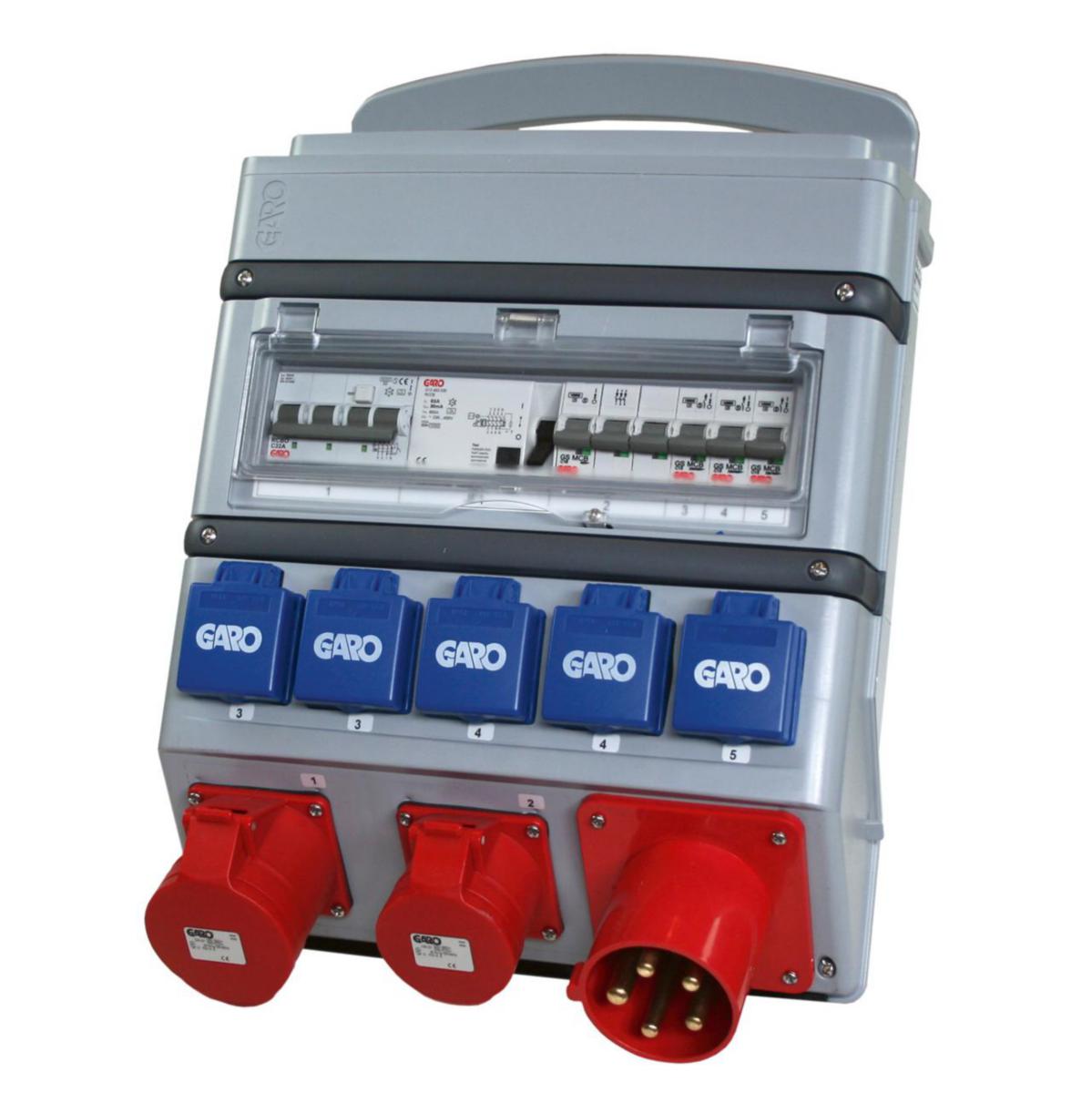

Socket outlet 63A with 5 Schuko sockets
POWERB GB 16A 01105 RCCB 1x32 1x16 5xSCHUKO
Article number: Suppl. article no:
2469008
2469008
to see price and stock
Portable electric cases/sub-connection panels 63A with the following socket types:
IEC-Output: 1 x 16A 3P+N+E 230/400V and 1 x 32A 3P+N+E 230/400V
IEC-Intake: 1 x 63A 3P+N+E 230/400V
IEC-Output: 1 x 16A 3P+N+E 230/400V and 1 x 32A 3P+N+E 230/400V
IEC-Intake: 1 x 63A 3P+N+E 230/400V
- Article number: 2469008
- Suppl. article no: 2469008
- Ean no: 7331185079455
- Material class QJ6100
Technical data
- Packagin Size: 1 ST/12 ST/12 ST
- Type: U GN 463-6/00/01105-20
- Model: Mobile end-distributor
- Rated voltage: 230/400 V
- Rated current: 63 A
- Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): 0
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of socket outlets with protective contact CEE 7/3 (type F): 5
- Number of poles main switch: 0
- Number of earth leakage switches 10 mA: 0
- Number of earth leakage switches 30 mA: 1
- Connected load: 43.6 kVA
- Number of meter panels: 0
- Number of miniature circuit breakers (MCB): 4
- Housing material: Plastic
- Width: 387 mm
- Depth: 120 mm
- Height: 330 mm
- Degree of protection (IP): IP44
- Main switch: None
- Main switch rated current: 0 A
- Number of socket outlets Swiss standard type 15: 0
- Number of socket outlets Swiss standard type 23: 0
- Number of socket outlets Swiss standard type 13: 0
- REACH Date: 2021-06-15
- REACH Information obligation: No
- Number of socket outlets Swiss standard type 25: 0
