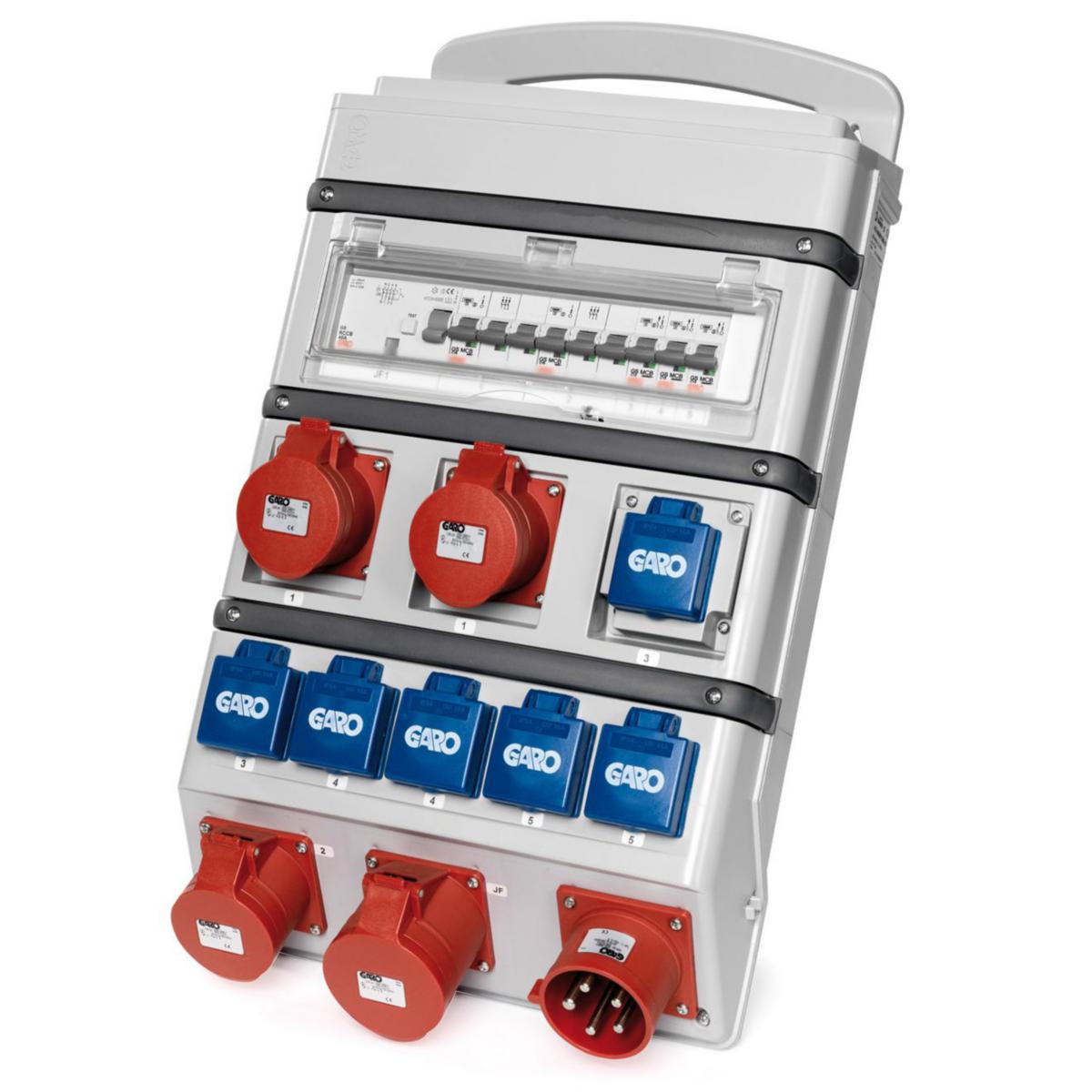

Socket outlet 32A - POWERB GB 32A 01306 RCCB 1x32 3x16 6xSCHUKO
Garo

Socket outlet 32A

POWERB GB 32A 01306 RCCB 1x32 3x16 6xSCHUKO
Article number:
2469007
Suppl. article no:
2469007
‌
‌
‌
‌
‌
 to see price and stock
Portable electric cases/sub-connection panels 32A for different purposes, such as distribution with different numbers of sockets, for containers, etc. With the following socket types:
IEC-Intake 1pc 32A 3P+N+E 230/400V
IEC-Uttag 3 pcs.16A 3P+N+E 230/400V and 1 pc. 32A 3P+N+E 230/400V
  • Article number:
    2469007
  • Suppl. article no:
    2469007
  • Ean no:
    7331185079448
  • Material class
    QJ6100
Technical data
  • Packagin Size: 1 ST/12 ST/12 ST
  • Type: U GBN
  • Model: Mobile end-distributor
  • Rated voltage: 230/400 V
  • Rated current: 32 A
  • Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N): 0
  • Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): 0
  • Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): 0
  • Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 3
  • Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): 0
  • Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 1
  • Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): 0
  • Number of CEE socket outlets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): 0
  • Number of socket outlets with protective contact CEE 7/3 (type F): 6
  • Number of poles main switch: 0
  • Number of earth leakage switches 10 mA: 0
  • Number of earth leakage switches 30 mA: 1
  • Number of earth leakage switches 300 mA: 0
  • Connected load: 22 kVA
  • Number of meter panels: 0
  • Number of miniature circuit breakers (MCB): 5
  • Housing material: Plastic
  • Width: 512 mm
  • Depth: 120 mm
  • Height: 330 mm
  • Degree of protection (IP): IP44
  • Main switch: None
  • Main switch rated current: 0 A
  • Number of socket outlets Swiss standard type 23: 0
  • Number of socket outlets Swiss standard type 15: 0
  • Number of socket outlets Swiss standard type 25: 0
  • Number of socket outlets Swiss standard type 13: 0
  • REACH Date: 2021-06-15
  • REACH Information obligation: No
