Garo

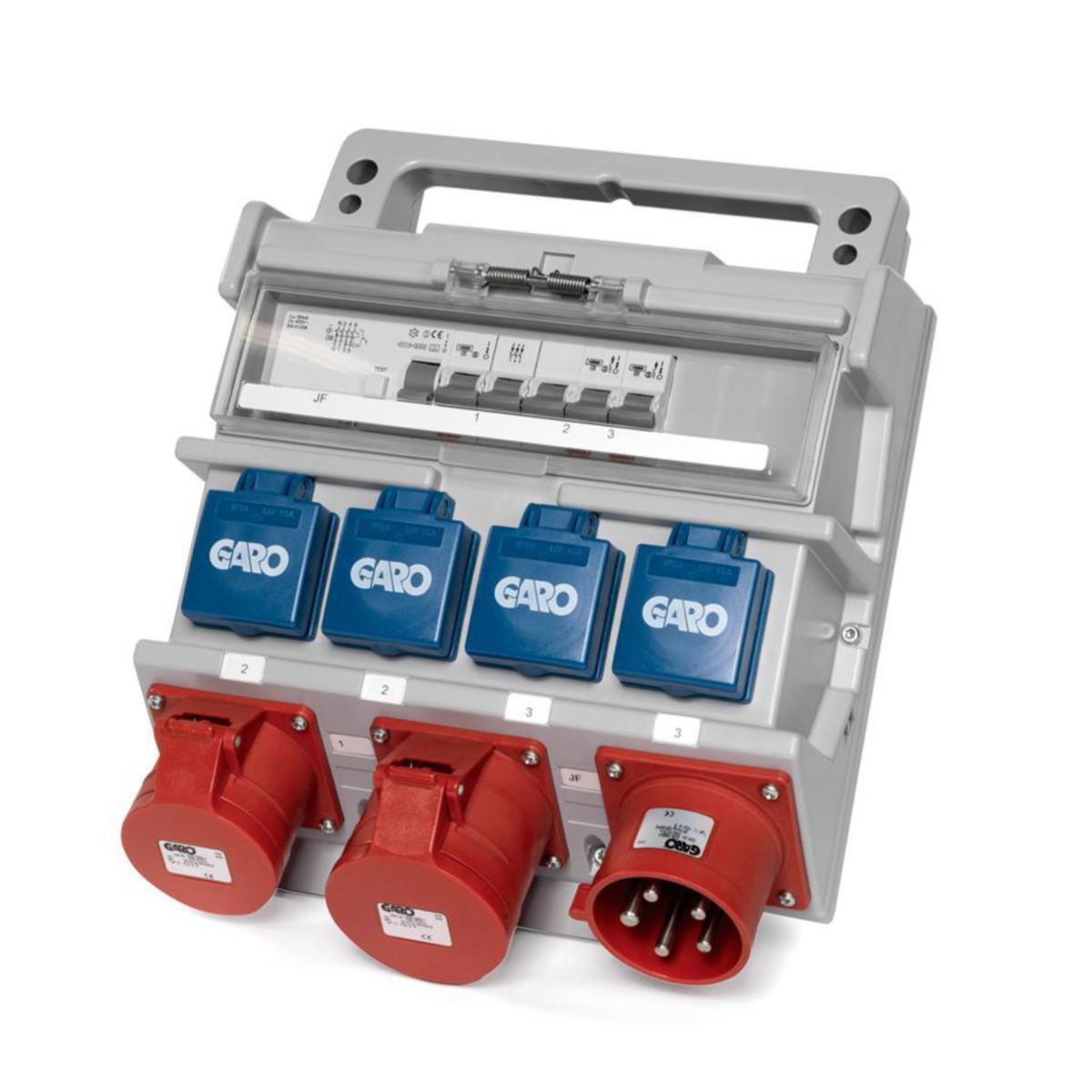

Socket distributor 32A
POWERB 32A 01104-2S RCCB U GBL 432-6/00/01104-10
Article number: Suppl. article no:
2468977
2468977
to see price and stock
Type U GBL is a plastic encapsulation formed as a bag, but which is also suited for wall mounting and which can be mounted in a steel box of type LBS 16-6. One version is also suited for relaying.
- Article number: 2468977
- Suppl. article no: 2468977
- Ean no: 7331185067148
- Material class QJ6101
Technical data
- Packagin Size: 1 ST/60 ST/60 ST
- Type: U GBL 432-6/00/01104-10
- Model: Mobile end-distributor
- Rated voltage: 230/400 V
- Rated current: 32 A
- Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): 0
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 1
- Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of socket outlets with protective contact CEE 7/3 (type F): 4
- Number of poles main switch: 0
- Number of earth leakage switches 10 mA: 0
- Number of earth leakage switches 30 mA: 1
- Number of earth leakage switches 300 mA: 0
- Connected load: 22 kVA
- Number of meter panels: 0
- Number of miniature circuit breakers (MCB): 3
- Housing material: Plastic
- Width: 275 mm
- Depth: 120 mm
- Height: 330 mm
- Degree of protection (IP): IP44
- Main switch: None
- Main switch rated current: 0 A
- Number of socket outlets Swiss standard type 23: 0
- Number of socket outlets Swiss standard type 15: 0
- Number of socket outlets Swiss standard type 25: 0
- Number of socket outlets Swiss standard type 13: 0
- REACH Date: 2021-06-15
- REACH Information obligation: No
