Mennekes
Central AMAXX

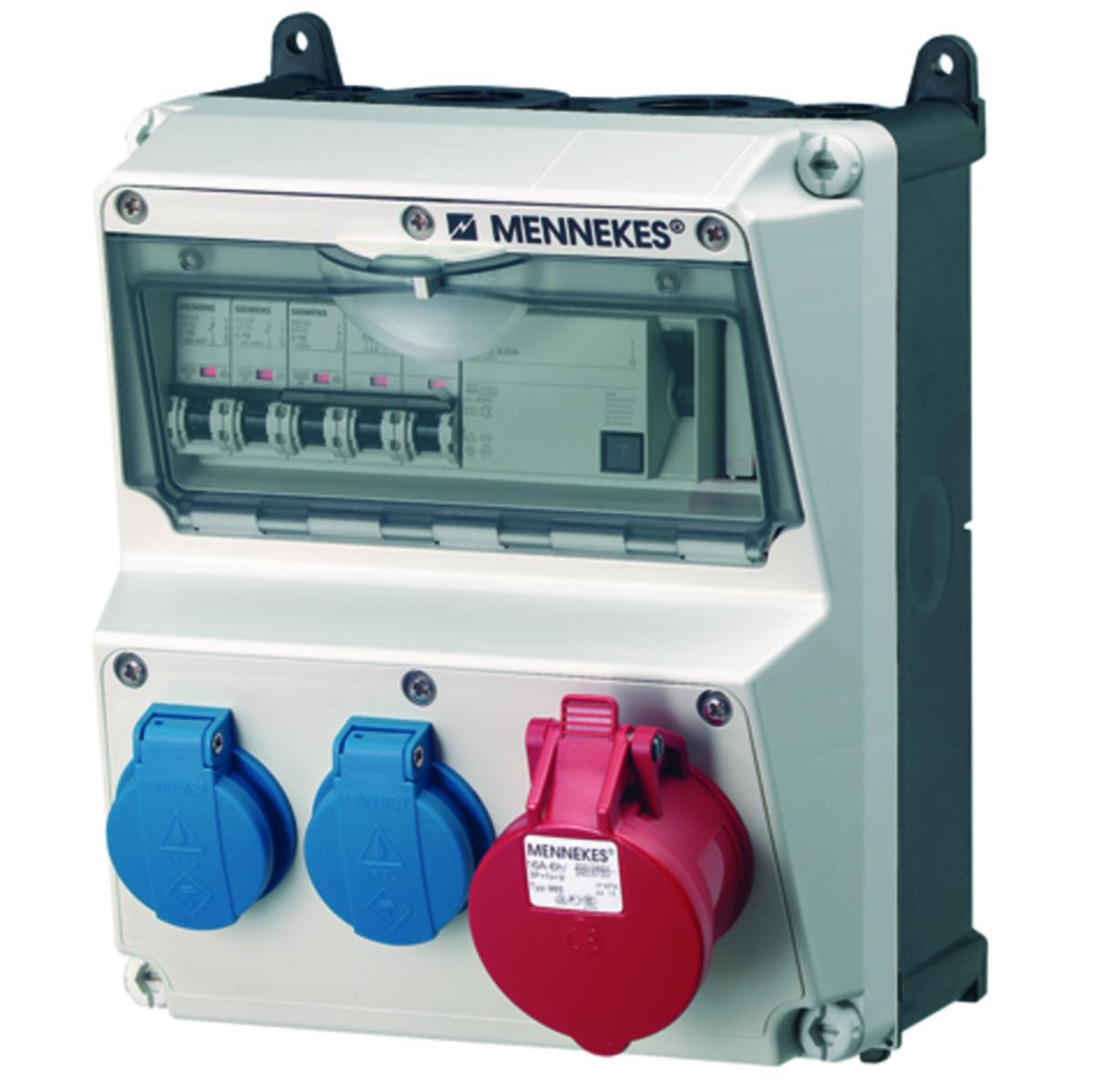

DISTRIB. AMAXX 1XCEE 2XSCHUKO 920009
Article number: Suppl. article no:
2466456
920009
to see price and stock
Terminal outlets AMAXX ready for installation. The electrical gray of the housing RAL 7035 with double screws. Fuses mounted on pull out DIN rails behind transparent windows. Lockable.
- Article number: 2466456
- Suppl. article no: 920009
- Material class QJ690B
Technical data
- Packagin Size: 1 ST/44 ST/44 ST
- CEE socket outlet 16 A: 1x16A5p400V
- CEE socket outlet 32 A: None
- CEE socket outlet 63 A: None
- CEE socket outlet 125 A: None
- Number of socket outlets with protective contact CEE 7/3 (type F): 2
- Other fixtures and/or empty locations: 0
- Earth leakage switch: Earth leakage switch with IFN 30 mA (standard)
- Degree of protection (IP): IP44
- Housing material: Plastic
- Protection: Overcurrent switch
- Power supply/connection possibility: 1 cable (branch line)
- Handling: Wall mounting
- Width: 225 mm
- Depth: 209 mm
- Height: 260 mm
- Colour: Grey
- Military model: No
- REACH Date: 2021-12-03
- REACH Information obligation: No
