Socket distributor 16/32 A
BUILDING CENTER ELECTR. BAG16A WITH EARTH LEAKAGE SWITCH
Article number: Suppl. article no:
2466232
3518261
to see price and stock

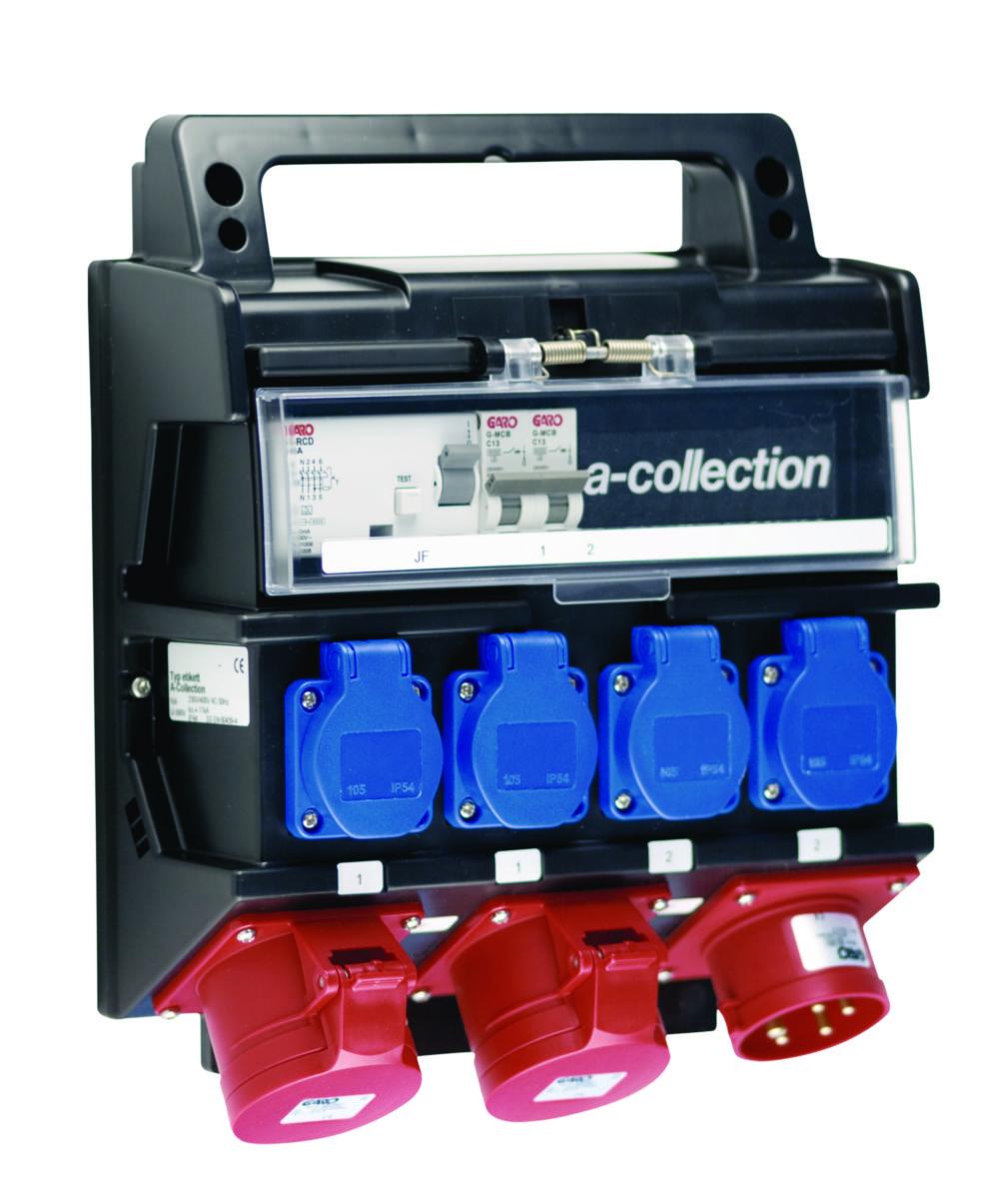

Construction panel, bag model, with impact-resistant plastic housing. Can also be placed on the wall. Equipped with 1 416-6 intake, 4 Schuko outlets with 13A fusing, and 2 416-6 outlets.
- Article number: 2466232
- Suppl. article no: 3518261
- Ean no: 7350027272342
- Material class QJ6400
Technical data
- Packagin Size: 1 ST/60 ST/60 ST
- Model: Mobile end-distributor
- Rated voltage: 400 V
- Rated current: 16 A
- Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): 0
- Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): 2
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): 0
- Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of CEE socket outlets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): 0
- Number of socket outlets with protective contact CEE 7/3 (type F): 4
- Number of poles main switch: 0
- Number of earth leakage switches 10 mA: 0
- Number of earth leakage switches 30 mA: 1
- Number of earth leakage switches 300 mA: 0
- Number of meter panels: 0
- Number of miniature circuit breakers (MCB): 2
- Housing material: Plastic
- Width: 275 mm
- Depth: 120 mm
- Height: 330 mm
- Degree of protection (IP): IP44
- Main switch: None
- Main switch rated current: 0 A
- Number of socket outlets Swiss standard type 15: 0
- Number of socket outlets Swiss standard type 23: 0
- Number of socket outlets Swiss standard type 13: 0
- Number of socket outlets Swiss standard type 25: 0
