Plinth profiles PN-series
TERM PROF-PN TUBE POST 60Ø S PNFE-60
Article number: Suppl. article no:
2449204
352982
to see price and stock
To shop with us, you need a registered company and a customer number.

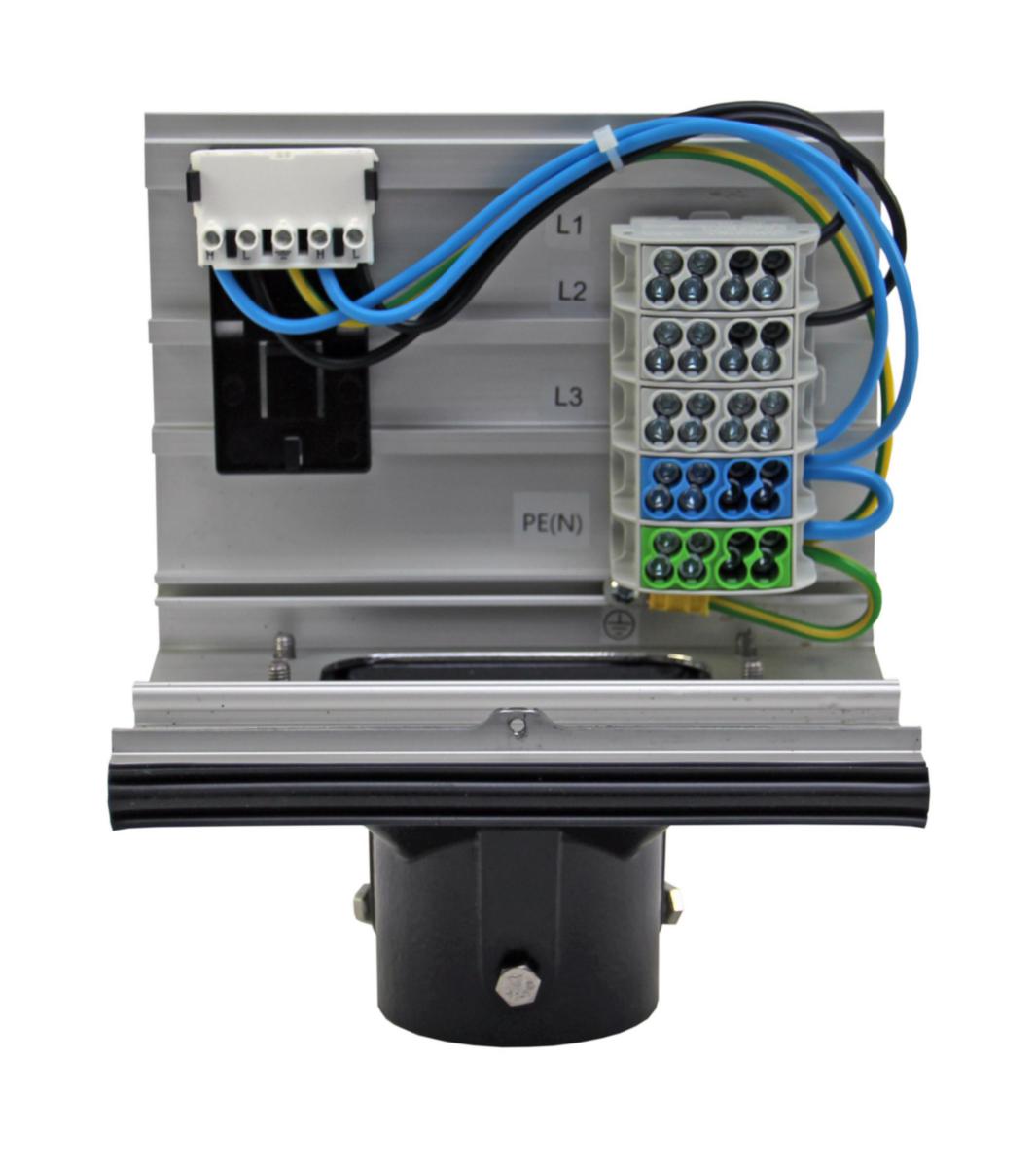

Terminal profiles for car heating plants & camping racks. The terminal profile contains all the wiring needed to connect the insert to the electricity. The terminal profile is mounted on the post, the housing is mounted on the terminal profile and finally the insert is connected with a simple quick coupling. Equipped with installation-friendly incoming terminal 25mm2 prepared for further supply 16mm2 Al / Cu. The terminal profile is not suitable for older variants of P100 enclosure.
- Article number: 2449204
- Suppl. article no: 352982
- Ean no: 7331185164205
- Material class QJ5100
Technical data
- Packagin Size: 1 ST/45 ST/45 ST
- Width: 180 mm
- Depth: 140 mm
- Length: 130 mm
- Mounting method: Universal
- Colour: Grey
- Degree of protection (NEMA): Other
- Operating temperature: -35-65 °C
- Mounting in the soil: No
- Surface protection: Lacquered
- Number of inlets: 1
- Mounting under water: No
- Degree of protection (IP): IP20
- Material: Aluminium
- Rated insulation voltage Ui: 0 V
- Diameter: 60 mm
- Max. conductor cross section: 0 mm²
- Equipped with: Other
- Inlet from the rear: No
- Connectable: No
- Weatherproof: Yes
- Cover model: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Shape: Other
- For Ex-zone gas: None
- For tube diameter: Other
- Castable: No
- Casting compound included: No
- Halogen free: Yes
- With screening: No
- Sealable: No
- Cover attachment: Other
- Transparent cover: No
- Type of housing feed-through: Pipe socket
- REACH Date: 2021-06-15
- REACH Information obligation: No
- Circuit integrity: None
