Eldon Installation
Knife-blade fuses - 3-pole HPK
FUSE BOX HKSB 160-00 HKSB160-00
Article number: Suppl. article no:
2353962
HKSB160-00
to see price and stock
To shop with us, you need a registered company and a customer number.
Knife fuses HKSB are equipped with frame clamps. The Al conductor can be connected by changing the connection clamps. Dividable gables in the upper and lower side of sizes from 160A.
- Article number: 2353962
- Suppl. article no: HKSB160-00
- Ean no: 7333189002965
- Material class QM170B
Technical data
- Packagin Size: 1 ST/8 ST/32 ST/39 ST
- Type: HKSB160-00
- Design: Plate encased
- Number of poles: 3
- Rated current: 160 A
- Construction size: NH00
- Width: 275 mm
- Height: 330 mm
- Depth: 180 mm

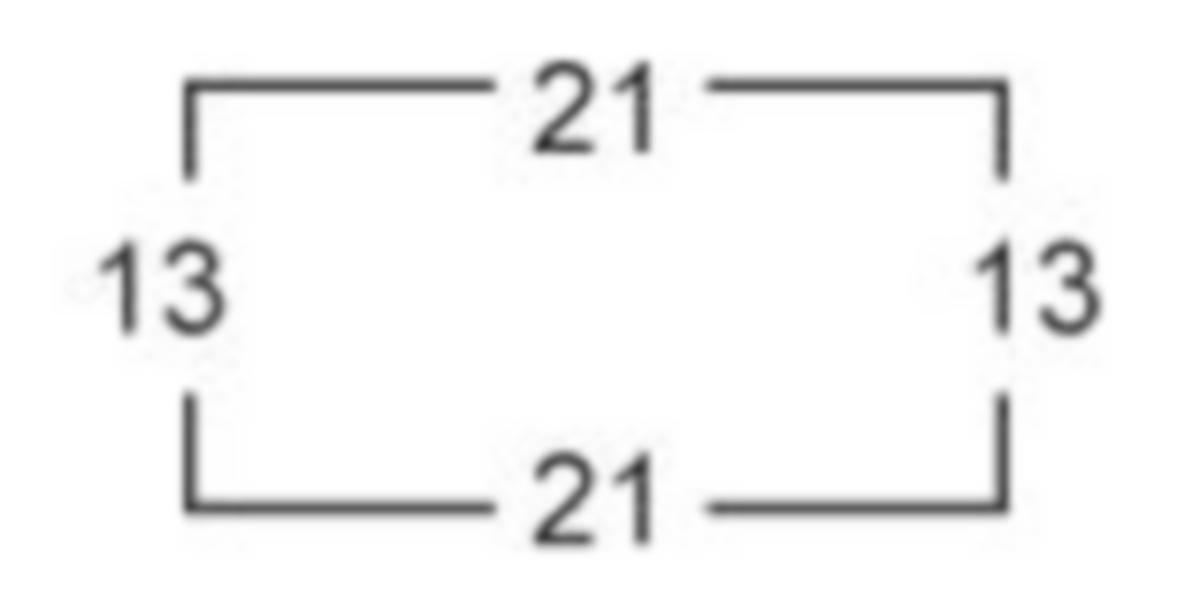

- Number of flanges: 2 x FL13 + 2 x FL21
- Number of groups: 1
- Degree of protection (IP): IP43
- Housing material: Steel
- Weight: 8.8 kg
- Fuse size: 00
