Service board SDCS

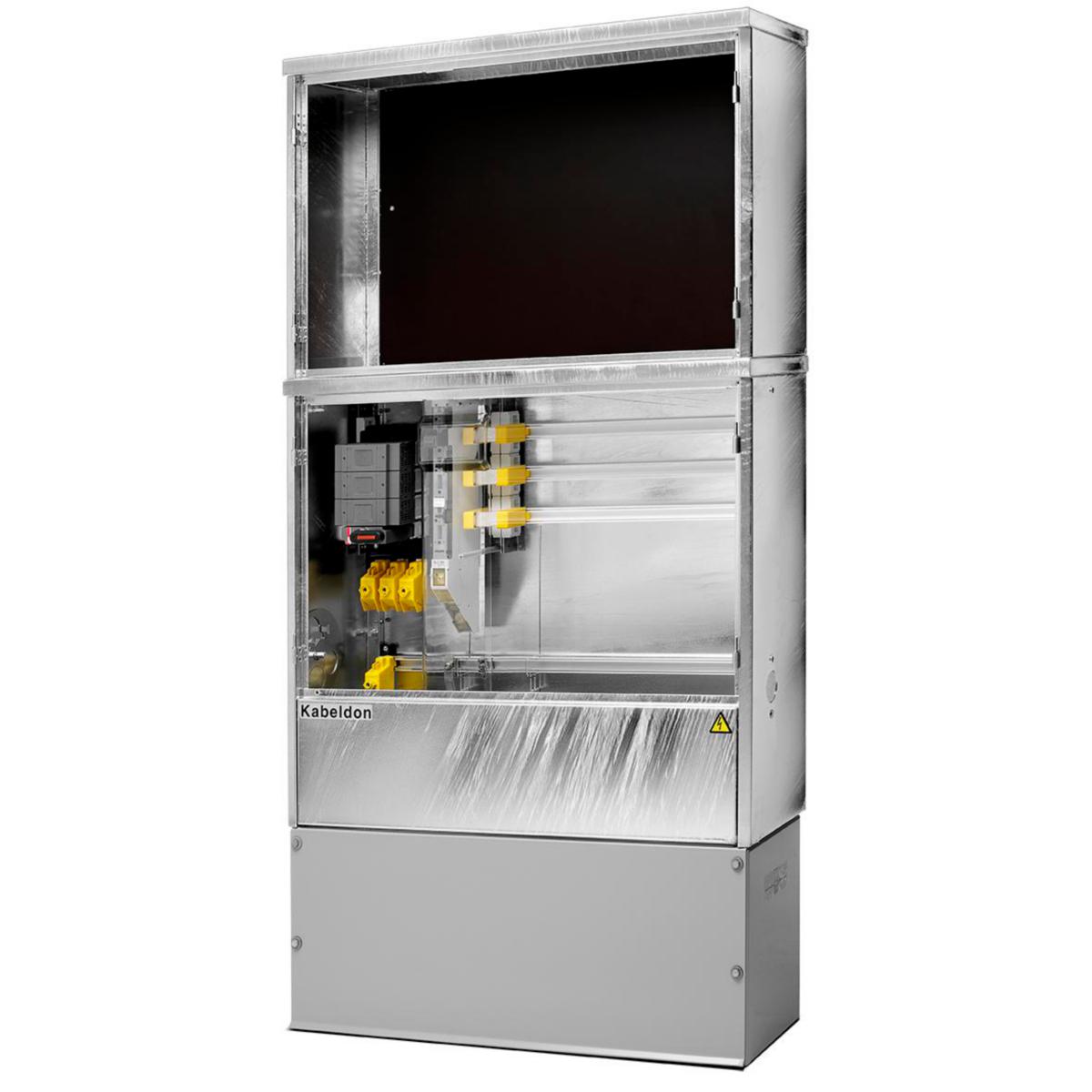

SERVICE BOARD SDCS 35543 FÖR TRANSFORMATORMÄTNING
Artikelnummer: Lev. artikelnr:
2396317
2CGD000364A1000
för att se saldo och pris
Pre-assembled service center for transformer measurement. Including all components required to be able to connect service cables and mount current transformers, short-circuit terminals and meters. Foundations are made as an option based on where the layout is to take place. Adapted for TN-C-S. Suitable fuse NH1, NH2. Rail size of traffic kit 30x10mm.
- Article number: 2396317
- Suppl. article no: 2CGD000364A1000
- Ean no: 7331980053124
- Material class QM230B
Teknisk data
- Packagin Size: 1 ST/1 ST/1 ST
- Type: SDCS 35543
- Design: 1 x main switch rated current 355 A.
- Nominal voltage: 400 V
- Nominal current: 355 A
- Colour: Other
- Width: 996 mm
- Height: 1523 mm
- Depth: 312 mm
- Mounting: Pedestal (in-ground mounting)
- Equipped with busbar: Yes
- Material: Steel
- Surface protection: Galvanised
- Degree of protection (IP) cabinet: IP34
- Number of poles: 4
- Degree of protection (IP) busbar: IP20
- Equipped with connectors: Yes
- With earthing: No
- With stand (base): No
- With floor plate: No
- With mounting plate: No
- REACH Date: 2020-01-16
- REACH Information obligation: No
