Schneider Electric
Kaedra with standard slots
KAEDRA ENCLOSURE 2X12 MOD 13433
Article number: Suppl. article no:
2289107
13433
to see price and stock

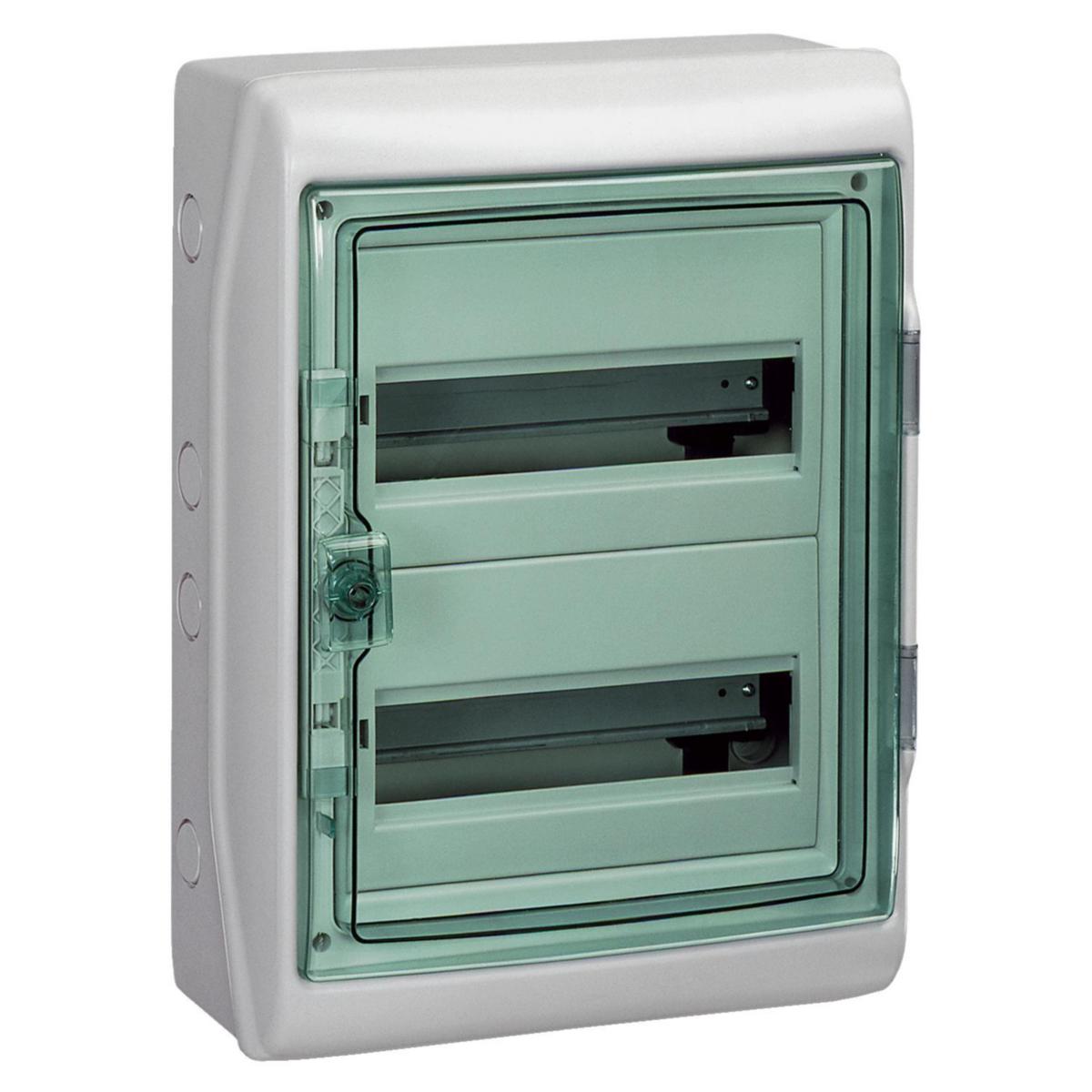

Surface mounted enclosure IP65 is equipped with standard slots designed for 12 or 18 models. It is equipped with neutral and ground bar, has light green transparent door. It can be assembled with accessories with other enclosures in the series. The upper and lower sides are equipped with knock outs of different sizes that can be provided with cable glands
- Article number: 2289107
- Suppl. article no: 13433
- Ean no: 3303430134336
- Material class QL570B
Technical data
- Packagin Size: 1 ST/28 ST/28 ST
- Type: 13433
- Product series: Kaedra
- Mounting method: Surface mounted
- Width in number of modular spacings: 12
- Number of rows: 2
- Number of modules: 24
- Width: 340 mm
- Height: 460 mm
- Depth: 160 mm
- Colour: Grey
- DIN-rail: Yes
- Degree of protection (IP): IP65
- RAL-number: 7035
- Housing material: Plastic
- Inner depth: 88 mm
- With lock: No
- Cover model: Closed
- Transparent cover/door: Yes
- Type of closure: Cylinder
- With mounting plate: No
- Type of covering: Door
- EMC-version: No
- Extension possible: Yes
- Earthing terminal block: Yes
- Neutral terminal block: Yes
- Signal passing door: Yes
- REACH Date: 2022-07-20
- GWP-tot (A1-A3): 16,8793 kgCO2e/ST
- N+PE rails: 2 pcs 11x10+11x16mm
- REACH Information obligation: No
