Hager
Meter block QM. Hager

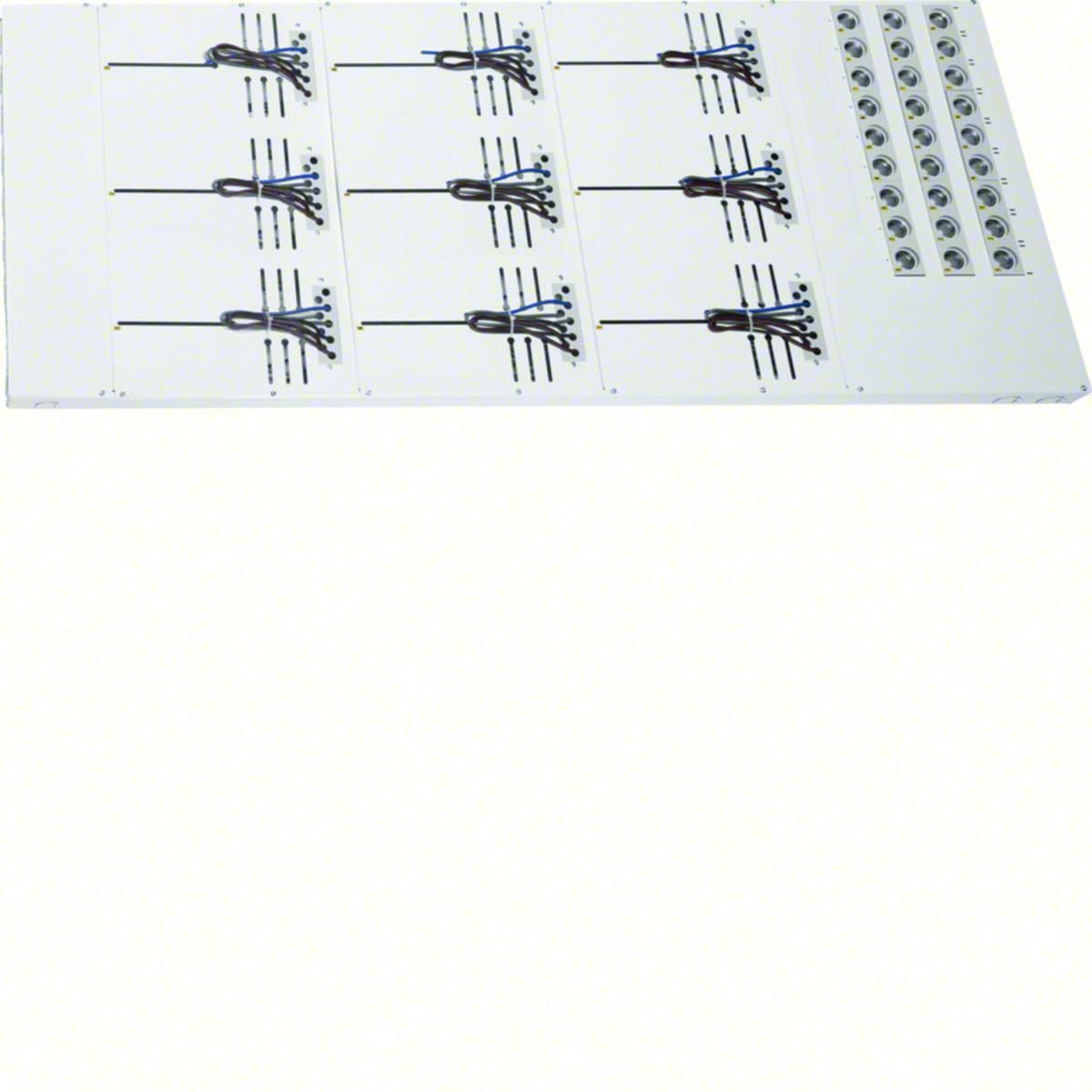

METER BLOCK 9 LOCATIONS QM33
Article number: Suppl. article no:
2290612
QM33
to see price and stock
The meter blocks are available in four different variants (4, 6, 6 and 9 places) which together with meter boards provide all the necessary combination possibilities. The blocks are delivered with fuse holders for meter fuses as standard, but can advantageously be equipped with selective miniature circuit breakers, 16–25 A, as meter fuses. The dashboards can be equipped with a main switch.
- Article number: 2290612
- Suppl. article no: QM33
- Ean no: 3250612790203
- Material class QM090B
Technical data
- Number of meter boards: 9
- With wiring: Yes
- Number of distributor rows: 3
- Width: 640 mm
- Depth: 62 mm
- Height: 1556 mm
- Colour: White
- RAL-number: 9010
- REACH Date: 2021-06-16
- Extension piece: No
- REACH Information obligation: No
