Eldon Installation
Fuse circuit breaker NUL
FUSE SW DISCONN. 00/160A NUL160N
Article number: Suppl. article no:
2251982
NUL160N
to see price and stock

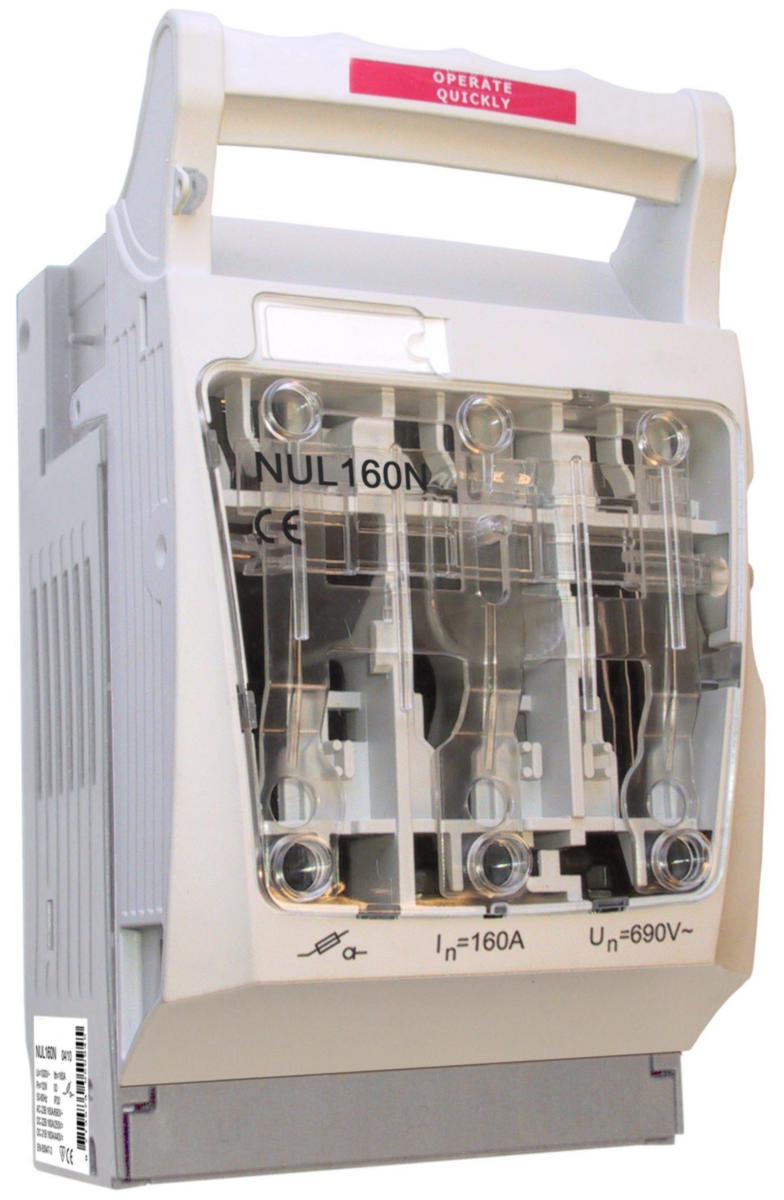

Fuse disconnector in touch-protected design with cover and handle. For knife fuses size 00. Mounted on mounting plate with screw.
- Article number: 2251982
- Suppl. article no: NUL160N
- Ean no: 7333189003658
- Material class QM170B
Technical data
- Type: NUL 160N
- Number of poles: 3
- Conditioned rated short-circuit current Iq: 80 kA
- Rated permanent current Iu: 160 A
- Max. rated operation voltage Ue AC: 690 V
- Version as main switch: Yes
- Type of electrical connection of main circuit: Cable clamp
- Suitable for busbar mounting: No
- Suitable for floor mounting: No
- Motor drive integrated: No
- Version as emergency stop installation: No
- Motor drive optional: No
- Version as safety switch: Yes
- Type of control element: Cover grip
- Suitable for fuses: NH00
- Suitable for front mounting: Yes
- With error protection: No
