Schneider Electric

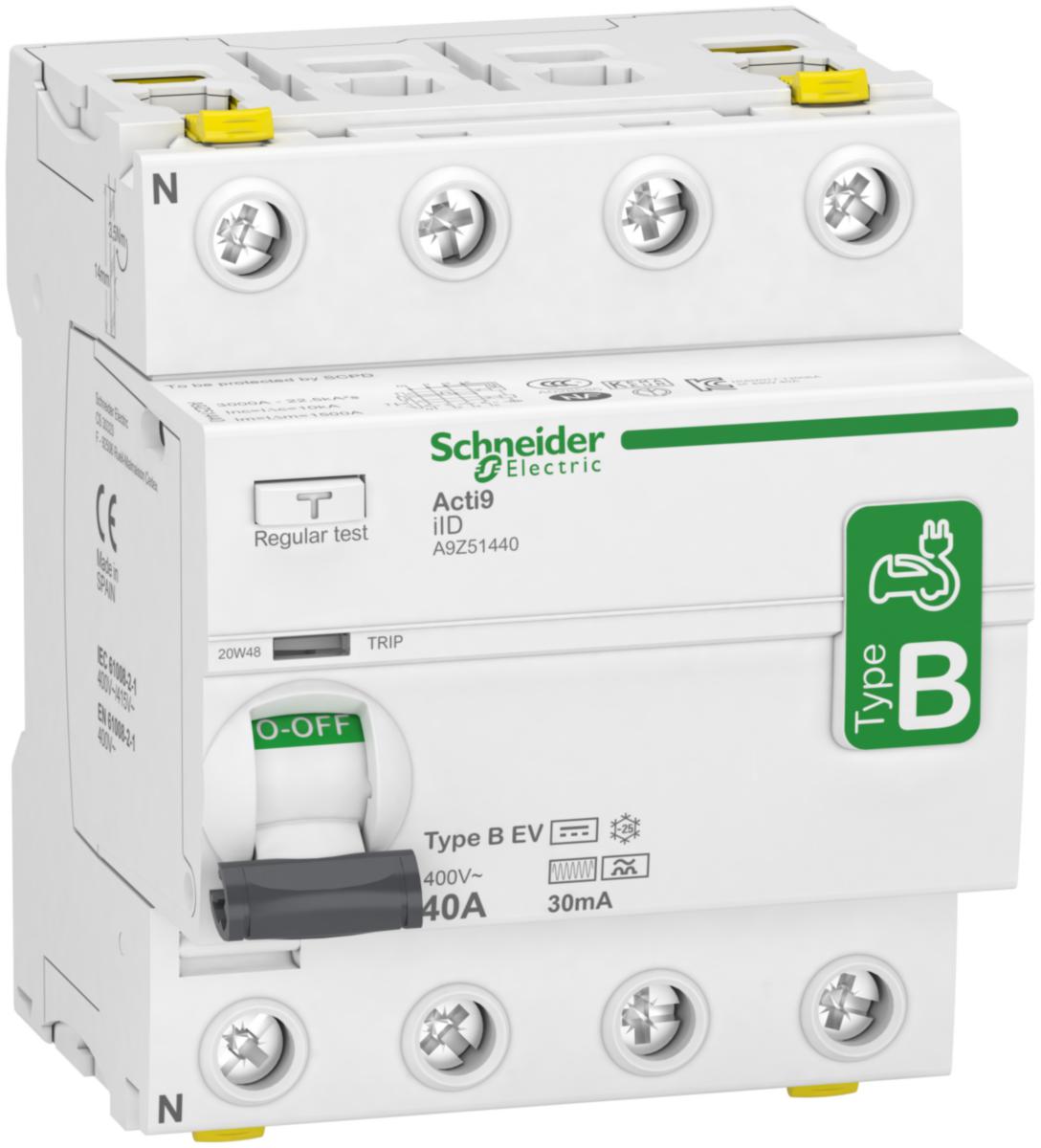

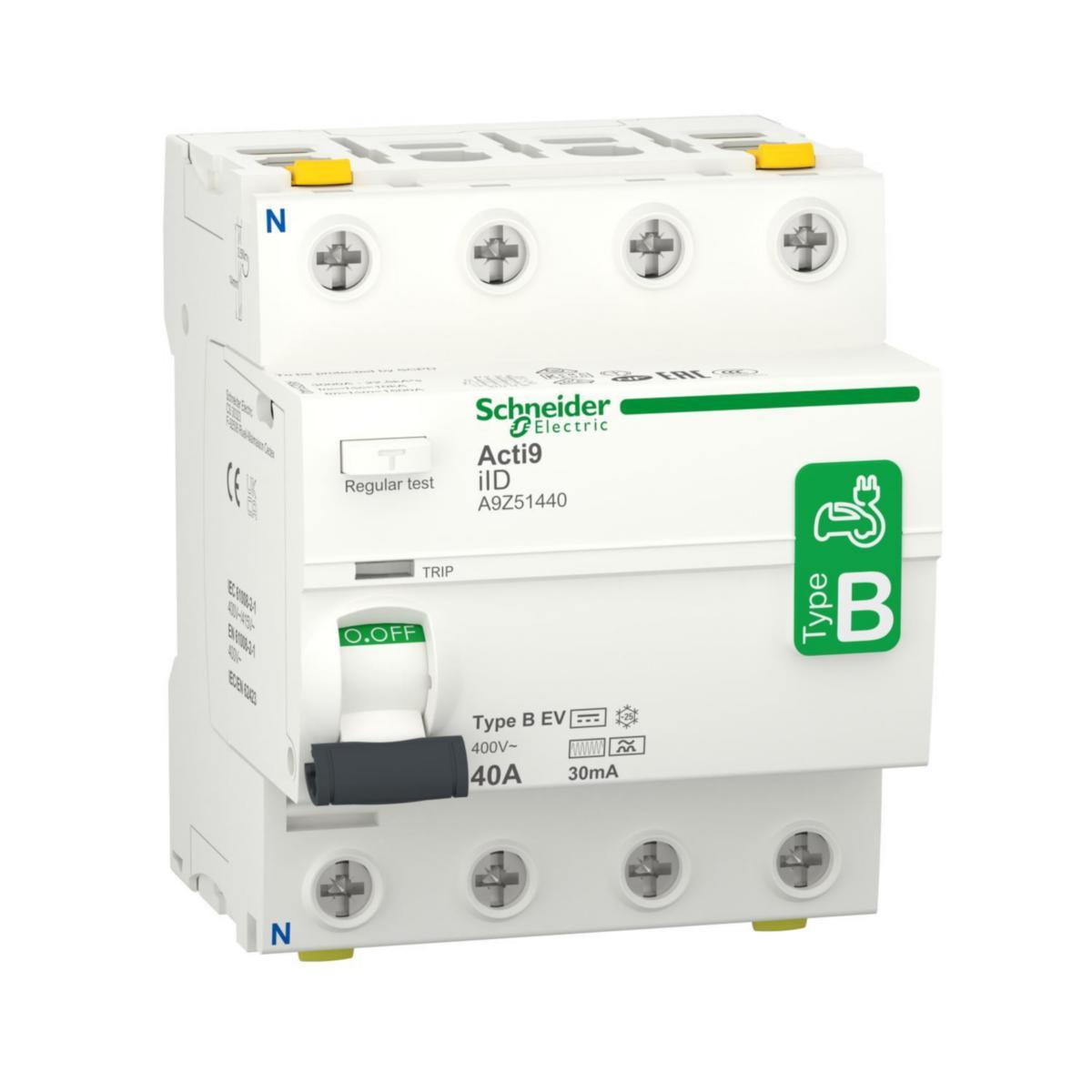

Ground fault circuit interrupter Acti9 2/4-pole type B-EV
RCCB 4P 40A 30MA B EV TYPE A9Z51440
Article number: Suppl. article no:
2165228
A9Z51440
to see price and stock
![Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras. Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.](/globalassets/site-images/sv_icons/step/accepteras.png)
![Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen. Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.](/globalassets/site-images/sv_icons/step/reachinformationrequestobligation.png)
Earth fault circuit breakers type B-EV are used in applications with car chargers as direct currents may occur. (EV = Electric Vehicle). Rated voltage 230V, 50Hz. Standard: IEC / EN 61008-2-1, IEC / EN 62423, IEC 61543, VDE 0664.
- Article number: 2165228
- Suppl. article no: A9Z51440
- Ean no: 3606489502799
- Material class QL5400
Technical data
- Packagin Size: 1 ST/27 ST
- Type: A9Z51440
- Leakage current type: B
- Number of poles: 4
- Rated voltage: 400 V
- Rated current: 40 A
- Rated fault current: 0.03 A
- Built-in depth: 44 mm
- Width in number of modular spacings: 4
- Surge current capacity: 3 kA
- Selective protection: No
- Frequency: 50 Hz
- Short-time delayed tripping: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Connectable conductor cross section solid-core: 1-35 mm²
- Connectable conductor cross section multi-wired: 1-25 mm²
- Mounting method: DIN rail
- Pollution degree: 3
- Rated impulse withstand voltage Uimp: 6 kV
- Rated insulation voltage Ui: 500 V
- Ambient temperature during operating: -25-60 °C
- With interlocking device: Yes
- Product series: Acti 9
- REACH contains candidate substances: Bly
- REACH Date: 2022-07-20
- REACH Information obligation: Yes
