Hager
Impulse relays EPN

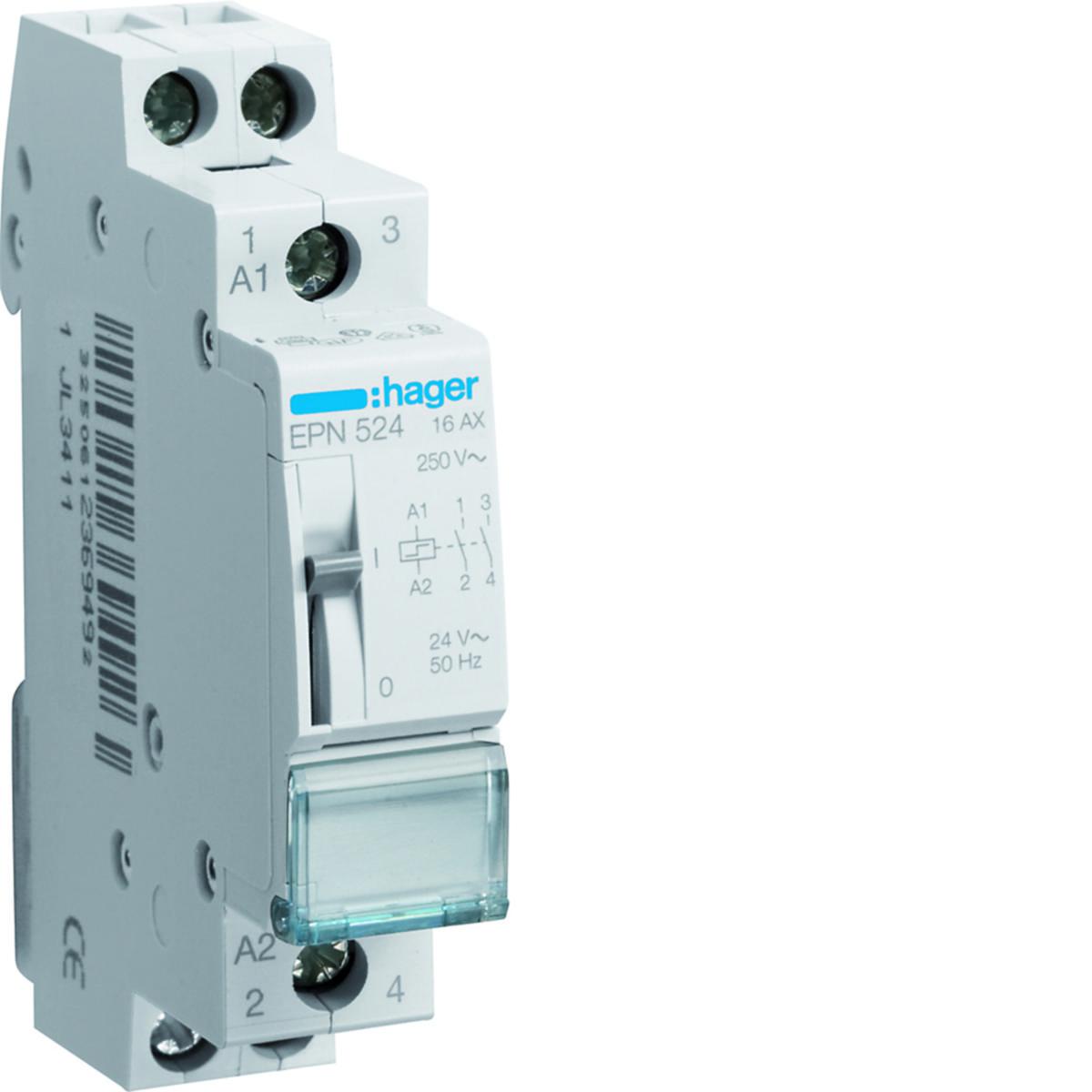

LATCHING RELAY 2NO 24V
Article number: Suppl. article no:
4028474
EPN524
to see price and stock
Impulse delay is also called bistable relay. Controlled via pulse from e.g. push button. For smaller loads like lighting, etc. Equipped with position indicator and hand switch.
- Article number: 4028474
- Suppl. article no: EPN524
- Ean no: 3250612369492
- Material class QL240A
Technical data
- Packagin Size: 1 ST/12 ST/144 ST
- Type: EPN524
- Mounting method: DIN rail
- Number of contacts as normally open contact: 2
- Number of contacts as change-over contact: 0
- Number of contacts as normally closed contact: 0
- Width in number of modular spacings: 17.5
- Control voltage 1: 24 V
- Type of control voltage 1: AC
- Control voltage 2: 12 V
- Type of control voltage 2: DC
- Suitable for manual operation: Yes
- Supply voltage: 250 V
- Voltage type (supply voltage): AC
- Frequency control voltage 1: 50-60 Hz
- Frequency control voltage 2: 50-60 Hz
- Function: Mechanical switch
- Max. switching current (cos phi = 0.6): 16 A
- Rated switch current: 16 A
- Degree of protection (IP): IP20
- Built-in depth: 63 mm
- REACH Date: 2021-06-16
- REACH Information obligation: No
