Schneider Electric
Contactor iCT

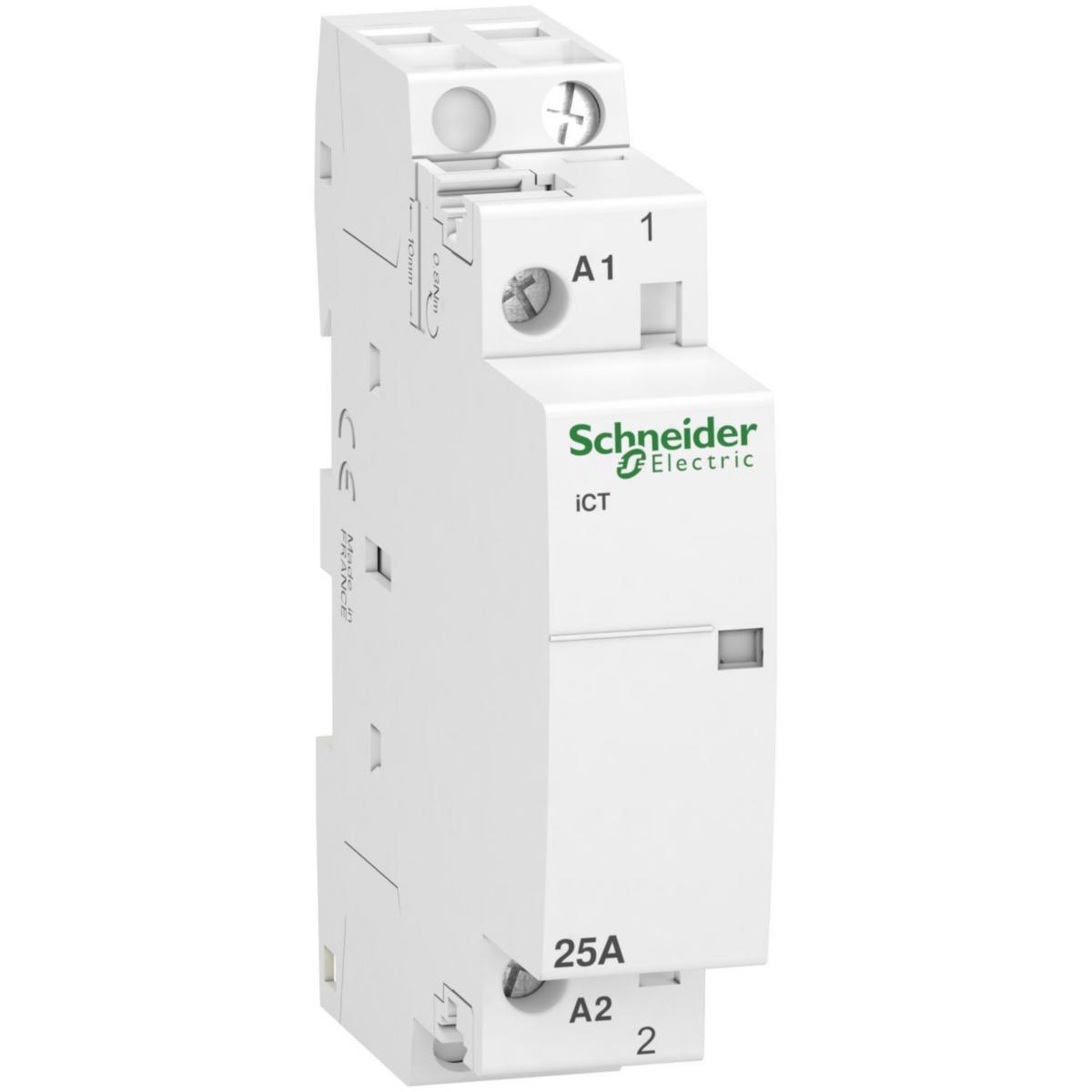

ICT 25A 1NO 240VAC CONTACTOR A9C20731
Article number: Suppl. article no:
3290400
A9C20731
to see price and stock
Available for 1-4 pole up to 100A
Flush voltage: 24 or 230/240V AC
Power circuit: Multi-wire cable, 2x2.5 mm² for 16 and 25A, 2x10 mm²
Flush voltage: 24 or 230/240V AC
Power circuit: Multi-wire cable, 2x2.5 mm² for 16 and 25A, 2x10 mm²
- Article number: 3290400
- Suppl. article no: A9C20731
- Ean no: 3606480088568
- Material class QL540A
Technical data
- Packagin Size: 1 ST/12 ST/144 ST
- Type: A9C20731
- Number of contacts as normally open contact: 1
- Number of contacts as normally closed contact: 0
- Rated excitation voltage: 230-240 V
- Rated operation current: 25 A
- Rated operating voltage: 250 V
- Voltage type (excitation voltage): AC
- Voltage type (operating voltage): AC
- Max. load fluorescent lamp: 1200 VA
- Max. load fluorescent lamp (Duo circuit): 2400 VA
- Max. load fluorescent lamp (parallel compensated): 1200 VA
- Max. incandescent lamp load: 2850 W
- Slider for hand switch: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Built-in depth: 43.5 mm
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- Utility category: 7
- GWP-tot (A1-A3): 0,5916 kgCO2e/ST
- REACH Information obligation: Yes
