Hager

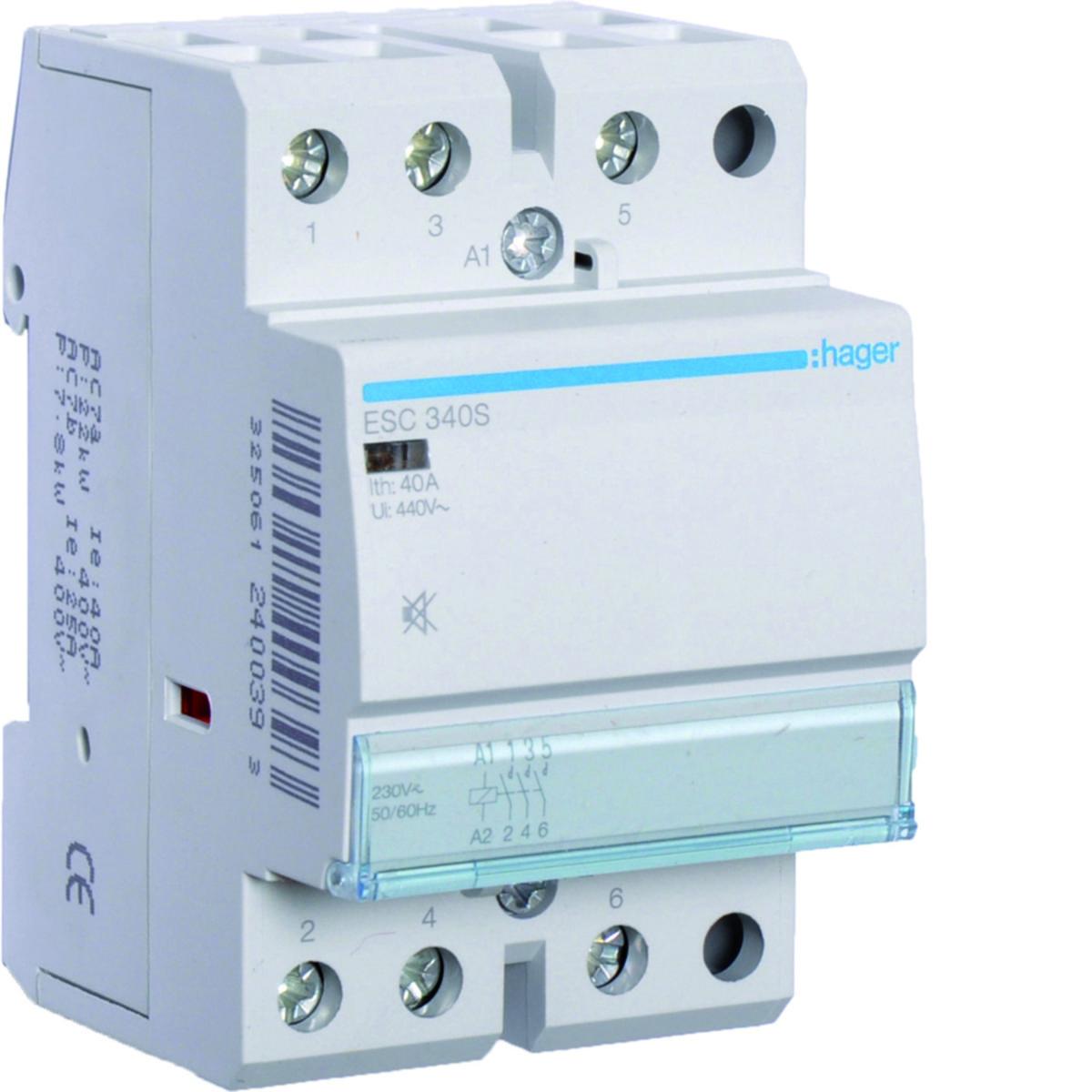

Contactor Hum-free 3-modules, Hager
HUMFR.CONTACTOR. 40A ESC340S
Article number: Suppl. article no:
3279359
ESC340S
to see price and stock
Hum-free standard contacts 3 of 4-pole 40A-63A
The contactors have a long service life of one million mechanical and 30,000 electric switches
and has a transparent cover for labelling as well as a clear contact indicator
The contactors have a long service life of one million mechanical and 30,000 electric switches
and has a transparent cover for labelling as well as a clear contact indicator
- Article number: 3279359
- Suppl. article no: ESC340S
- Ean no: 3250612400393
- Replaces art.nbr: 3294109
- Material class QL240A
Technical data
- Packagin Size: 1 ST/48 ST
- Type: ESC340S
- Number of contacts as normally open contact: 3
- Number of contacts as normally closed contact: 0
- Rated excitation voltage: 230 V
- Rated operation current: 40 A
- Rated operating voltage: 400 V
- Voltage type (excitation voltage): AC
- Voltage type (operating voltage): AC
- Max. load fluorescent lamp: 1900 VA
- Max. load fluorescent lamp (Duo circuit): 3000 VA
- Max. load fluorescent lamp (parallel compensated): 1300 VA
- Max. incandescent lamp load: 4000 W
- Slider for hand switch: No
- Degree of protection (IP): IP2X
- Additional equipment possible: Yes
- Built-in depth: 60 mm
- Connectable area soft conductor: 4-16 mm²
- REACH Date: 2022-03-11
- REACH contains candidate substances: Bly
- Utility category: 7
- REACH Information obligation: Yes
