Hager

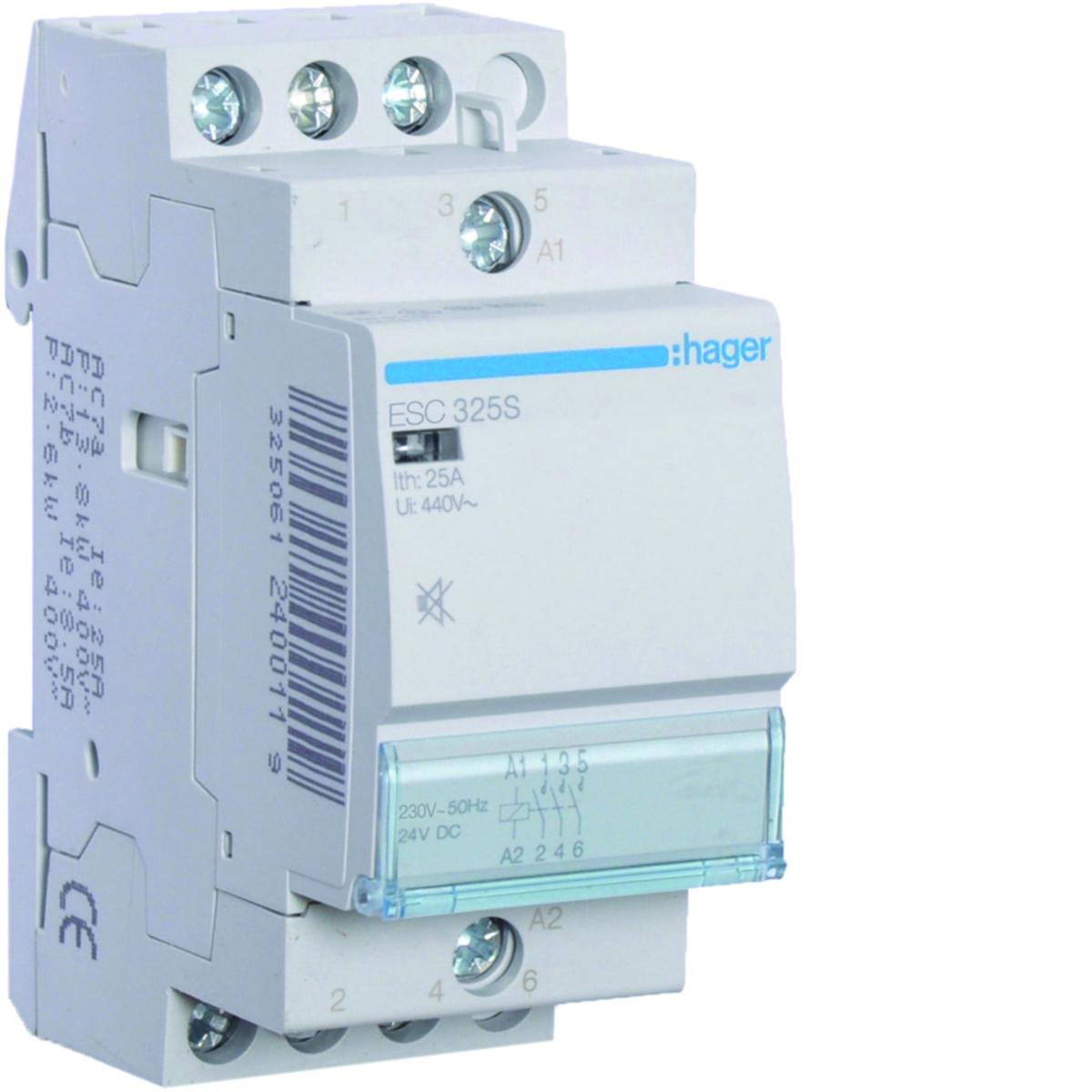

Contactor Hum-free 2-modules, Hager
CONTACTOR 3NO,25A,230VAC A9C20132
Article number: Suppl. article no:
3279350
ESC325S
to see price and stock
![Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen. Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.](/globalassets/site-images/sv_icons/step/reachinformationrequestobligation.png)
Hum-free standard contacts 3 of 4-pole 25A 2 modules
The contactors have a long service life of one million mechanical and 30,000 electric switches
and has a transparent cover for labelling as well as a clear contact indicator
The contactors have a long service life of one million mechanical and 30,000 electric switches
and has a transparent cover for labelling as well as a clear contact indicator
- Article number: 3279350
- Suppl. article no: ESC325S
- Ean no: 3250612400102
- Replaces art.nbr: 3294107 3294526
- Material class QL2400
Technical data
- Packagin Size: 1 ST/60 ST/1440 ST
- Number of contacts as normally open contact: 3
- Number of contacts as normally closed contact: 0
- Rated excitation voltage: 230 V
- Rated operation current: 25 A
- Rated operating voltage: 400 V
- Voltage type (excitation voltage): AC
- Voltage type (operating voltage): AC
- Max. load fluorescent lamp: 950 VA
- Max. load fluorescent lamp (Duo circuit): 1990 VA
- Max. load fluorescent lamp (parallel compensated): 810 VA
- Max. incandescent lamp load: 1900 W
- Slider for hand switch: No
- Degree of protection (IP): IP2X
- Additional equipment possible: Yes
- Built-in depth: 60 mm
- Connectable area soft conductor: 1-6 mm²
- Utility category: 7
- REACH contains candidate substances: Bly
- REACH Date: 2022-03-11
- REACH Information obligation: Yes
- Article number supplier: ESC325S
