Hager

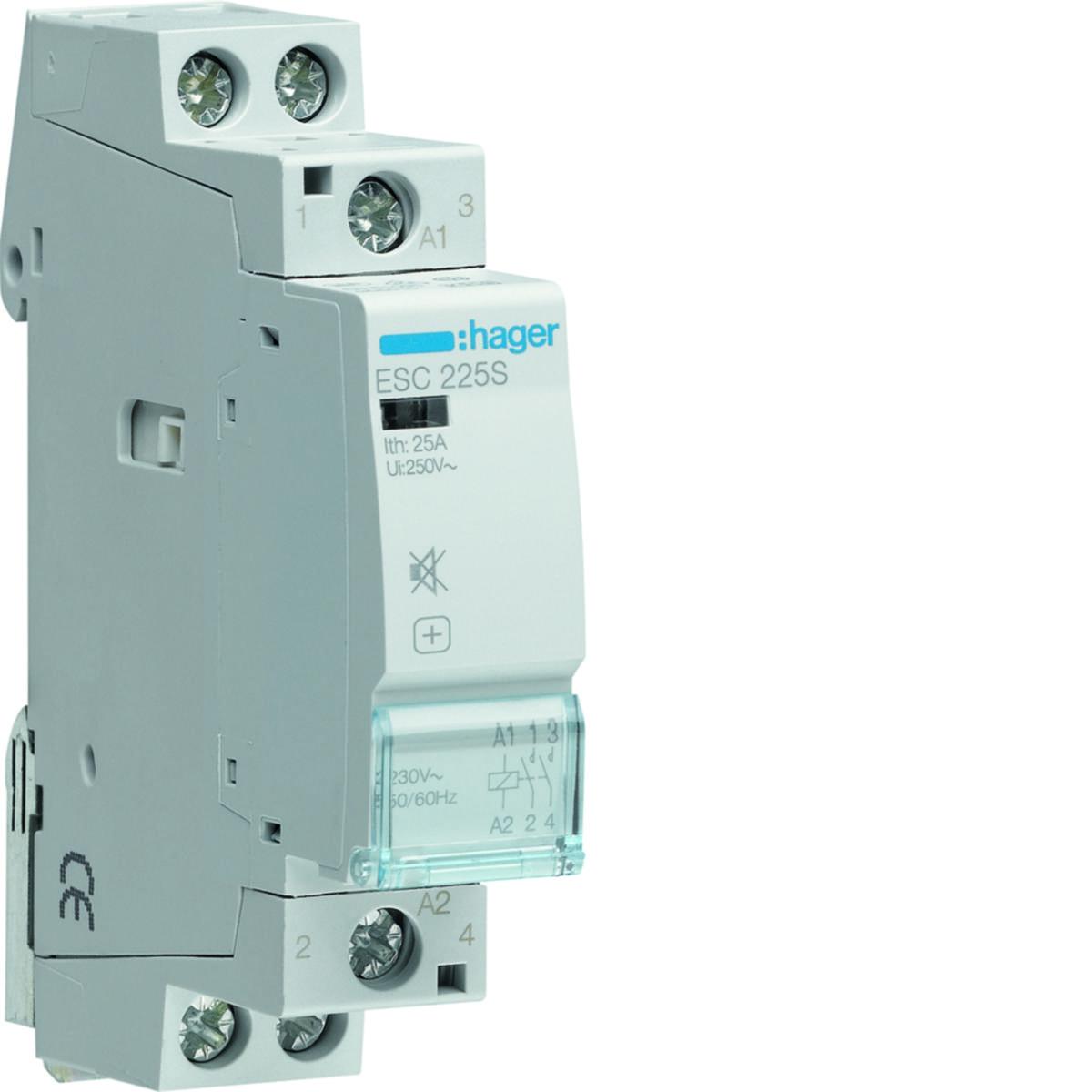

Contactor Hum-free 1-module, Hager
CONTACTOR 2-POL 25A 230V A9C20731
Article number: Suppl. article no:
3279346
ESC225S
to see price and stock
To shop with us, you need a registered company and a customer number.
Hum-free standard contacts 2-pole 25A 1 module.
The contactors have a long service life of one million mechanical and 30,000 electric switches
and has a transparent cover for labelling as well as a clear contact indicator
The contactors have a long service life of one million mechanical and 30,000 electric switches
and has a transparent cover for labelling as well as a clear contact indicator
- Article number: 3279346
- Suppl. article no: ESC225S
- Ean no: 3250612400034
- Replaces art.nbr: 3294120 3294501 3294504
- Material class QL2401
Technical data
- Packagin Size: 1 ST/108 ST
- Number of contacts as normally open contact: 2
- Number of contacts as normally closed contact: 0
- Rated excitation voltage: 230 V
- Rated operation current: 25 A
- Rated operating voltage: 230 V
- Voltage type (excitation voltage): AC
- Voltage type (operating voltage): AC
- Max. load fluorescent lamp: 950 VA
- Max. load fluorescent lamp (Duo circuit): 1990 VA
- Max. load fluorescent lamp (parallel compensated): 810 VA
- Max. incandescent lamp load: 1900 W
- Slider for hand switch: No
- Degree of protection (IP): IP2X
- Additional equipment possible: No
- Built-in depth: 60 mm
- Connectable area soft conductor: 1-6 mm²
- Utility category: 7
- REACH contains candidate substances: Bly
- REACH Date: 2022-03-11
- REACH Information obligation: Yes
- Article number supplier: ESC225S
