Schneider Electric
Standard contactors GC AC controlled

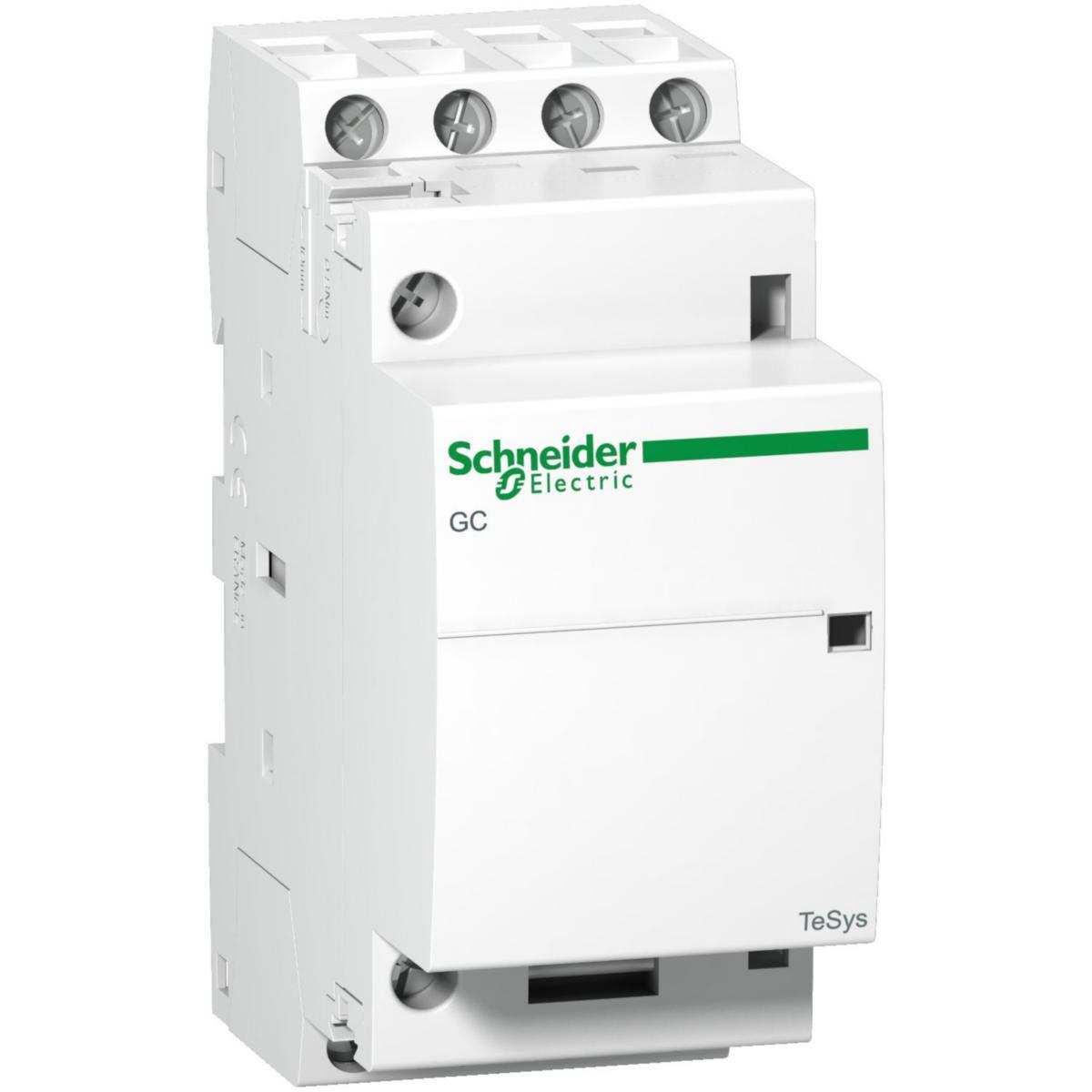

Contactor 25A 4NO 220..240V GC2540M5
Article number: Suppl. article no:
3231918
GC2540M5
to see price and stock
Hum-free standard contactor for snap fastening on 35 mm rail. Control voltage, 220/240 V 50 Hz (coil M5)
- Article number: 3231918
- Suppl. article no: GC2540M5
- Ean no: 3389110641523
- Material class QO360B
Technical data
- Packagin Size: 1 PCS/6 PCS/72 PCS
- Type: GC2540M5
- Number of contacts as normally open contact: 4
- Number of contacts as normally closed contact: 0
- Rated excitation voltage: 220-240 V
- Rated operation current: 25 A
- Rated operating voltage: 0-415 V
- Voltage type (excitation voltage): AC
- Voltage type (operating voltage): AC
- Max. load fluorescent lamp: 1000 VA
- Max. load fluorescent lamp (Duo circuit): 1200 VA
- Max. load fluorescent lamp (parallel compensated): 800 VA
- Max. incandescent lamp load: 2800 W
- Slider for hand switch: No
- Degree of protection (IP): IP20
- Additional equipment possible: Yes
- Built-in depth: 62.5 mm
- REACH Date: 2022-07-20
- REACH contains candidate substances: 1,2-dimetoxietan, Dimethyl Glycol, 1,2-dimethoxyethane
- Utility category: 7
- REACH Information obligation: Yes
