Hager

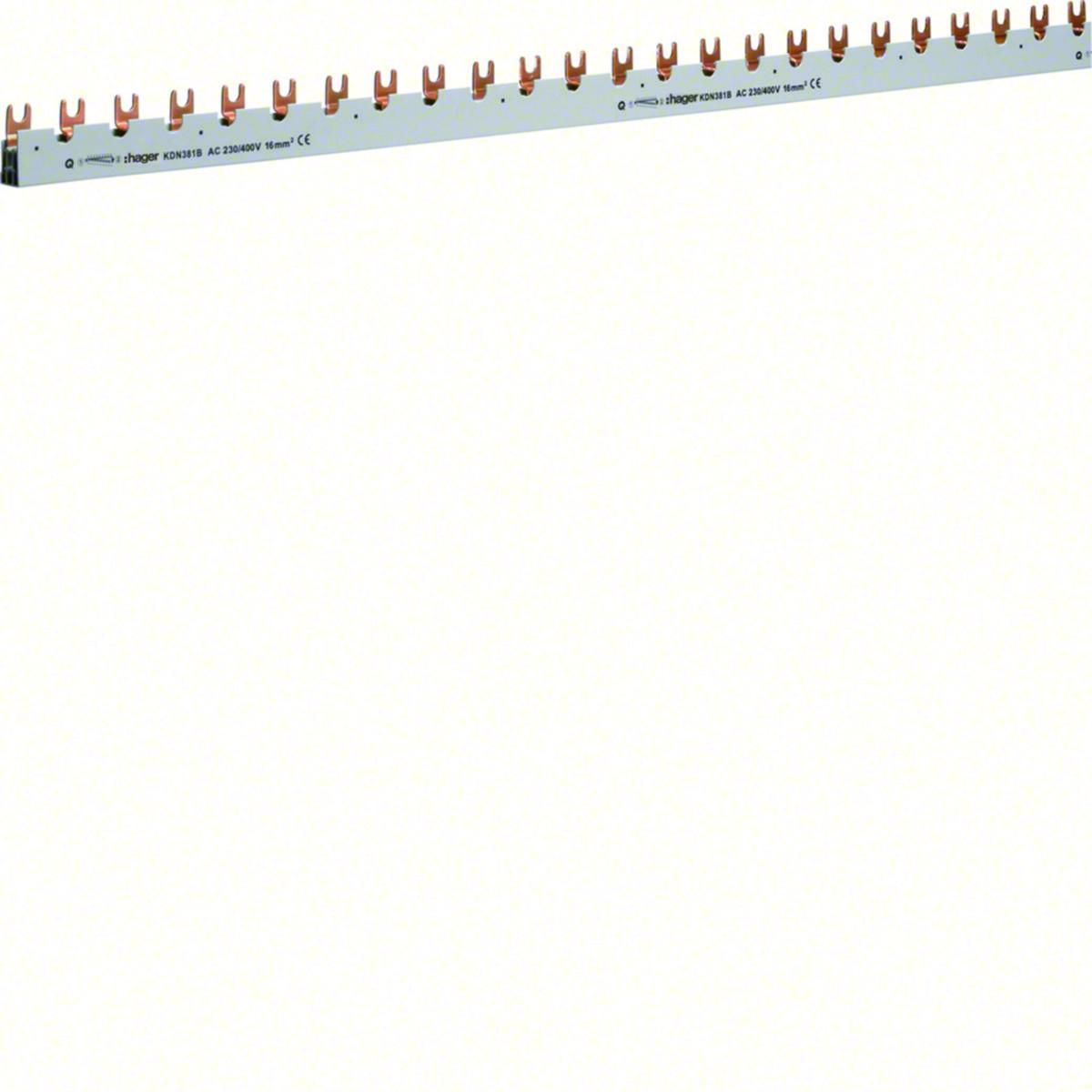

Phase rails KDN with space for auxiliary switches
INSULATED BUSBAR 3P 80A FORK 1 KDN381B FÖR 1 POL D.BR.
Article number: Suppl. article no:
2108591
KDN381B
to see price and stock
To shop with us, you need a registered company and a customer number.
For supply of ground fault switches, surge protector, or mini breaker. Available as 1 or 3-phase rail, and as a 1 or 3-pin mini breaker with auxiliary contact.
The phase rail should be cut, not sawed, and must be fitted with an end piece.
The phase rail should be cut, not sawed, and must be fitted with an end piece.
- Article number: 2108591
- Suppl. article no: KDN381B
- Ean no: 3250613741280
- Material class QL240A
Technical data
- Packagin Size: 1 ST/10 ST
- Type: KDN381B
- Number of phases: 3
- Number of poles: 3
- Width in number of modular spacings: 57
- Cross section: 16 mm²
- Rated permanent current Iu: 80 A
- Max. rated operation voltage Ue: 400 V
- Type of electric connection: Fork
- Length: 1000 mm
- Suitable for number of devices: 14
- Suitable for devices with N-conductor: No
- Suitable for devices with auxiliary switch: Yes
- Rated surge voltage: 4 kV
- Module width: 17.8 mm
- Insulated: Yes
- Colour: Grey
- Can be cut to size: Yes
- REACH Date: 2021-06-16
- REACH Information obligation: No
- Design: 3-pole phase rail for 1-pole miniature circuit breaker with help/signal contact on 1/2 module
