Garo

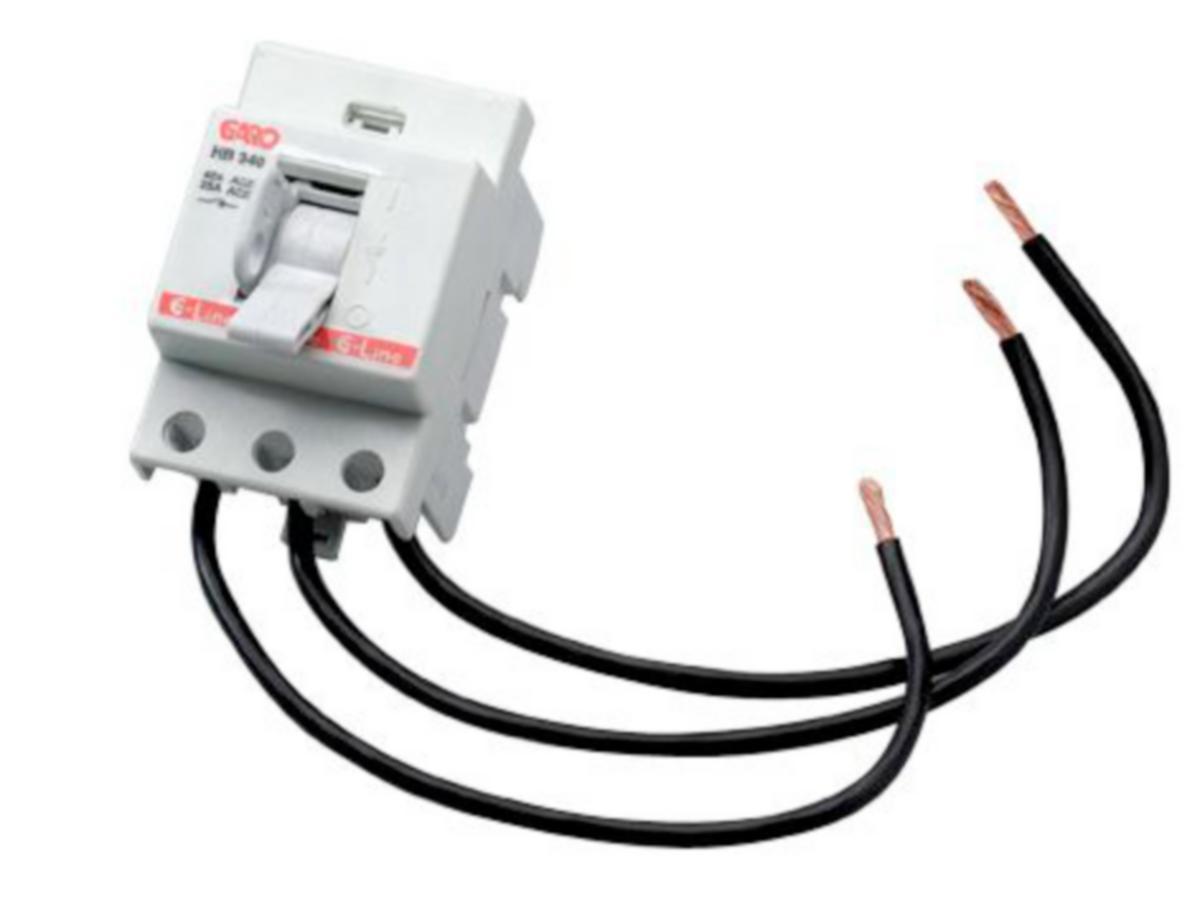

Main switch for DIN assembly, Garo
MAIN SW MODULAR 3P 40A W CABEL 40A 3-POL WITH CABLE
Artikelnummer: Lev. artikelnr:
2142853
2142853
för att se saldo och pris
Lock-break switch type HB, is mounted directly on the DIN rail.
Connection options Load break switch for DIN mounting
Connection options Load break switch for DIN mounting
- Article number: 2142853
- Suppl. article no: 2142853
- Ean no: 7331185046280
- Material class QL4000
Teknisk data
- Type: HBK 340, incl. cable*
- Number of poles: 3
- Width in number of modular spacings: 3
- Rated permanent current Iu: 40 A
- Rated operation power at AC-23, 400 V: 15 kW
- Version as main switch: Yes
- Version as safety switch: No
- With pre-assembled cabling: Yes
- Type of control element: Rocker
- Version as maintenance-/service switch: Yes
- Device construction: Built-in device fixed built-in technique
- Type of electrical connection of main circuit: Screw connection
- Interlockable: Yes
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: No
- Suitable for floor mounting: No
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Max. rated operation voltage Ue AC: 690 V
- Motor drive optional: No
- Degree of protection (IP), front side: IP20
- Voltage release optional: No
- Number of auxiliary contacts as normally open contact: 0
- Number of auxiliary contacts as change-over contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Version as emergency stop installation: No
- Conditioned rated short-circuit current Iq: 50 kA
- Motor drive integrated: No
- Colour control element: White
- Rated short-time withstand current lcw: 1.7 kA
- Rated permanent current at AC-21, 400 V: 63 A
- Rated permanent current at AC-23, 400 V: 25 A
- Rated operating voltage: 230-690 V
- Rated operation power at AC-3, 400 V: 0 kW
- Switching power at 400 V: 0 kW
- Degree of protection (NEMA): Other
- Number of switches: 0
- REACH Date: 2021-06-15
- REACH Information obligation: No
