Hager

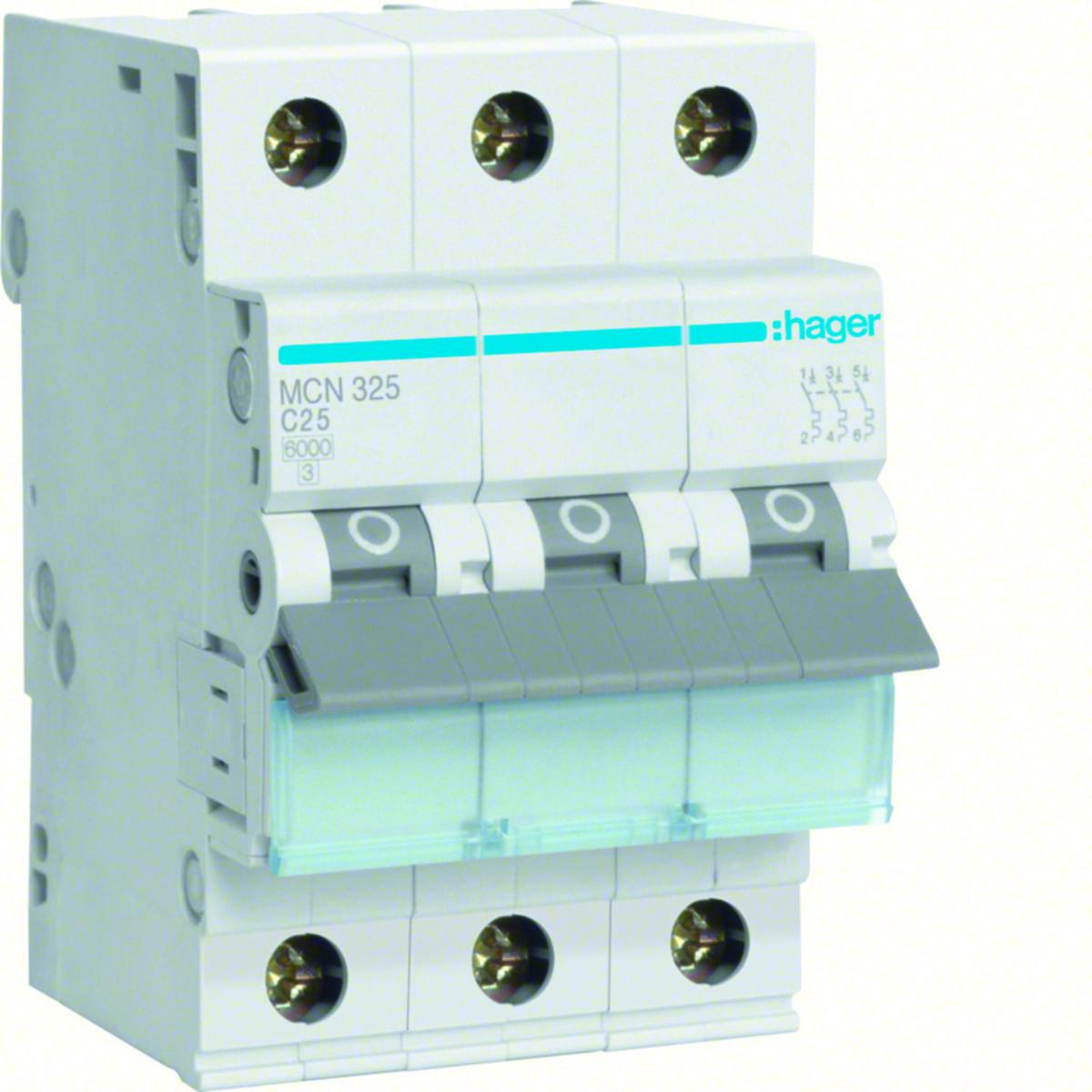

Miniature circuit breaker 3-pole type C 6kA
MCB 3P 6KA C-25A 3M MCN325
Article number: Suppl. article no:
2106305
MCN325
to see price and stock
HAGER miniature circuit breakers meet the required safe disconnection if they are supplemented with intended locking device.
- Article number: 2106305
- Suppl. article no: MCN325
- Ean no: 3250614311475
- Material class QL2401
Technical data
- Packagin Size: 1 ST/4 ST/48 ST/1152 ST
- Type: MCN325
- Rated current: 25 A
- Number of poles (total): 3
- Width in number of modular spacings: 3
- Release characteristic: C
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: 6 kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
- Rated voltage: 400 V
- Voltage type: AC
- Number of protected poles: 3
- Degree of protection (IP): IP20
- Frequency: 50-60 Hz
- Concurrently switching neutral conductor: No
- Current limiting class: 3
- Additional equipment possible: Yes
- Overvoltage category: 3
- Pollution degree: 2
- Connectable conductor cross section solid-core: 1-35 mm²
- Connectable conductor cross section multi-wired: 1-25 mm²
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 500 V
- Ambient temperature during operating: -25-70 °C
- Explosion-proof: No
- Flush-mounted installation: Yes
- Power loss: 10.1 W
- Built-in depth: 70 mm
- REACH Date: 2024-11-24
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
