Hager

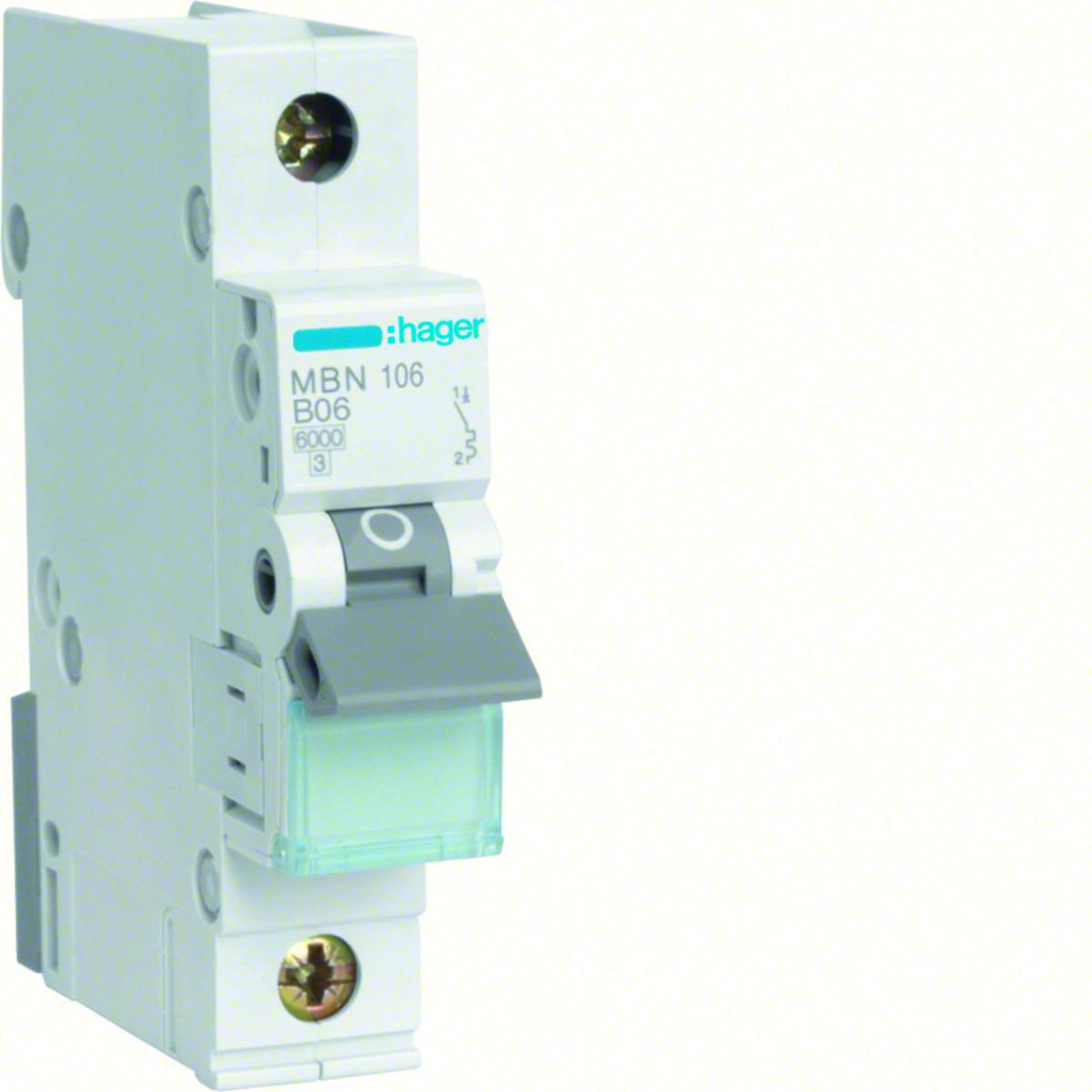

Miniature circuit breaker 1-pole type B 6kA
MCB 1P 6KA B-6A 1M MBN106
Article number: Suppl. article no:
2106101
MBN106
to see price and stock
For reliable protection of cables and wires against overload and short circuits, 1-3 pole miniature circuit breakers from Hager are used. The miniature switches are available with B and C characteristics and are selected according to area of use. Accessories such as auxiliary contacts, signal contacts, shunt triggers and undervoltage triggers are mounted without tools on the miniature switch.
- Article number: 2106101
- Suppl. article no: MBN106
- Ean no: 3250614310065
- Material class QL240A
Technical data
- Packagin Size: 1 ST/12 ST/144 ST/3456 ST
- Type: MBN106
- Rated current: 6 A
- Number of poles (total): 1
- Width in number of modular spacings: 1
- Release characteristic: B
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: 10 kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: 6 kA
- Rated voltage: 400 V
- Voltage type: AC
- Number of protected poles: 1
- Degree of protection (IP): IP20
- Frequency: 50-60 Hz
- Concurrently switching neutral conductor: No
- Current limiting class: 3
- Additional equipment possible: No
- Overvoltage category: 3
- Pollution degree: 2
- Connectable conductor cross section solid-core: 1-35 mm²
- Connectable conductor cross section multi-wired: 1-25 mm²
- Rated impulse withstand voltage Uimp: 4 kV
- Rated insulation voltage Ui: 500 V
- Ambient temperature during operating: -25-70 °C
- Explosion-proof: No
- Flush-mounted installation: Yes
- Built-in depth: 70 mm
- REACH Date: 2022-01-31
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
