ABB

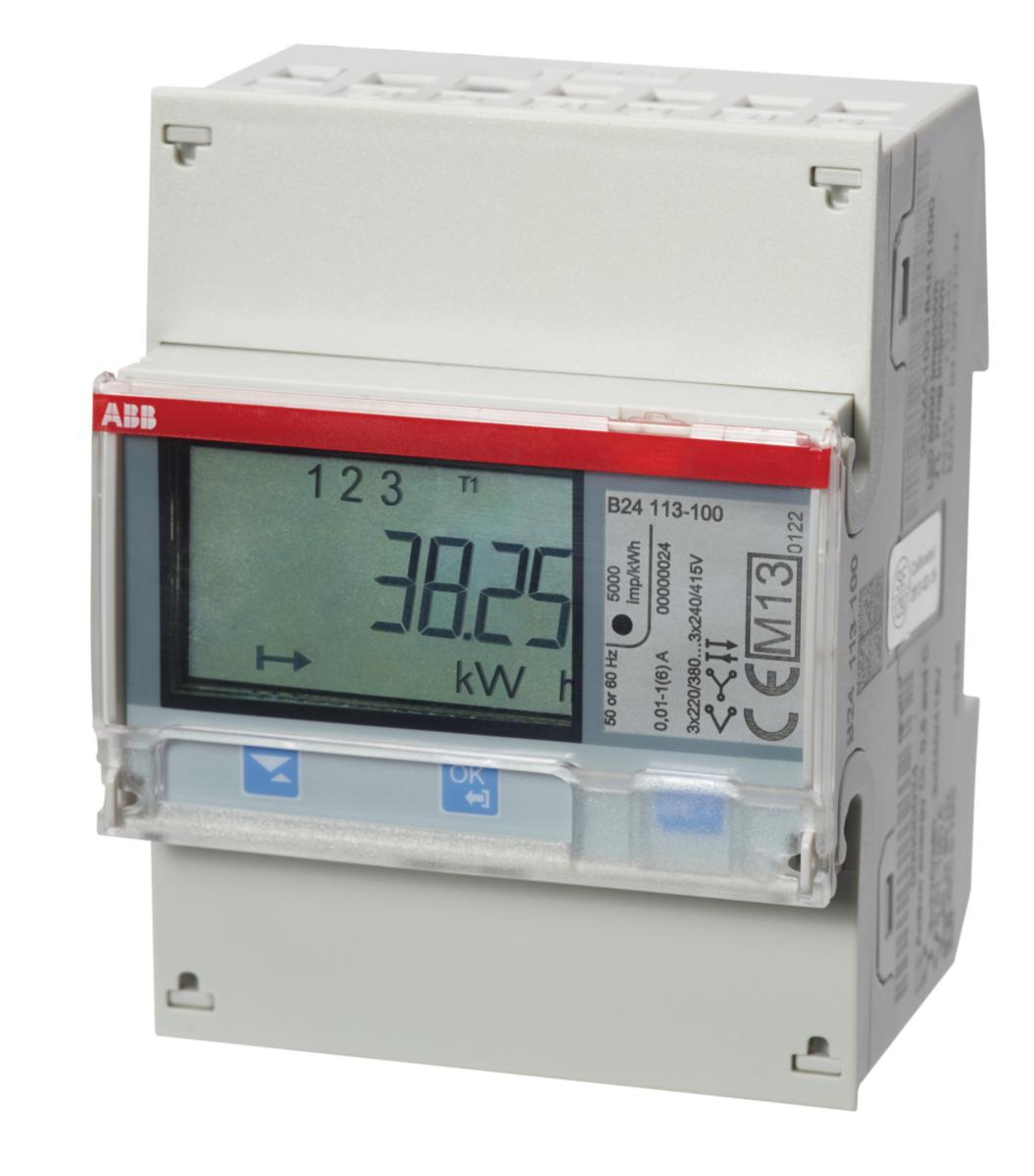

Electric meter EQ B-series three-phase
KWH METER B24 113-100 B24 113–100
Article number: Suppl. article no:
0900046
2CMA100179R1000
to see price and stock
Electric meter for distribution/sub-metering from ABB. The B range consists of several different meters to meet the needs of different customers for reliable measurement values. All EQ meters in the B range have instrument values and the option of reading these on the display or connecting them to the threshold value, which can then be indicated at an output. The functionality of the EQ meters is divided into 5 different groups named from Steel up to Platinum, of which the B-series extends between Steel and Silver. The latest have the highest functionality. All B series meters are MID approved in accordance with Annexes B and D. The EQ series B meters are only two modules wide for single phase and four modules wide for three-phase.
- Article number: 0900046
- Suppl. article no: 2CMA100179R1000
- Ean no: 7392696001793
- Material class QF2010
Technical data
- Type: B24 113-100
- Design: Pulse/Alarm output
- Model: Measurement transformer
- Type of interface: M-bus (wired)
- Nominal voltage (Un) L-L: 400 V
- Pole type: Four conductor
- Tariff type: One-tariff
- Suitable for: Purchase
- Approval: Measuring Instruments Directive
- Accuracy class: B
- Frequency: 47.5-63 Hz
- Type of meter: Electronic
- Width in number of modular spacings: 4
- Energy type: Effective power
- Pulse output: Electrical
- Pulse type: S0
- Number of positions total (counter): 7
- Degree of protection (IP): IP20
- Type of indication: Digital
- EEC40 signature: No
- Escapement mechanism: Yes
- Mounting method: DRA (DIN-rail adaptor)
- Pulse rate: 1-9999 Imp/kWh (kvarh)
- With lock code: No
- Calibrated: Yes
- Max. current (Imax): 6 A
- Nominal current (In): 6 A
- Measurement type load profile: No
- Width: 70 mm
- Depth: 65 mm
- Height: 26.5 mm
- REACH Date: 2021-04-30
- REACH Information obligation: No
